Atlas Copco Oil-Injected Rotary Screw Compressors Oil Cooler Ga160
Basic Info.
| Model NO. | GA250 |
| Certification | CE, ISO, RoHS |
| Application | Heater, Cooler |
| Principle | Partioning Heat Exchanger |
| Style | Cast-In Type |
| Material | Copper |
| Heat Exchanger Type | Bare Tube Type |
| Maintanance Means | Removable Tube Bundle |
| Working Mediums |
|
| Materials | Copper Tubes, Copper Tubesheet |
| Transport Package | Seaworthy Wooden Box |
| Specification | 0.3m³/PC |
| Trademark | Hylita Thermo |
| Origin | China |
| HS Code | 841990 |
| Production Capacity | 10000 |
Product Description

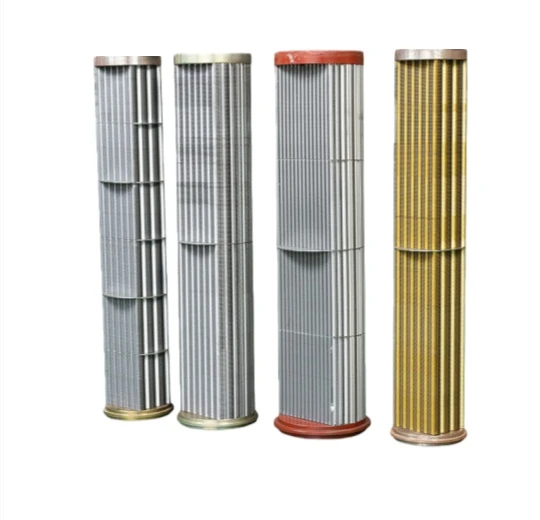

High-performance air compressor oil cooler(heat exchanger)
Our high-performance air compressor oil cooler(heat exchanger) is engineered for durability, efficiency, and versatility in air compressors,gas compressors,air expanders,air seperation equipments,air dryers,etc.Designed with advanced technology,testing data and robust materials, this cooler ensures superior cooling effection,and power efficiency. Suitable for different industry applications, it delivers exceptional performance in diverse working conditions.
Specification
GA seriesis classified into GA55, GA75, GA90, GA110, GA132, GA160, GA250, GA315, GA355, GA400.
Applications in different industries
Mining: Operation in the tough conditions
Compressed air is vital for the mining industry. Uses include dust bag filtration, service air, ventilation air and powering pneumatic tools. The reliability and robustness of GA compressors will accomplish the job even in the harshest conditions.
Power plants:Reliable and dependable
Power plants run round-the-clock to supply vital energy with a continuous supply of compressed air, critical for trouble-free operation. GA compressors provide a reliable source of compressed air for applications such as soot blowing and fly ash handling.
Metal plants:Ultimate efficiency
Metal plants use compressed air for instrumentation, plant air and pneumatic conveying of raw materials or ash. Metal plants are in need of an efficient solution to reduce their operating costs and to meet environmental targets. Our GA air compressors are designed to meet this demand.
Cement industry:Easy to maintain and service
Cement works are one of the biggest consumers for compressed air with the vast majority of air used for transporting raw materials within the factory. If moisture, dust, or other contaminants are present in the environment it can impair compressor performance, resulting in excess energy consumption and maintenance costs. GA compressor not only have an IP66 rated drive train that prevents contaminants from entering the compressor, they are also easy to maintain and service with a grouped service area and slide out coolers.
Key Configurations
Tubes: contains flowing water which will take away heat from hot air or gasfins: the key element to enlarge heat transfer areas and improve heat transfer efficiency exponentially;
Tube sheets: front tube sheet and back tubesheet which passed through tubes, and strengthen the tube bundle in whole one part;
Shell: the key part for installing tube bundles, and seperate air passes and water passes.
Materials for choices:
tubesheets: carbon steel, SS, or copper
tubes: SS(stainless steel), copper, or alloy tubes
fins: copper, aluminium, SS or alloy fins;
shell: carbon steel or SS
Technical Specifications
(Custom configurations available upon request.)
|
TYPE |
Maximum working pressure |
Capacity FAD(1) |
Installed motor power |
|||||
|
Standard |
Full Feature (3) |
Standard / Full Feature (3) |
||||||
|
bar(e) |
psig |
bar(e) |
psig |
1/s |
m/min |
cfm |
||
|
GA 90+ -5.5 bar |
5.5 |
80 |
5.3 |
77 |
353 |
21.2 |
748 |
90 |
|
GA90+-7.5 bar |
7.5 |
109 |
7.3 |
106 |
297 |
17.8 |
629 |
|
|
GA 90+-8.5 bar |
8.5 |
123 |
8.3 |
120 |
284 |
170 |
602 |
|
|
GA 90+-10 bar |
10 |
145 |
9.8 |
142 |
260 |
15.6 |
551 |
|
|
GA 110-5.5 bar |
5.5 |
80 |
5.3 |
77 |
424 |
25.4 |
898 |
110 |
|
GA 110-7.5 bar |
75 |
109 |
7.3 |
106 |
370 |
22.2 |
784 |
|
|
GA 110-8.5 bar |
8.5 |
123 |
8.3 |
120 |
347 |
20.8 |
735 |
|
|
GA 110-10 bar |
10 |
145 |
9.8 |
142 |
316 |
19.0 |
670 |
|
|
GA 132-5.5 bar |
5.5 |
80 |
5.3 |
77 |
502 |
30.1 |
1064 |
132 |
|
GA 132-7.5 bar |
7.5 |
109 |
7.3 |
106 |
440 |
26.4 |
932 |
|
|
GA 132-8.5 bar |
8.5 |
123 |
8.3 |
120 |
414 |
24.8 |
877 |
|
|
GA 132-10 bar |
10 |
145 |
9.8 |
142 |
382 |
22.9 |
809 |
|
|
GA 160-7.5 bar |
7.5 |
109 |
7.3 |
106 |
525 |
31.5 |
1112 |
160 |
|
GA 160-8.5 bar |
8.5 |
123 |
8.3 |
120 |
495 |
29.7 |
1049 |
|
|
GA 160-10 bar |
10 |
145 |
9.8 |
142 |
460 |
276 |
975 |
|
Drawings & Dimensions
Oil cooler and air cooler layout in the system
Detailed CAD drawings and dimensional diagrams are available for downloadhereor upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
- Standard Warranty: 12 months since operating or 18 month after delivery (whichever comes first).
- Extended Warranty: Optional coverage up to 36 months.
- Service Support: 24/7 technical assistance and spare parts supply.
- Training: On-site or remote operation/maintenance training.
Company Profile
Shenzhen Hylita Heat Exchanger Co.,Ltd
Shenzhen Hylita Heat Exchanger Co.,Ltd is a professional heat exchanger manufacturer, specialized in air coolers and oil coolers suitalble for big brand air compressors, such as Atlas Copco, Ingersoll Rand,Cameron, IHI-sullair, Samsung(Hanwha), FS-Elliott,CompAir, SeAH, Hitachi, kobelco,etc.
Besides, we can also design and fabricate specific heat exchangers basing on customer requests, providing with certificate such as PED, ASME, CU-TR, DOSH, IBR and MOM, backed by R&D innovation and strict quality control. Our products are widely applied in air compressors,air separation equipments, air/gas purification equipments and compressor waste heat recovery systems.
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Heat exchanger for process gas compressor
Water cooler for refrigerant dryer
Ship engine intercooler(air cooler, oil cooler)
Power plant air cooler,oil cooler
heat exchanger for waste heat recovery plant/system
