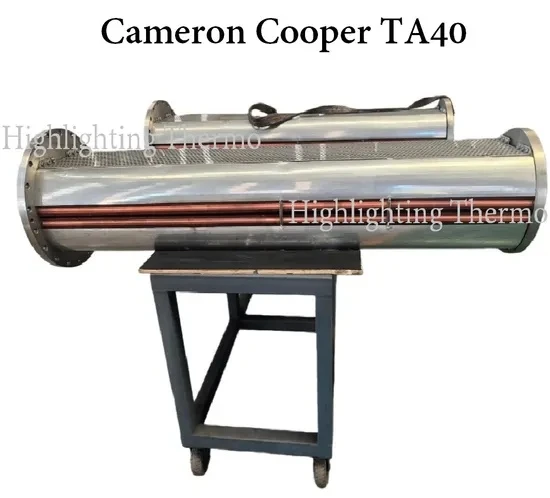

Cameron Cooper Joy Ta35 Ta38 Ta40 Air Cooler Intercooler Aftercooler
Basic Info.
|
Heat Exchanger Type |
Tube-Shell Type |
|
Trademark |
Hylita Thermo |
|
Gross Weight |
560kg |
|
Material |
Copper, Aluminum, Stainless Steel, Carbon Steel |
|
Medium |
Between Hot Air/Gas and Cold Water |
|
Production Capacity |
5000 |
|
Style |
Cast-In Type |
|
Package Size |
1.8 |
|
HS Code |
841990 |
|
Origin |
China |
|
Application |
Cooler |
|
Principle |
Cold Water to Cooler Hot Air |
|
Materials |
Materialscopper Tubes, Aluminum Fins or Copper Fin |
|
Manufacture Code |
ASME or China Standard |
|

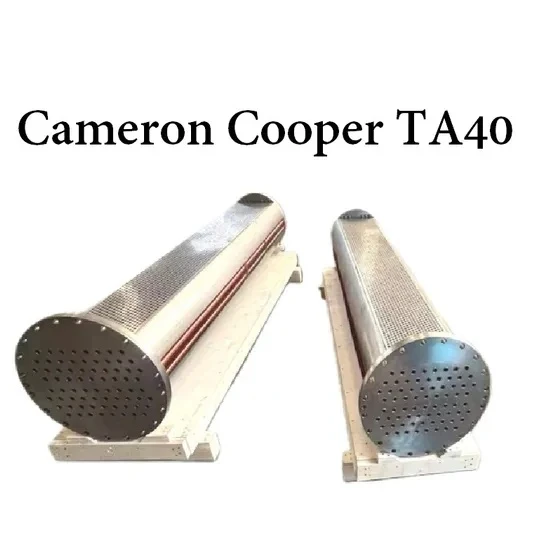

Model NO. |
Cameron Cooper TA40 |
|
Maintanance |
Removable Bundle and Clean |
|
Certification |
CE, ISO, RoHS, ASME, Cutr |
|
Transport Package |
Seaworthy Wooden Box |
|
Specification |
1.8M3 |
Product Description

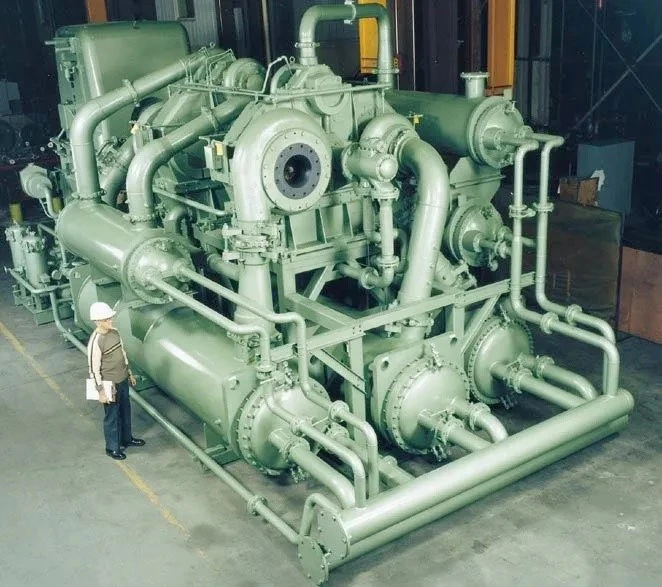

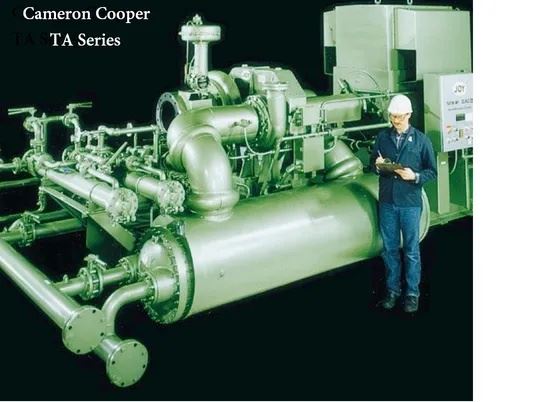

CAMERON(Cooper, Joy)centrifugal compressors are designed for applications where reliability, productivity and efficiency are essentialto getting the job done right..and the compressor's packaged design makes it easy to install wherever needed.
RELIABILITY
Superior Design, Superior Life
Fewer moving parts means less downtime
Dynamically balanced rotor assembliesensure extremely low vibration
Carbon ring seals minimise air leakage
Lowers cost of ownership
EFFICIENCY
Optimised Components and Systems
Multi-stage compressors combine performance withenergy savings
Advanced impeller design provides maximumpressure control over the widest operating rangeReduces energy use and operating costs
PRODUCTIVITY
User-Friendly Operation andAccessibility
Easy-access components make maintenancefaster and easier
Simplified compressor design provides longerintervals between maintenance
Oil-Free, Risk Free
The first to be certified ls0 8573-1:2001 Class 0, ouroil-free centrifugal compressors offer efficient, economicaland reliable solutions for delivering compressed air.These high-performing, versatile compressors provide100% oil-free air in all operating conditions.

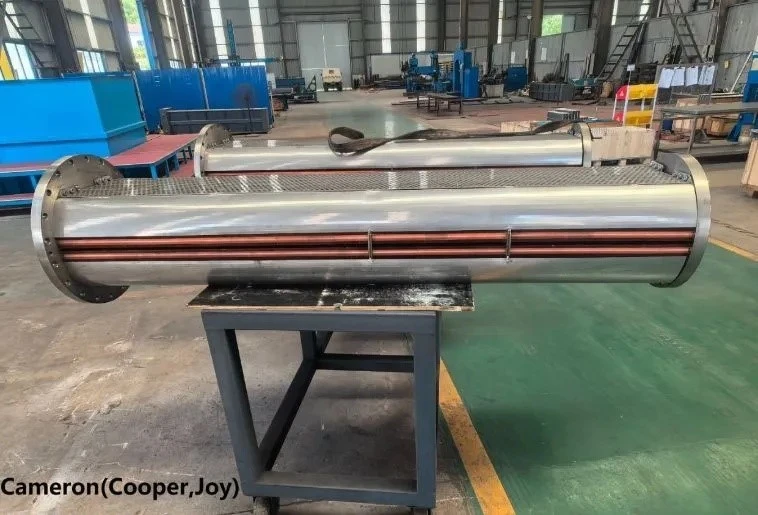

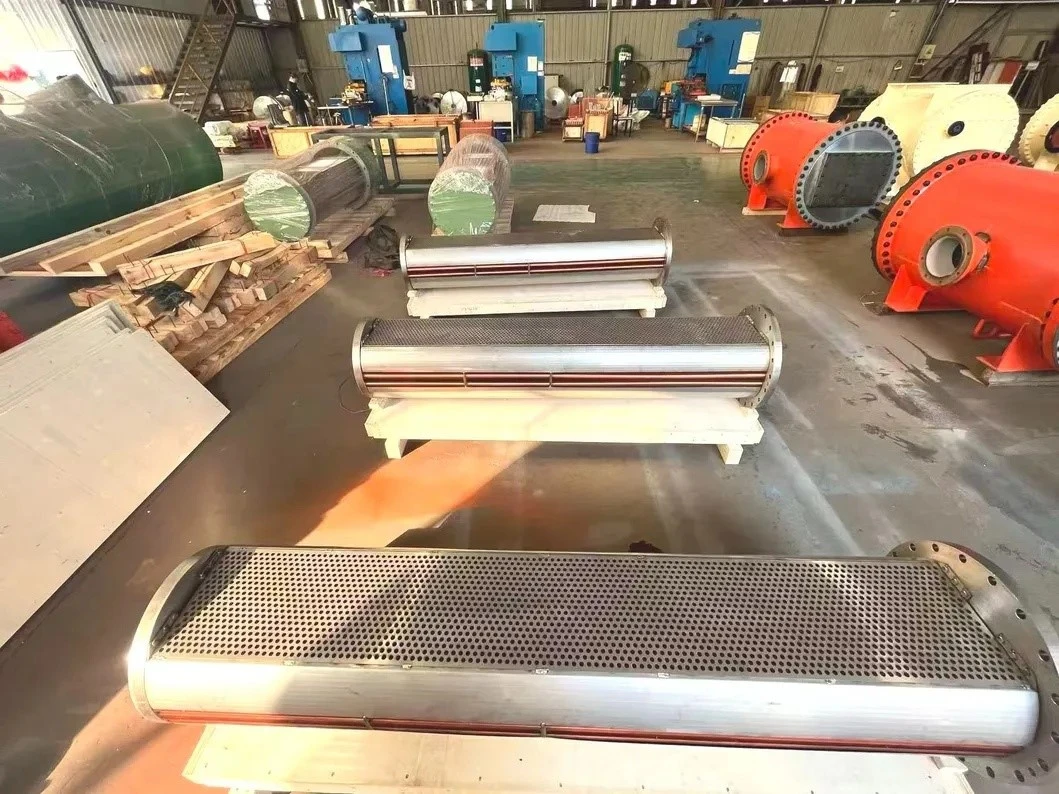

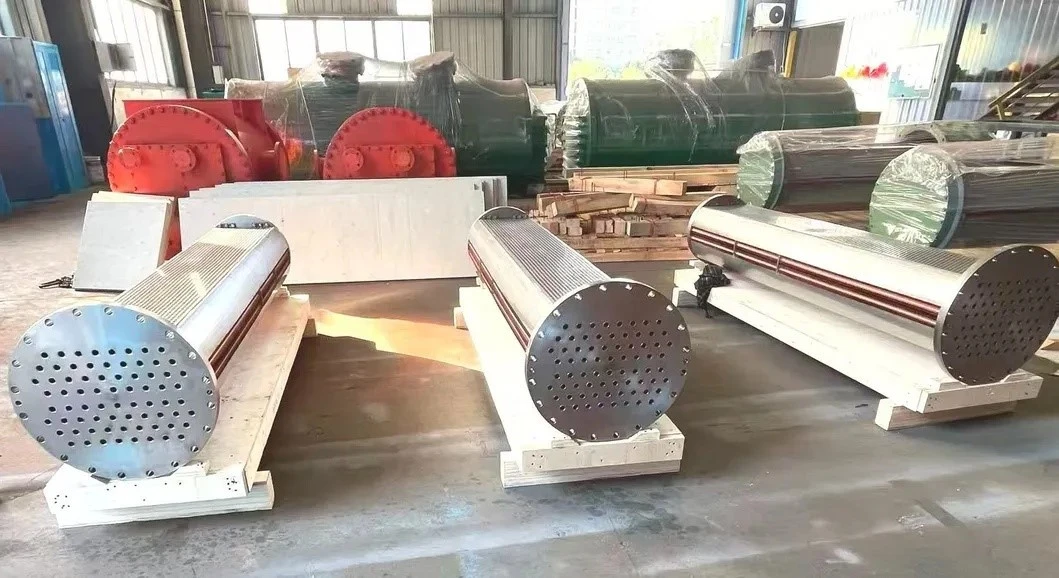

Cooper Turbocompressor intercoolers guarantee maximum heat transfer

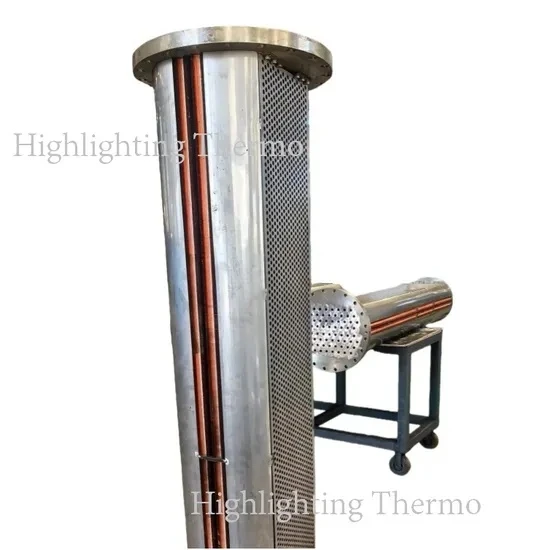

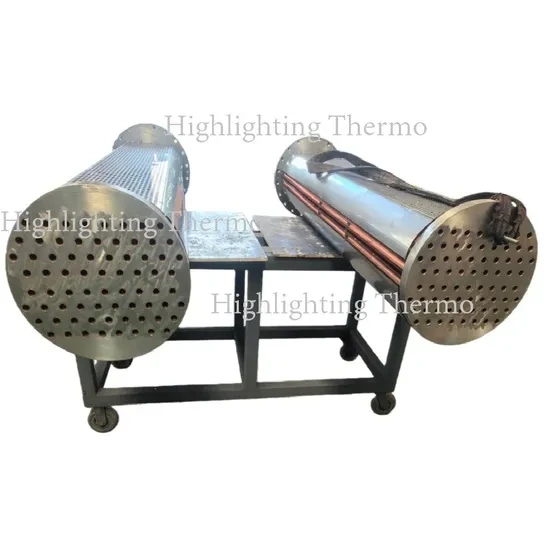

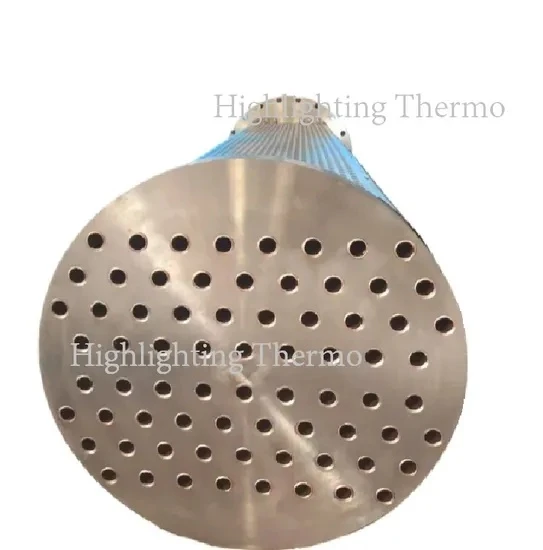

ASME-coded intercoolers provide efficient cooling between stages. The air-in-shell, water-in-tube design puts the water where cleaning is easy, an importantconsideration in areas with poor water conditions. The extended suiface, plate-fin design provides maximumheat transfer with minimum space requiements.Entrained moisture is separated by the extended fins and changing air flow direction at low velocity.The exclusive Cooper Turbo compressor designmakes intercoolers more accessible for inspection andcleaning. Smooth bore tubes are easily rodded withbundles in place.
No disassembly of any other part of the compressor is required to perfomm maintenance on the intercoolers. Standard materials are copper or admiralty brass tubeswith aluminum fins.
Special materials are available for tubes and tubesheets where bad water or special conditions dictate. Where contaminated air is a problem, special materialsand coatings are available for fins and shells. Water consummption requirements can be tailored to customerneeds, using either cooling tower or municipal water.
