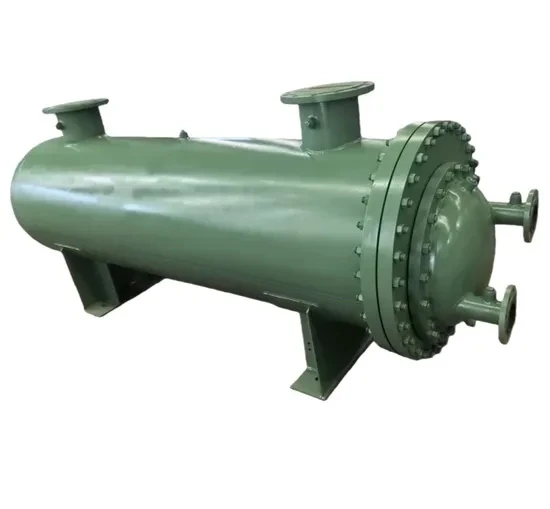

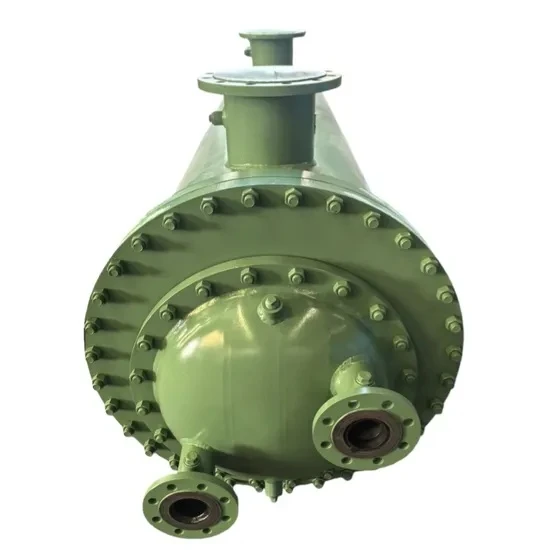

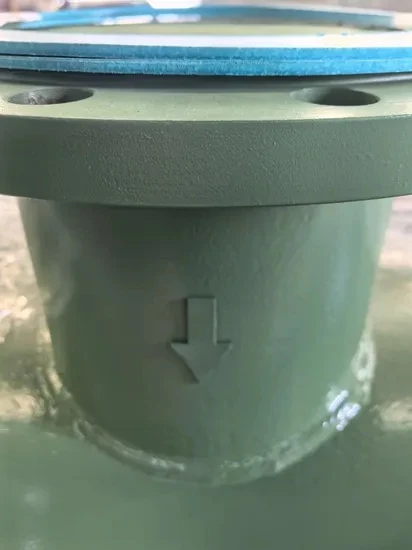

Cameron Cooper Nx8000 After Cooler Intercooler Air Cooler Water Cooler

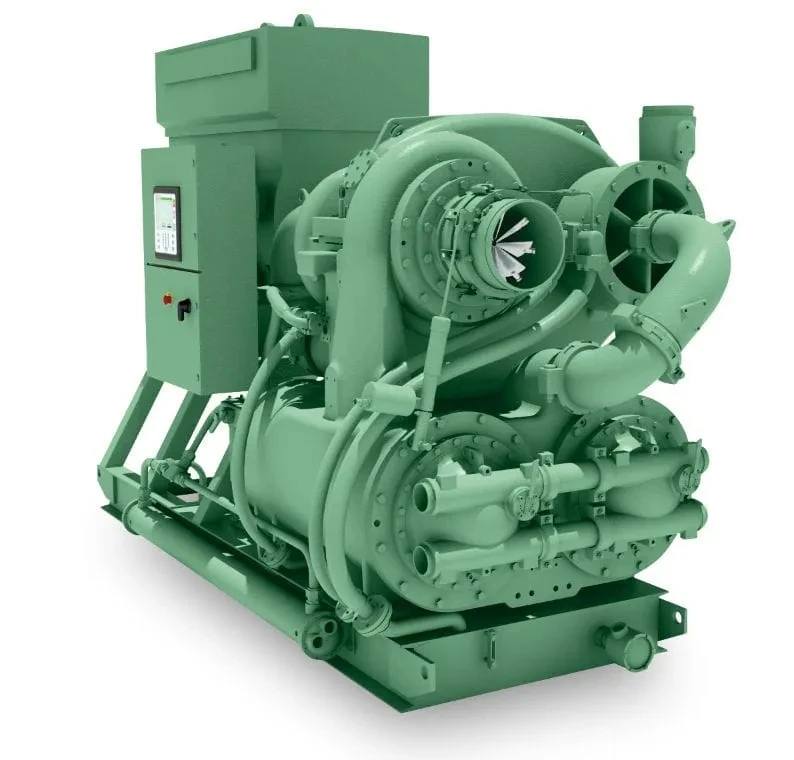

From installation throughout the entire lifecycle of the compressor, Ingersoll Rand's MSG TURBO-AIR NX series centrifugal compressor is designed to meet your needs with industry-leading features, including:

Highly efficient aerodynamic components (inlets, impellers, scrolls and diffusers) combined with low mechanical losses and power conserving inlet throttle control (IGV) provide up to 5% better specific power than competitive models.Integrated structural base provides a foundation for the main driver and serves as a support platform for the side-mounted lube system/reservoir Side-mounted lube reservoir with top-mounted components and standard duplex filters ease maintenance requirements and provide continuous, uninterrupted operation. Gearbox inspection covers offer simple accessibility for quick field inspection and onsite assessment of rotating assembly health. Split pinion bearing and seal design allows for easy onsite inspection. Next generation intercoolers are optimized for specific flow and pressure requirements and include a straight tube design that is roddable-in-placeEasily accessible dual condensate connections (two connections for each cooler) simplifies maintenance and reduces onsite piping and installation OEM-optimized cast-in water manifold, with provisions for optional patent-pending integral trim valves all tied together at a single-point customer water connection Expertly optimized stage and gas passages utilizing computational fluid dynamics (CFD)

NX SERIES AIR COMPRESSORSOTHER COMPRESSORS Compression elements do not wear or require periodicreplacement

Oil filter elements are easily replaced

Bearings designed for extended lifeRequire regular maintenance and periodic replacementof air ends

Result in high operating expenses and significant machinedowntime100% oil-free per 150 8573-1 certification

Prevent contamination of systemContacting compression elements are subject to wearLimited rotating element life

Designed-in wearng items to generate aftermarket revenuesCentrifugal compressors are proven to have a long meantime between failures (MTBF), and independent researchhas shown an industry-leading availability of 99.7%

Conservative high-quality gear designContacting compression elements are subject to wear

Limited rotating element life

Designed-in wearng items to generate aftermarket revenuesAutomatic operation for any operating condition

State-of-the-art MAESTRO suite of controls

PLC control availableLimited control capability

Costly, high-maintenance variable speed configurationsEssentially vibration-free

No spedal foundation is requiredSpecial foundations needed to handle heavy weight

Precautions must be taken to prevent transmission of vibrationto other equipment

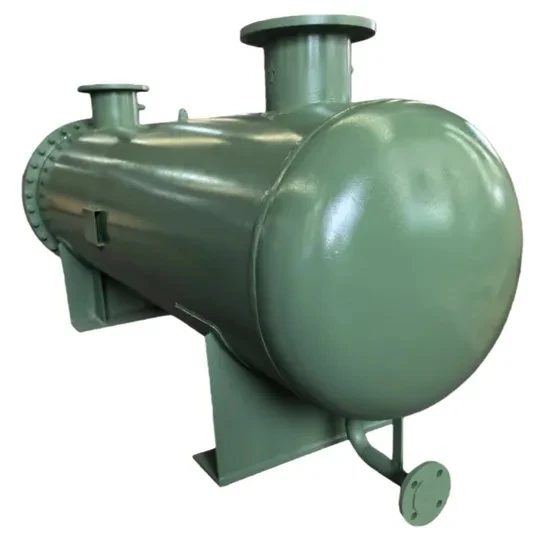

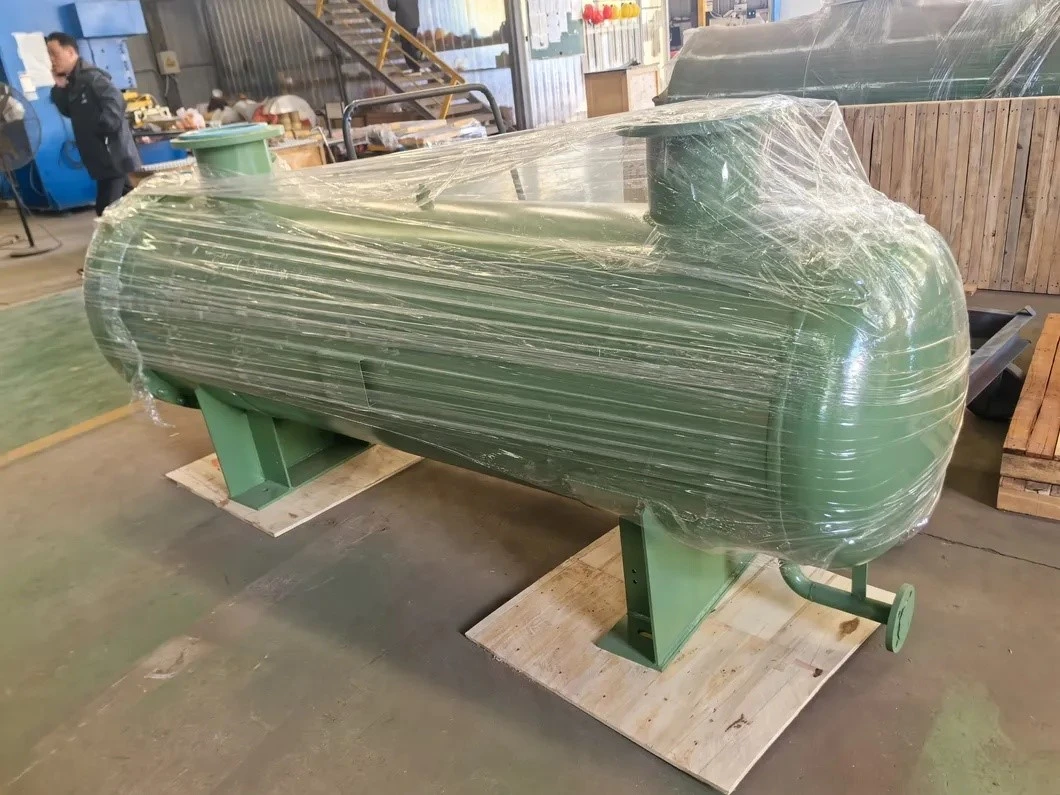

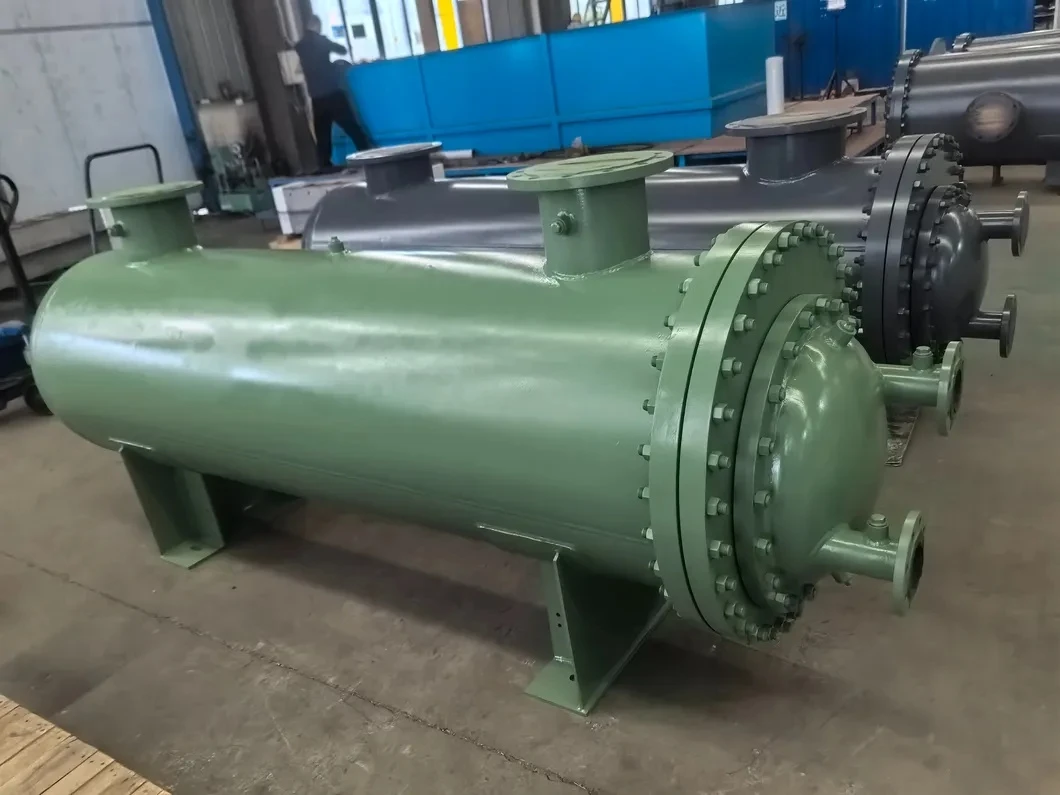

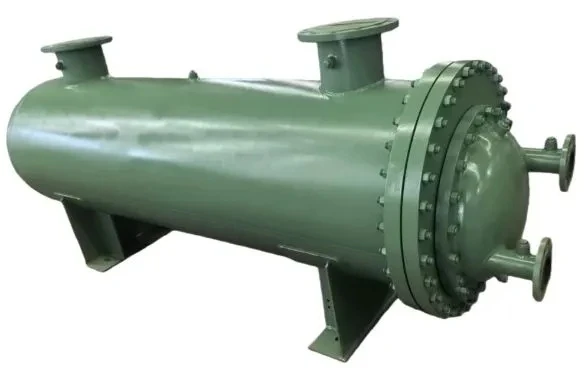

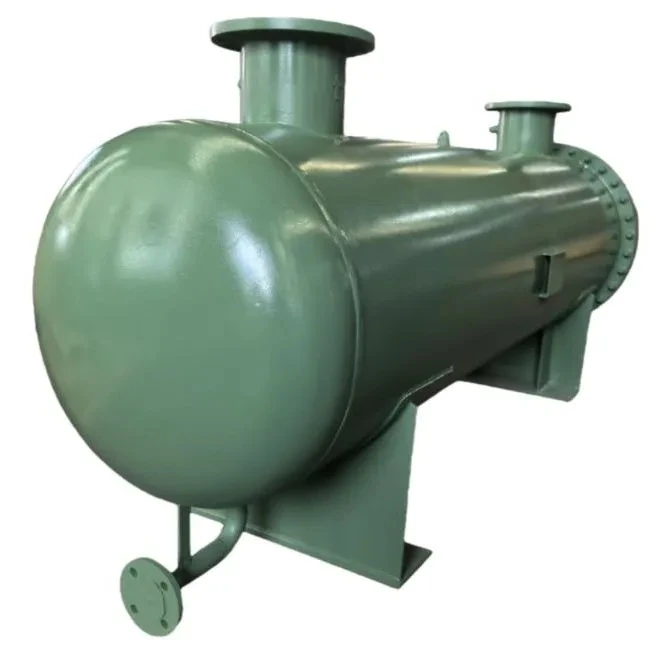

Air cooler(inter cooler and after cooler) matched with Ingersoll Rand(Cameron) centrifugal air compressor NX2500/NX5000/NX8000/NX12000.

Materials: copper or stainless steel tubes with aluminum fins or copper fins. the fins can be pure aluminum/copper, or phenolic resin coated fins which is more durable.
