Hanwha Samsung Air Compressor Intercooler for Air Air Cooler TM800
Basic Info.
|
Working Mediums |
Between Hot Air,Gas&Cold Water |
|
Trademark |
Hylita Thermo |
|
Origin |
China |
|
Materials |
Copper Tubes, Aluminum Fins or Copper Fi |
|
Material |
Copper, Aluminum, Stainless Steel, Carbon Steel |
|
Model NO. |
TM800 |
|
HS Code |
841990 |
|
Production Capacity |
10000 |
|
Style |
Cast-In Type |
|
Maintanance Means |
Removable Tube Bundle |
|
Heat Exchanger Type |
Plate Finned Tube Type |
|
Transport Package |
Seaworthy Wooden Box |
|
Specification |
0.7m³/PC; |
|
Principle |
Partioning Heat Exchanger |
|
Application |
Cooler |
|
Certification |
CE, ISO, RoHS, ASME, Cutr |
Product Description

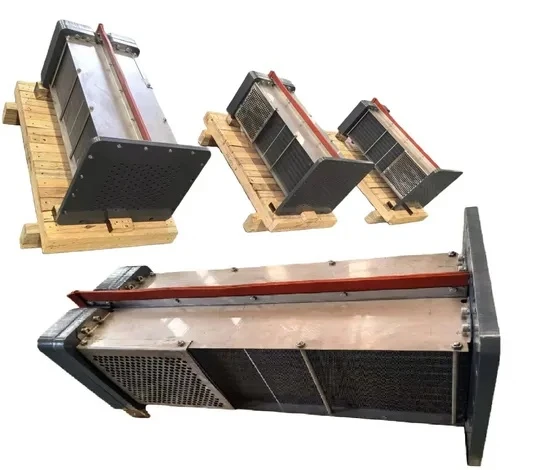

High-performance air compressor cooler(heat exchanger)
Our high-performance air compressor cooler(heat exchanger) is engineered for durability, efficiency, and versatility in air compressors,gas compressors,air expanders,air seperation equipments,air dryers,etc.Designed with advanced technology,testing data and robust materials, this cooler ensures superior cooling effection,and power efficiency. Suitable for different industry applications, it delivers exceptional performance in diverse working conditions.
Specification
Applications
1.Air/gas compressors: centrifugal air compressors,screw air compressors(use water to cool hot air)
2.Air seperation equipment:cooling down the hot air
3.Refrigeration dryer:cooling down the hot air
4.Air/gas expander:cooling down the hot air
5.Ship engines:cooling down the hot oil
6.Power plant:cooling down the hot air
Applicable senarioes: fuel gas boosting ,oil & gas, carbon capture, hydrogen, air separation, pneumatic tools, chemical/petrochemicals, iron & steel, power generation, mining, and RNG, general manufacturing, natural gas processing.
Key Configurations
Tubes: contains flowing water which will take away heat from hot air or gas
Shell: the key part for installing tube bundles, and seperate air passes and water passes.

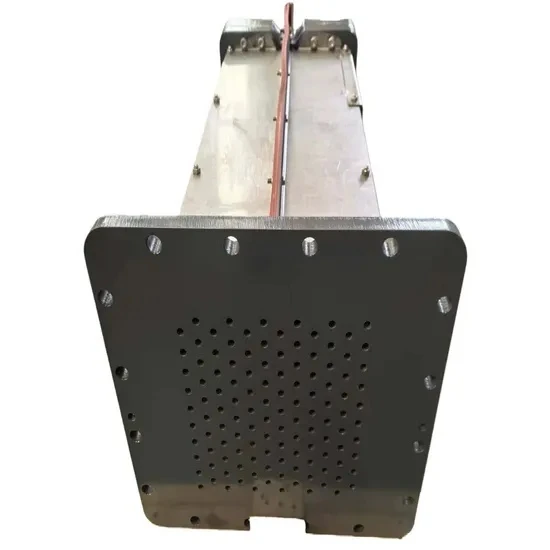

Tube sheets: front tube sheet and back tubesheet which passed through tubes, and strengthen the tube bundle in whole one part;
fins: the key element to enlarge heat transfer areas and improve heat transfer efficiency exponentially;
(top) side plate: make the base for top and down sealings and increase the tube bundle strength;
(top)sealing: make sure hot air/gas goes smongthly in one way, ensuring hot air cool down effiently;
Impingement plate: protecting the fins from strong air pressure and meanwhile hot air/gas passes smoothly
Materials choices
tubesheets: carbon steel (CS), Stainless steel(SS), or copper
tubes: SS(stainless steel), copper, or alloy tubes
fins: copper, aluminium, SS or alloy fins;
shell: carbon steel or SS
Technical Specifications
(Custom configurations available upon request.)
|
Model |
TM400 |
TM500 |
TM600 |
TM700 |
TM800 |
TM900 |
TM1000 |
TM1250 |
|
|
motor |
KW |
224~2386 |
|||||||
|
capacity |
m³/H |
2200~22000 |
|||||||
|
Discharge pressure |
BarG |
2.5~20 |
|||||||
|
L*W*H |
mm |
2900x1600x1800 |
3210x1900x1930 |
3985x2070x1980 |
|||||
|
Weight |
Ton |
4.5~12 |
|||||||
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for downloadhereor upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
- Standard Warranty: 12 months since operating or 18 month after delivery (whichever comes first).
- Extended Warranty: Optional coverage up to 36 months.
- Service Support: 24/7 technical assistance and spare parts supply.
- Training: On-site or remote operation/maintenance training.
Company Profile
Shenzhen Hylita Heat Exchanger Co.,Ltd.
Shenzhen Hylita Thermal Equipment Co. Ltd. is a professional heat exchanger manufacturer, specialized in air coolers and oil coolers suitalble for big brand air compressors, such as Atlas Copco, Ingersoll Rand,Cameron, IHI-sullair, Samsung(Hanwha), FS-Elliott,CompAir, SeAH, Hitachi, kobelco,etc.
Besides, we can also design and fabricate specific heat exchangers basing on customer requests, providing with certificate such as PED, ASME, CU-TR, DOSH, IBR and MOM, backed by R&D innovation and strict quality control. Our products are widely applied in air compressors,air separation equipments, air/gas purification equipments and compressor waste heat recovery systems.
