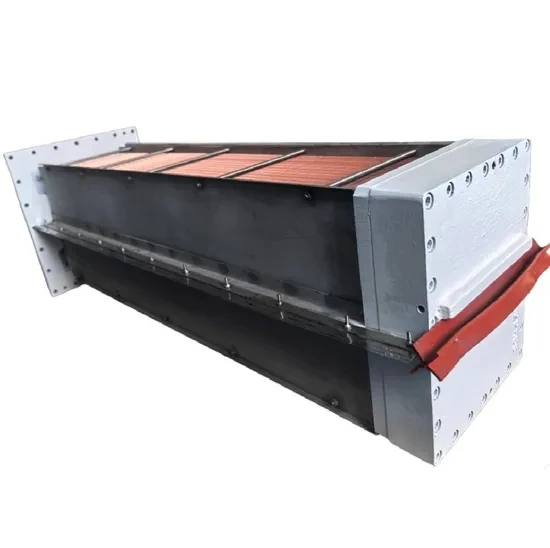

Ihi-Sullair Centrifugal Air Compressor Air Cooler Oil Cooler of Model Trx2000
Basic Info.
|
Application |
Cooler, Used for Ihi Centrifugal Air Compressor Trx Series |
|
Heat Exchanger Type |
Plate Finned Tube Type |
|
HS Code |
841990 |
|
Model NO. |
TRX2000 |
|
Materials |
Copper Tubes, Aluminum Fins or Copper Fi |
|
Style |
Cast-In Type |
|
Trademark |
Hylita Thermo |
|
Package Size |
0.3~0.6cubic Meters |
|
Transport Package |

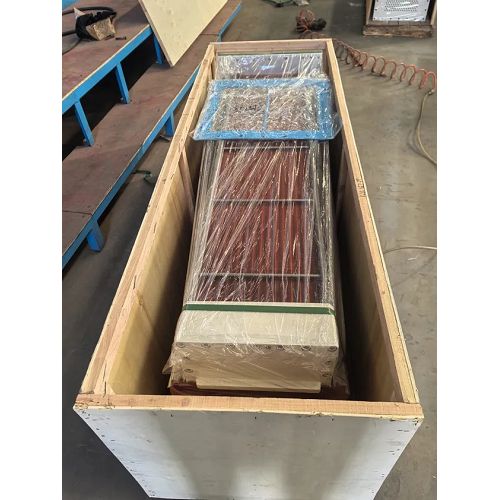

Seaworthy Wooden Box |
|
Material |
Copper, Aluminum, Stainless Steel, Carbon Steel |
|
Origin |
China |
|
Production Capacity |
5000 |
|
Certification |
CE, ISO, RoHS, ASME, Cutr |
|
Gross Weight |
150~300kg |
|
Working Mediums |
Beteen Hot Air/Gas and Code Water |
|
Principle |
Use Cold Water to Cool Hot Air/Gas |
|
Maintanance Means |
Removable Tube Bundle |
|
Specification |
0.3~0.6m³/PC; |
Product Description
High-performance air compressor cooler(heat exchanger)
Our high-performance air compressor cooler(heat exchanger) is engineered for durability, efficiency, and versatility in air compressors,gas compressors,air expanders,air seperation equipments,air dryers,etc.Designed with advanced technology,testing data and robust materials, this cooler ensures superior cooling effection,and power efficiency. Suitable for different industry applications, it delivers exceptional performance in diverse working conditions.
Applications
1.Air/gas compressors: centrifugal air compressors,screw air compressors(use water to cool hot air)
2.Air seperation equipment:cooling down the hot air
3.Refrigeration dryer:cooling down the hot air
4.Air/gas expander:cooling down the hot air
5.Ship engines:cooling down the hot oil
6.Power plant:cooling down the hot air
Applicable senarioes: fuel gas boosting ,oil & gas, carbon capture, hydrogen, air separation, pneumatic tools, chemical/petrochemicals, iron & steel, power generation, mining, and RNG, general manufacturing, natural gas processing.
Key Configurations

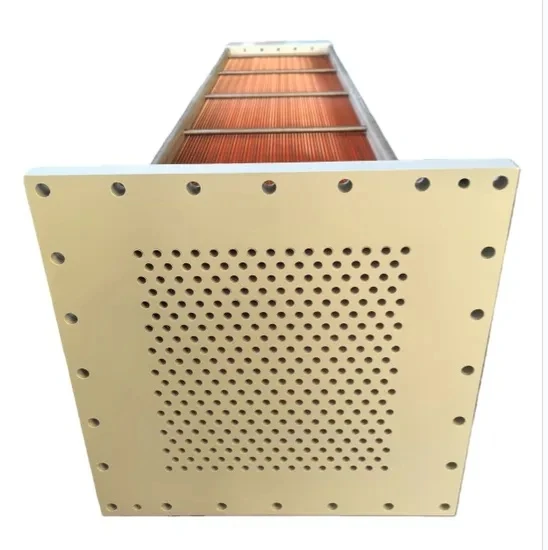

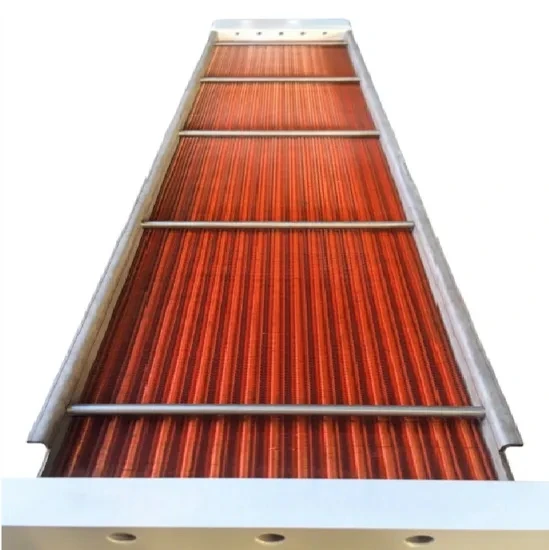

Tube sheets: front tube sheet and back tubesheet which passed through tubes, and strengthen the tube bundle in whole one part;

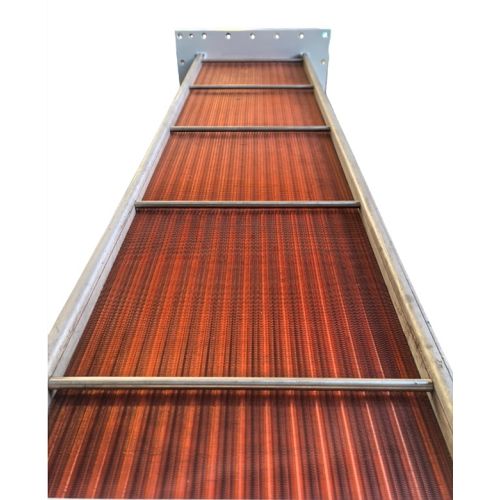

fins: the key element to enlarge heat transfer areas and improve heat transfer efficiency exponentially;
(top) side plate: make the base for top and down sealings and increase the tube bundle strength;
(top)sealing: make sure hot air/gas goes smongthly in one way, ensuring hot air cool down effiently;
Impingement plate: protecting the fins from strong air pressure and meanwhile hot air/gas passes smoothly
Key Configurations
Partition groove: make the base for partition which water passes into two or more;
Tubes: contains flowing water which will take away heat from hot air or gas
Shell: the key part for installing tube bundles, and seperate air passes and water passes.
Materials for choices:
- tubesheets: carbon steel, SS, or copper
- tubes: SS(stainless steel), copper, or alloy tubes
- fins: copper, aluminium, SS or alloy fins;
- shell: carbon steel or SS
Technical Specifications
(Custom configurations available upon request.)
|
Technical data |
MIN |
MAX |
| KW |
670 |
1,715 |
| CFM |
5,300 |
11,750 |
|
Psi A |
60 |
145 |
|
Dimension (L×W×H)mm |
4100x1950x2000 |
5,200 x 2,300 x 2,800 |
|
Weight:kg |
13,000 |
18,500 |

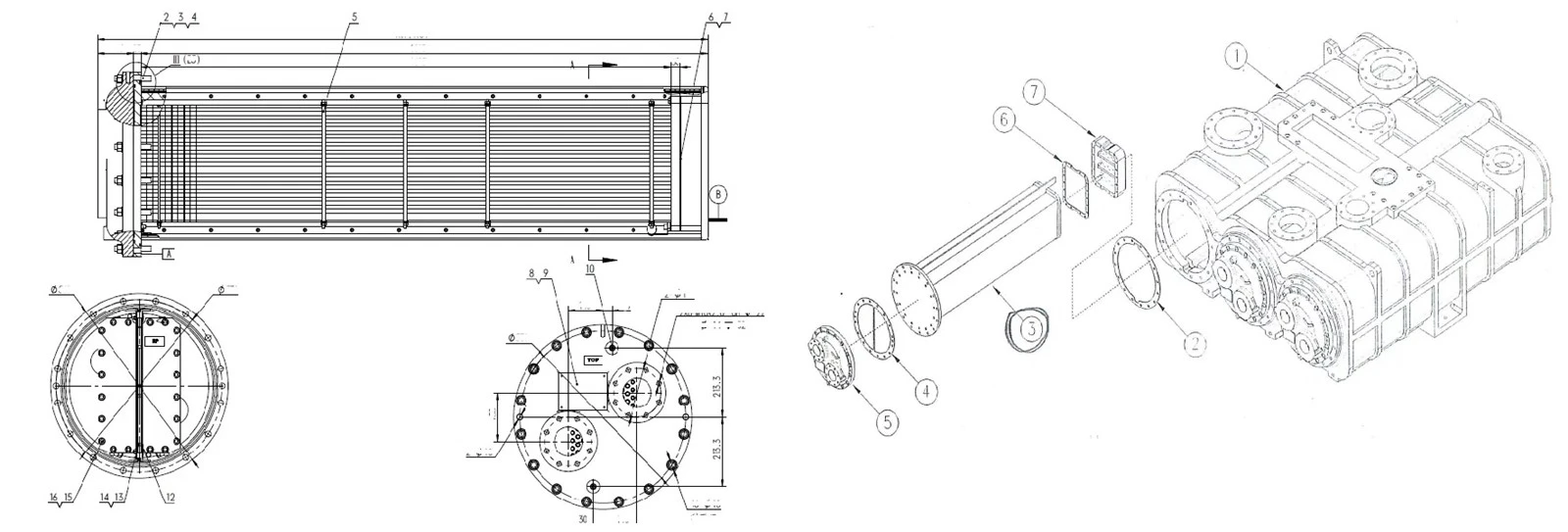

Drawings & Dimensions
Here are the general drawings for intercoolers for your reference. Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
- Standard Warranty: 12 months since operating or 18 month after delivery (whichever comes first).
- Extended Warranty: Optional coverage up to 36 months.
- Service Support: 24/7 technical assistance and spare parts supply.
- Training: On-site or remote operation/maintenance training.
Company Profile
Shenzhen Hylita Heat Exchanger Co.,Ltd is a professional heat exchanger manufacturer, specialized in air coolers and oil coolers suitalble for big brand air compressors, such as Atlas Copco, Ingersoll Rand,Cameron, IHI-sullair, Samsung(Hanwha), FS-Elliott,CompAir, SeAH, Hitachi, kobelco,etc.
Besides, we can also design and fabricate specific heat exchangers basing on customer requests, providing with certificate such as PED, ASME, CU-TR, DOSH, IBR and MOM, backed by R&D innovation and strict quality control. Our products are widely applied in air compressors,air separation equipments, air/gas purification equipments and compressor waste heat recovery systems.
Why Choose Us?

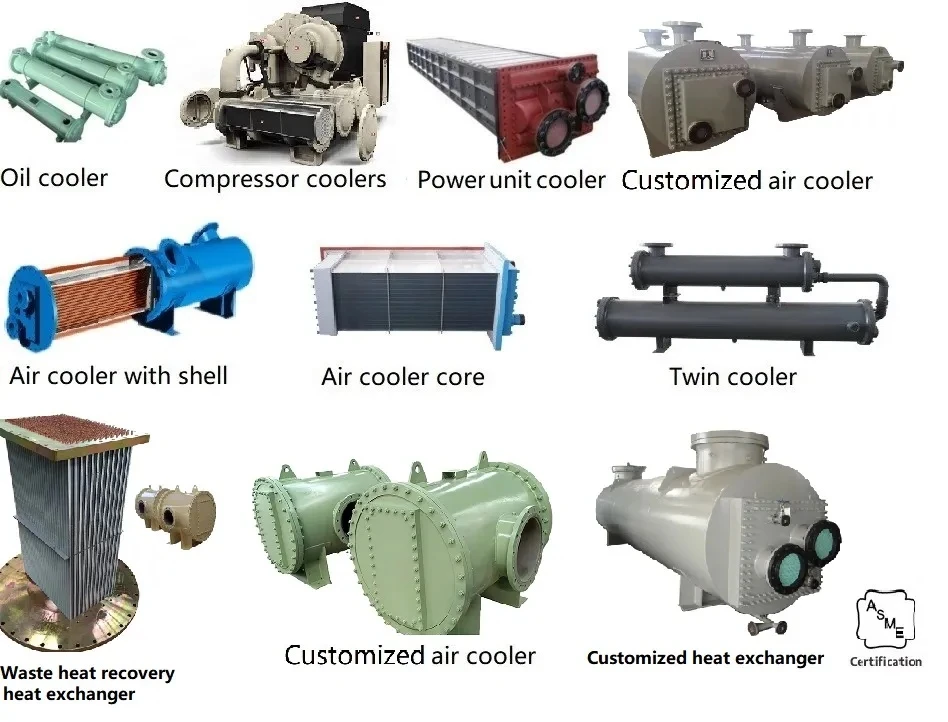

Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Faster feedback, quotation, solution than competitor
Certified with full Certificates such as ASME, CE, CU-TR, DOSH, etc.
heat exchanger for process gas compressor
Water cooler for refrigerant dryer
Ship engine intercooler(air cooler, oil cooler)
Power plant air cooler,oil cooler
heat exchanger for waste heat recovery plant/system
