Kobelco Air Compressor Air Cooler Water Cooler Heat Exchanger for Ale250wiv
Basic Info.
|
Weight |
145kg |
|
New Application |
The Cooler Can Recover Waste Heat |
|
Model NO. |
ALE250WIV |
|
Material |
Copper Tubes and Aluminum/Copper Fins |
|
Fins Pitch Range |
1.2~2.0mm |
|
Principle |
Cold Water to Cooler Hot Air |
|
Specification |
0.45m³ |
|
Maintainance Means |
Movable and Easy Cleaning |
|
HS Code |
841990 |
|
Trademark |
Hylita Thermo |
|
Origin |
China |
|
Application |
Cooler |
|
Style |
Plate Finned-Tube |
|
Package Size |
0.45 Cubic Meters |
|
Certification |
CE, ISO, ASME, Cutr |
|
Transport Package |
Seaworthy Wooden Box |
|
Materials |
Copper Tubes, Aluminum Fins or Copper Fins |
|
Production Capacity |
5000 |
Product Description

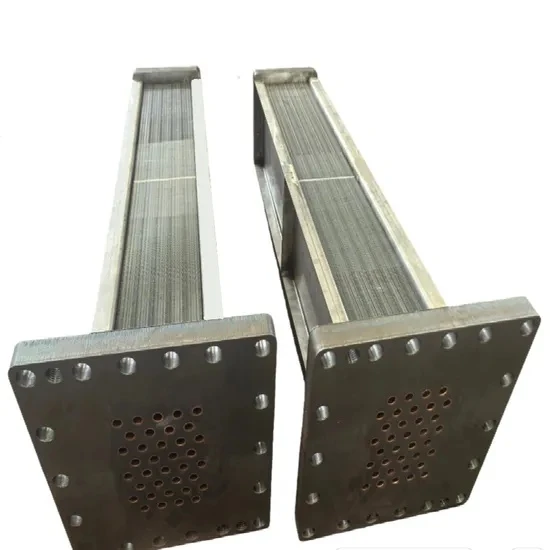

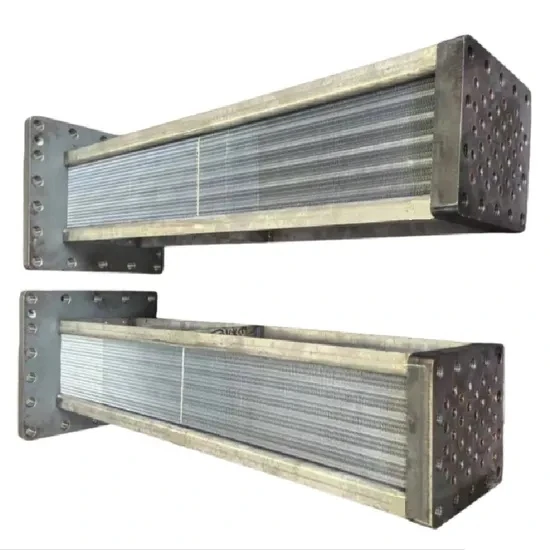

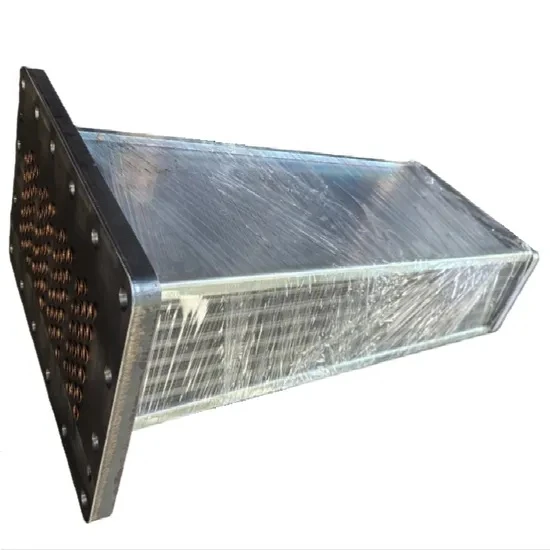

High-performance air compressor cooler(heat exchanger)
Our high-performance air compressor cooler(heat exchanger) is engineered for durability, efficiency, and versatility in air compressors,gas compressors,air expanders,air seperation equipments,air dryers,etc.Designed with advanced technology,testing data and robust materials, this cooler ensures superior cooling effection,and power efficiency. Suitable for different industry applications, it delivers exceptional performance in diverse working conditions.
Specification
ALE Emeraude ALE/Two-stage dry screw
Application industries

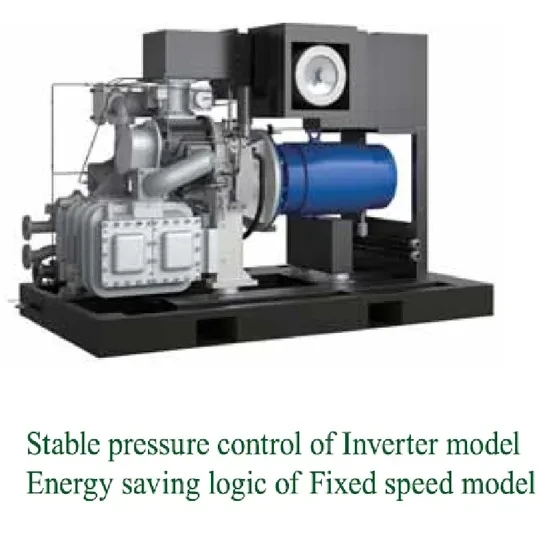

Kobelco oil-free screw compressors are used across demanding industries needing pure air/gas, like Petrochemicals, Chemicals, Oil & Gas (refining, vapor recovery), Steelmaking (DRI plants), Electronics, Semiconductors, Automotive, and Food & Beverage, preventing oil contamination in processes such as flare gas recovery, vapor recovery, and critical manufacturing steps.
Technical features
*Suction conditions Absolute suction pressure:0.10MPa, Suction temperature:20°C.Humidity:0%RH.
*Discharge air volumes is converted to suction conditions.
*Discharge pressure are measured after gas coolers.
*Air produced by compressors should not be used in respiratory equipmentfurnishing air for direct inhalation.
*Nominal working pressure of 0.75MPa & 0.86MPa model is 0.70MPa.
*Nominal working pressure of 1.04MPa is 0.90MPa.*Since the cooling for the compressed air & the inside of the compressor unitdepends on the surrounding air condition, the surrounding air must be properly ventilatedto prevent the ambient temperature from rising above 45°C.(For air-cooled 1.04MPa model, the surrounding air temperature should not exceed 40°C)
*Please be sure to use the lubricating oil recommended by KOBELCO.Specifications and appearances are subject to change without noticeContact us if guaranteed values of performance is needed.
Oil-free Worry- free
What's most essential value for oil-free compres-sors is to supply pure, clean, oil-free air stably inany running conditions.
For critical applications,such as, food and beverages processing, semicon-ductor and electronics manufacturing, medicinesmanufacturing and more, even the smallest oilcontamination never been accepted.
As a pioneer of oil-free technology with over60 years of history, Emeraude ALE/FE seriesassure safe oil-free compressed air and utmostreliability for your production.

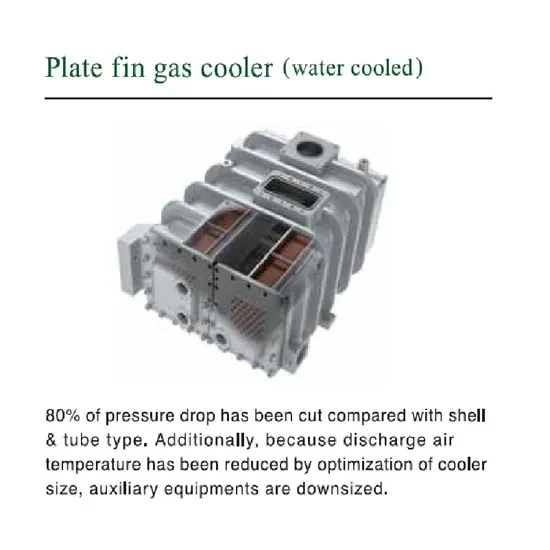

Unique design to ensure "Oil free"

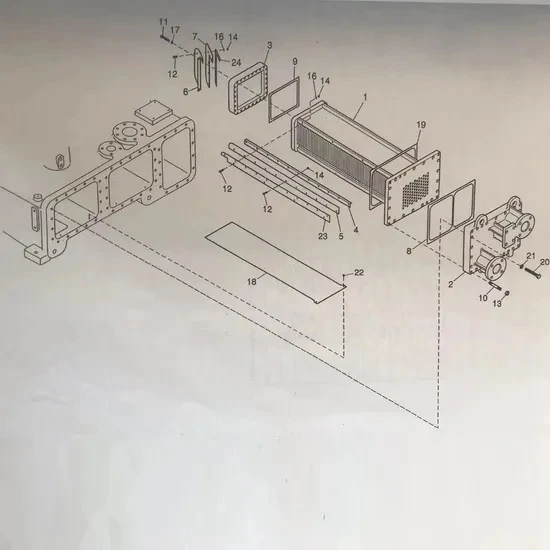

Detailed CAD drawings and dimensional diagrams are available for downloadhereor upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
Standard Warranty: 12 months since operating or 18 month after delivery (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Service Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
Shenzhen Hylita Heat Exchanger Co.,Ltd is a professional heat exchanger manufacturer, specialized in air coolers and oil coolers suitalble for big brand air compressors, such as Atlas Copco, Ingersoll Rand,Cameron, IHI-sullair, Samsung(Hanwha), FS-Elliott,CompAir, SeAH, Hitachi, kobelco,etc.
Besides, we can also design and fabricate specific heat exchangers basing on customer requests, providing with certificate such as PED, ASME, CU-TR, DOSH, IBR and MOM, backed by R&D innovation and strict quality control. Our products are widely applied in air compressors,air separation equipments, air/gas purification equipments and compressor waste heat recovery systems.
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Heat exchanger for process gas compressor
Water cooler for refrigerant dryer
Ship engine intercooler(air cooler, oil cooler)
Power plant air cooler,oil cooler
heat exchanger for waste heat recovery plant/system
FAQ
