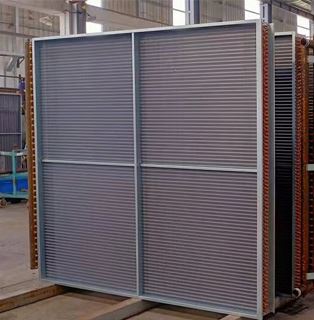

Hylita Surface Air Coolers: Advanced Closed-Loop Cooling Systems
The perfect hybrid of air cooling and evaporative efficiency. Compact, Corrosion-Resistant, and Custom-Engineered.
Surface Air Coolers are essential industrial heat exchange equipment designed for high-efficiency thermal management. By circulating fluids through a precision-engineered core, they utilize advanced heat transfer mechanisms to rapidly cool or heat the target medium.
Working Principle
The operation relies on the principles of thermal conduction and convection. As the process fluid is injected into the Surface Air Cooler, thermal energy is efficiently transferred from the fluid to the heat exchange surface (typically finned tubes). This heat is then dissipated into the external environment, lowering the fluid temperature via the cooler's optimized structure.
Core Functions
The primary function is versatile fluid cooling. These units are engineered to handle a diverse range of media, including process water, air, and industrial gases.
Additionally, they offer dual functionality: they can serve as process heaters. By circulating high-temperature fluids (such as steam or thermal oil) through the system, the Surface Heat Exchanger effectively transfers heat to the target medium, meeting flexible industrial requirements.
PRODUCT OVERVIEW
High-Performance Custom Cooling Solutions
Hylita Surface Air Coolers (SAC) are engineered for the most demanding industrial environments. By integrating traditional air cooling with closed-circuit evaporative technology, our units deliver:
- Maximum Cooling Capacity in a compact footprint.
- Minimal Operation Costs (reduced water and electricity usage).
- Zero Contamination Risk due to the closed-loop design.
Whether you need to cool process fluids in Dry Mode or enhance performance with Wet Mode during peak heat, Hylita systems adapt to your ambient conditions for optimal thermal efficiency.
HOW IT WORKS
Thermodynamic Efficiency - The Hylita SAC operates on the principle of direct thermal conduction and convection:
Primary Circuit
Hot process fluid flows through the internal tube bundle.
Heat Transfer
Heat is rapidly conducted from the fluid to the tube wall and extended fin surface.
Heat Rejection
Ambient air (enhanced by water spray in Wet Mode) passes over the fins, removing heat and discharging it into the atmosphere.
Hylita Surface Air Coolers are the industry standard for robust and efficient cooling in diverse industrial processes. Our advanced designs, featuring corrosion-resistant materials and high-performance finned tube technology, are engineered to meet the rigorous demands of various sectors.
Petrochemical: Safeguard high-temperature reactors and critical process vessels from thermal damage by efficiently cooling aggressive fluids.
Power Generation: Ensure reliable operation of generators and turbines through precise cooling of essential high-temperature components.
Machinery Manufacturing: Protect sensitive industrial machinery and hydraulic systems by managing heat loads in critical fluid circuits.
General Industrial: Ideal for cooling large-scale equipment and high-capacity air handling systems.
Energy Sector: Essential for industrial cooling towers and power plant air coolers, optimizing energy efficiency.
Environmental Technologies: Critical for air coolers and flue gas treatment systems (FGD/DeNOx), ensuring operational integrity in harsh conditions.
Chemical Processing: Facilitate efficient condensation and cooling for chemical production lines, maintaining product quality.
Electronics Cooling: Provide advanced heat dissipation for electronic devices and data centers using high-performance copper tube and aluminum fin configurations.
Malaysia / Mushroom Plant Evaporator Unit
Versatile cold room cooling. DHL models are specifically designed for temperatures ≥5℃.
Indonesia / Air Cooler/Water Cooler
Application area：100-150m2
Range of use: workshop, internet cafes, kitchen, aquaculture.
Singapore / Air Cooler SHSL-D1 Series
Cooling capacity: from 5 to 649 kw
Air volume: from 2828 to 263503 m3/h
Sound pressure level: from 31 to 69 dB A(10m)
Saudi Arabia / Air Cooler SHSL-D4 Series
Cooling capacity: from 176 to 792 kw
Air volume: from 21454 to 227449 m3/h
Sound pressure level: from 54 to 66 dB A(10m)
Key Features & Advantages
10+ YearsOEM & ODMProfessional Heat Exchanger Solution
Advantages of Hylita Surface Air Coolers (SAC) Heat Exchanger:
Nano Coating Fins: Hydrophilic blue coating prevents water bridging and protects against corrosive industrial steam.
Heat Transfer Efficiency: Optimized circuiting increases heat transfer by 28% compared to standard tube fin designs.
C11000 Copper Tubes: High-purity seamless copper ensures superior thermal conductivity and withstands thermal expansion.
3.0MPa Pressure Tested: Every unit undergoes 100% underwater nitrogen leakage tests to prevent high-pressure steam leaks.
Easy Installation: Universal galvanized steel frames with pre-drilled holes for rapid bolt-on mounting in air handlers.
Reinforced 304 Frame: Heavy-gauge stainless steel side plates provide rigid support and eliminate vibration during operation.
OEM Drawing Customization: We provide custom fin spacing and tube diameters to meet specific boiler steam capacities.
1-Year Warranty: Covers all manufacturing defects, ensuring reliable operation in harsh commercial HVAC environments.
Louvered Fin Design: Maximizes air turbulence to ensure rapid steam condensation and consistent outlet air temperature.
Quick Bolt Installation: Pre-drilled mounting flanges allow seamless integration into existing air handling units.
Technical Specifications：
● Tube Material: C12200 Seamless Copper
● Fin Type: Louver, Flat, or Sine Wave
● Shell Material: Galvanized Steel or SS304
● Max Working Pressure: 3.0 MPa
● Fin Pitch: 1.2mm to 4.0mm Adjustable
● Circuiting: Multi-circuit Interlaced
● Certification: ISO9001:2015, CE
● Leak Test: 100% Underwater Nitrogen Test
● Customization: Support OEM/ODM Drawings
Applications：
● Commercial AHU Cooling Systems
● Industrial Steam Air Heaters
● Chilled Water Air Handling Units
● DX Refrigeration Evaporators
● Food Processing Cold Storage
● Textile Factory Humidity Control
● Power Plant Turbine Air Cooling
● Chemical Process Vapor Condensing
● Hospital Clean Room HVAC
● Data Center Thermal Management
Key Features:
1. 25% Higher Efficiency: Optimized fin patterns maximize air contact without increasing fan power.
2. Zero Leakage Guarantee: Dual-stage pressure testing at 1.5x working pressure ensures field reliability.
3. 500-Hour Salt Spray: Optional epoxy coating extends service life in coastal industrial areas.
4. Precision Engineering: CNC punching and mechanical expansion provide a perfect fin-to-tube bond. 5. Rapid Response OEM: Technical drawings provided within 24 hours for custom replacement coils.
Customer Case Photos
Country: USA
Application: Corrosion-resistant radiator for seaside hotel
Material: 5/8" K-Type Copper / Aluminum Fin
Country: Singapore
Application: High-pressure chilled water coil for district cooling AHU
Material: K-Type Copper (25 Bar) / Blue Fin
Country: Australia
Application: Hot water booster coil for high-rise hotel HVAC
Material: Thick-wall Copper / SS304 Casing
Country: Norway
Application: Gearbox oil cooling for marine fishing vessels
Material: Copper-Nickel (CuNi 90/10)
Country: Germany
Application: Glycol cooling coil for brewery fermentation
Material: 15.88mm Copper Tube / Copper Fin
Country: Dubai
Application: High-ambient air cooled chiller condenser
Material: Heavy-wall Copper Tube
why choose us
OEM/ODM support| Strict quality control (ISO-certified) | Competitive pricing & fast delivery
why choose our products
Shenzhen Hylita Heat Exchanger Co., Ltd.
Our headquarters is located in Shenzhen, with branch offices in Guangzhou, Dongguan, and Wuhan.
We offer a comprehensive range of heat exchange equipments, including: Air heat exchangers, surface coolers, evaporators, condensers, shell and tube heat exchangers, plate heat exchangers, finned tubes and heat exchange accessories.
Surface Air Coolers units are available in both direct-replacement models (100% compatible with OEM specifications) and fully customized configurations engineered to meet specific application requirements.
-
Hybrid Cooling Capability: Intelligently switches between Dry and Wet operation based on ambient temperatures, utilizing natural cooling potential to save resources.
-
Corrosion Resistance: Available in SS304/SS316L Stainless Steel and Copper Alloys to withstand aggressive media and harsh environments.
-
Zero Process Contamination: The process fluid remains in a sealed, closed-loop system, preventing contact with atmospheric pollutants.
-

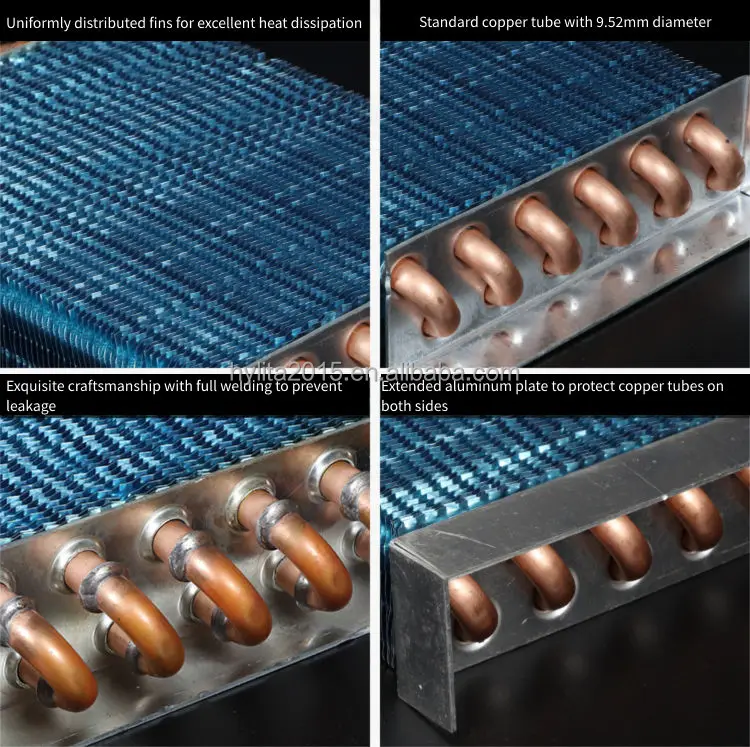

Advanced Fin Geometry: Utilizes Mechanical Expansion technology to bond copper tubes with aluminum fins. Our Corrugated and Arc-Wave fin designs disrupt the air boundary layer, significantly boosting the heat transfer coefficient.
Contact now
Premium Materials & Advanced Fin Technology
Custom designs for max longevity & thermal performance.
Material
Robust Material Selection (Tube & Casing).
- Stainless Steel (304/316L): The ultimate choice for corrosion resistance and high-temperature stability. Ideal for harsh chemical environments and aggressive fluids.
-
Carbon Steel: A cost-effective, durable solution perfectly suited for low-to-medium temperature applications where standard corrosion resistance is sufficient.
-
Copper Alloys: Renowned for superior thermal conductivity, making them the preferred choice for high-performance demands in petrochemical and refinery sectors.
Fin Type
Optimized Fin Geometries.
- Flat Fins: Simple and effective. Designed for low-to-medium temperature applications, offering low air resistance and easy cleaning.
-
Corrugated (Wavy) Fins: Engineered to significantly increase heat transfer surface area. Best for high-temperature scenarios requiring enhanced efficiency.
-
Dimpled (Pitted) Fins: The heavy-duty option. Creates maximum turbulence to boost ventilation and heat dissipation, ideal for high-load and high-temperature critical cooling.
Technical Specifications
Industry-Standard Specs & Full Customization Available.
| Tube O.D. | Tube Material | Tube Pitch | Row Pitch | Fin Material | Fin Spacing |
| Φ9.52 |
Copper, Inner Grooved Copper - Cu-Ni, Aluminum, Stainless Steel (304, 316L) |
25.4mm 25mm |
22mm 21.65mm |
Bare Aluminum, Hydrophilic Aluminum, Copper, Epoxy Coated Aluminum, Stainless Steel |
1.5-12mm |
| Φ12.7 | 31.75mm | 27.5mm | 2.0-8.0mm | ||
| Φ15.88 / Φ16 | 38.1mm | 33mm | 2.0-14mm | ||
| Φ25 | 60mm | 59.5mm | 2.0-8.0mm |
Product Test
Strict Quality Assurance – 100% Pressure Tested Before Shipment
* Double Testing Process: Each unit is tested twice at 2.5 MPa (362 psi).
* Leakage Verification: Pressure is maintained for a minimum of 15 minutes to ensure zero leakage and structural integrity.
Packing & Delivery
Standard packaging is wooden crates.
For exports to European countries, the wooden crates undergo fumigation treatment.
If container space is limited, we can switch to PE film packaging or accommodate special packaging requests from customers.
Custom High-Efficiency Air Coolers
Optimize your industrial thermal management with our precision-engineered Surface Air Coolers. Featuring advanced WetSurface™ Hybrid Technology, our units intelligently switch between dry and wet modes to maximize cooling capacity while minimizing water use.
FAQ
01.Order Security & Online Transactions
A: Yes, we highly encourage it! Trade Assurance secures your payment 100%. Combined with our 10-year manufacturing history, you can place your first order with total confidence.
02.Quality Control
A: Our reputation is built on 4 core quality pillars:
✅ Experience : Specialized manufacturer since 2015 (10+ Years).
✅ Certifications: ISO 9001:2015, CE, ROHS
✅ Assurance : 100% pressure testing on every unit before shipment
✅ Global Trust : Successfully serving clients in over 50+ countries.
03.Design & Calculation
A: Yes! We use HTRI software for precise sizing. Just share your operating data (Temp/Flow), and we will provide a professional
design for your approval.
04.Minimum Order Quantity (MOQ)
A: Small order is also welcome in our company.
05.Warranty Service
Q: How long is the warranty coverage?
A: We offer flexible warranty options to match your needs:
✅ Standard: 12-Month for all orders.
✅ Extended: Up to 24-Month for eligible customized orders (confirm with our team).
06.Customization
A: Yes, full customization available. We support custom materials (Copper, SS304/316, Cu-Ni) and offer Laser Marking & Nameplates to feature your logo perfectly.
07.Service Commitment
Q: How do you keep me updated on my order?
A: We ensure 100% Process Transparency:
✅ Double Confirmation: All specs verified before production starts..
✅ Visual Updates: We send photos/videos of the manufacturing progress.
✅ Document Review: Draft documents (B/L, Invoice) sent for your approval before final issuance to avoid errors.
