Staggered Fin Heat Exchanger

Product Identity

◆ Place of Origin: China

◆ Brand Name: OEM/ODM (Flexible branding for HVAC equipment partners)

◆ Certification: ISO 9001, ASHRAE (Aligned with HVAC industry quality and performance standards)

◆ Model Number: Customized (Tailored for diverse HVAC system designs)



Product Overview

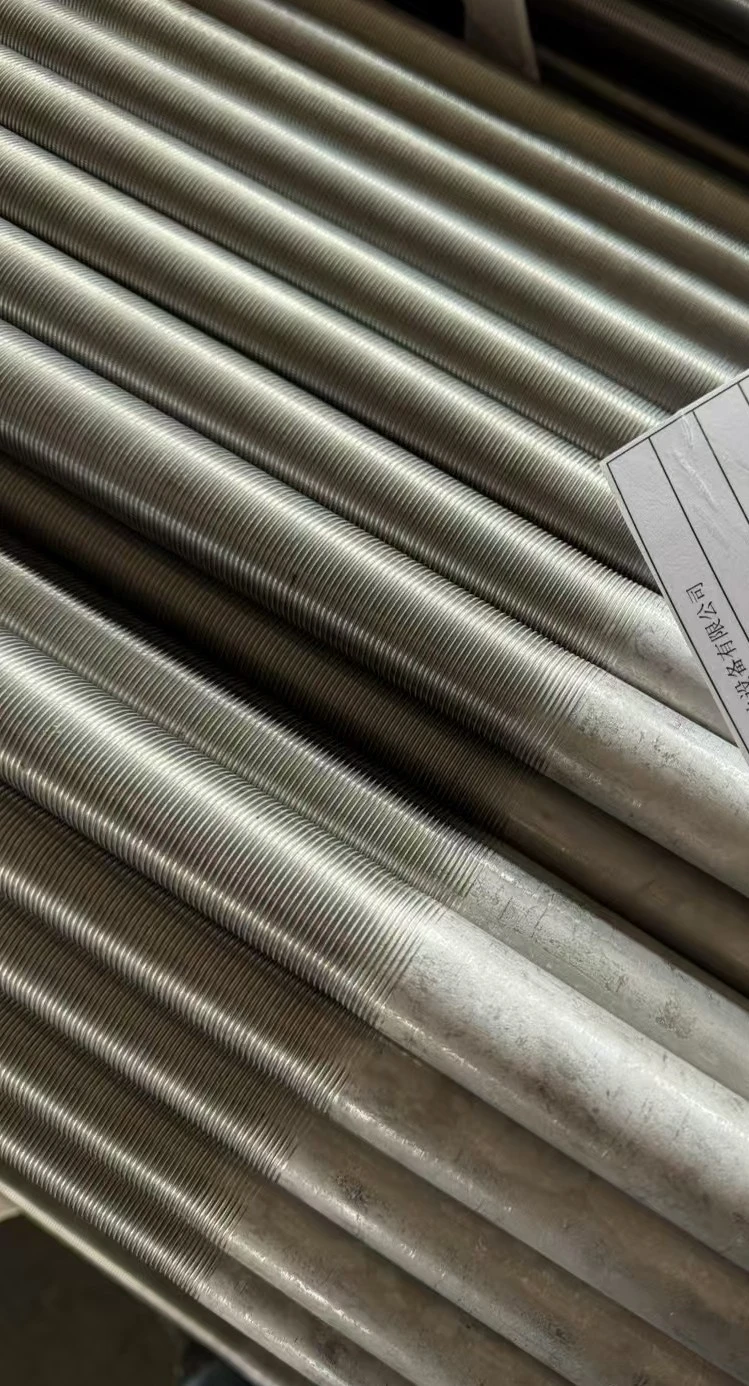

◆ Engineered for HVAC systems, these heat exchanger tubes feature aluminum fins manufactured via extrusion. They deliver lightweight yet robust structures, with corrosion resistance ensuring long service life in humid environments-ideal for commercial buildings, hospitals, and data centers.



Key Specifications

◆ Construction & Materials
Design: Extruded aluminum fins bonded to tubes. Creates lightweight, high - strength structures that maximize heat transfer surface area without adding excess weight to ductwork/equipment.
Material: Aluminum (corrosion - resistant, lightweight; suits humid HVAC environments like basements, coastal facilities).

◆ Performance Parameters
Corrosion Resistance: Withstands condensation and moisture, preventing rust in humid commercial/industrial settings.
Airflow & Efficiency: Fin design promotes uniform airflow, reducing pressure drop by up to 18% and boosting energy efficiency.



Design & Functionality

◆ VAC - Focused Efficiency
Extrusion - manufactured aluminum fins form a seamless bond with tubes, enhancing thermal conductivity. This design optimizes heat transfer in heating/cooling cycles, ensuring HVAC systems run efficiently in buildings like offices, hospitals, and data centers.

◆ Durability in Humid Environments
Aluminum's corrosion resistance prevents rusting from condensation/moisture. Low - maintenance, microbial - growth - resistant surfaces align with indoor air quality standards, ensuring long - term HVAC performance.



Application Areas

◆ Commercial & Industrial HVAC
Office Buildings, Hospitals, Data Centers: Provides reliable heat exchange in humid environments. Reduces energy use (via 18% pressure drop reduction) and ensures consistent indoor climate control.



Commercial Terms

◆ Order Details
Minimum Order Quantity (MOQ): Negotiable (Supports small - scale HVAC retrofits and large - volume system installations)
Price: Negotiable (Customization - based: fin thickness, tube material, and order volume)

◆ Shipping and Delivery
Packaging Details: Protective film + HVAC - grade crates (Prevents fin damage during transit, ensuring structural integrity)
Delivery Time: 10 - 20 days (Adjusts for customization complexity, e.g., fin density for specific airflow needs)

◆ Payment and Supply
Payment Terms: L/C, T/T (Aligned with HVAC industry procurement workflows)
Supply Ability: 7500 pcs per month (Meets commercial building HVAC projects and replacement demands)
