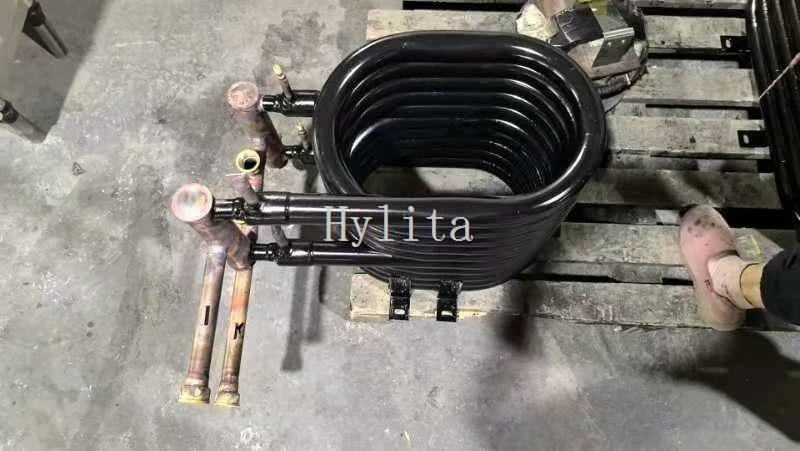

Coaxial Heat Exchanger for Chemical & Residential Use
The heat exchanger's design is simple yet highly effective. It features two concentric tubes, with one fluid flowing through the inner tube and the other through the annulus. This counterflow arrangement maximizes the contact time between the two fluids, significantly enhancing heat transfer efficiency.
During the production process, meticulous attention is paid to detail. The tubes are precisely rolled and expanded to create a snug, leak-proof fit, ensuring optimal performance and reliability. Thanks to its small footprint, the coaxial heat exchanger can be easily installed in tight spaces, such as under sinks or inside utility closets, making it a convenient and practical choice for homeowners looking to upgrade their heating and cooling systems.
Product Details
Product Identity
◆ Place of Origin: China
◆ Brand Name: OEM/ODM (Flexible branding for B2B partnerships)
◆ Certification: CE, ISO 9001, ASME B31.3 (Compliant with chemical industry safety standards)
◆ Model Number: Customized (Tailored for chemical applications and residential HVAC upgrades)
Product Overview
◆ This coaxial heat exchanger features double - walled stainless steel construction, ensuring leak detection and safety compliance in chemical use. Its simple yet effective concentric tube design (inner tube + annulus) enables counterflow heat transfer, boosting efficiency. Also ideal for residential HVAC upgrades, fitting tight spaces like utility closets.
Key Specifications
◆ Construction & Materials
Design: Two concentric tubes (double - walled stainless steel). Inner tube for one fluid, annulus for the other-enables counterflow heat exchange.
Material: Stainless steel (leak - resistant, corrosion - proof for chemical environments; durable for residential use).
◆ Performance Parameters
Heat Transfer: Counterflow arrangement maximizes fluid contact time, enhancing thermal efficiency (critical for chemical process heating/cooling and residential HVAC).
Leak Safety: Double - walled structure supports leak detection, meeting chemical industry safety standards.
Design & Functionality
◆ Chemical Application Safety
Double - walled stainless steel construction prevents leaks, ensuring compliance with chemical industry safety norms. The counterflow design optimizes heat transfer for processes like chemical reaction temperature control, distillation, or cooling.
◆ Residential HVAC Efficiency
Compact, small - footprint design fits tight spaces (e.g., under sinks, utility closets). Precisely rolled/expanded tubes ensure a snug, leak - proof fit, boosting HVAC system efficiency for homeowners upgrading heating/cooling setups.
Application Areas
◆ Chemical Industry
Process Heating/Cooling: Safe heat exchange for corrosive/ hazardous fluids, ensuring process stability and safety compliance.
◆ Residential HVAC
Home Heating/Cooling Upgrades: Easy installation in tight spaces, improving energy efficiency for residential climate control systems.
Commercial Terms
◆ Order Details
Minimum Order Quantity (MOQ): Negotiable (Supports small - batch chemical plant trials and bulk residential HVAC projects)
Price: Negotiable (Customization - driven: material grades, size, and application - specific designs)
◆ Shipping and Delivery
Packaging Details: Anti - corrosion wrapping + sturdy crates (protects stainless steel from damage; ensures compliance for chemical industry transit)
Delivery Time: 10 - 20 days (Adjusts for customization complexity, from chemical - grade to residential - scale orders)
◆ Payment and Supply
Payment Terms: L/C, T/T (Aligned with B2B chemical and HVAC industry workflows)
Supply Ability: 7500 pcs per month (Meets both chemical plant retrofits and residential HVAC market demands)
