Basic Info
|
Material |
Carbon Steel, Stainless Steel, Copper, Aluminum |
Key selling points |
Eco-Friendly, Low Maintenance Cost, Long Service Life |
|
Voltage |
220 V, 380 V |
Heat Exchanger Type |
Tube Heat Exchanger |
|
Maximum operating temperature |
500°C(932°F) |
Flow Capacity |
Customized |
|
Fluid Compatibility |
Oil, Water, Steam, Refrigerant,Gas |
Working temperature range |
100~500°C(212~932°F) |
|
Core components |
finned tube |
Warranty |
1 Year |
|
Machinery test report |
Provided |
Video outgoing-inspection |
Provided |
|
Place of origin |
Guangdong, China |
Weight (KG) |
200 |
|
Brand name |
Hylita |
Liquid Flow Rate |
1.39~10 L/s |
|
Maximum Pressure Rating |
Variable |
Dimension(l*w*h) |
Custimized Made |
|
Application |
Air heating, steam heating,Heating and Drying |
Heat exchanger type |
Finned Tube Heater Exchanger |
|
Product Name |
Waste Heat Recovery |
Tube & Fin material |
Copper, CuNi, Stainless steel, Aluminium, carbon steel, Titanium |
|
Frame material |
Stainless Steel, GI plate, Aluminum plate |
Feature |
High energy efficiency-low operating cost |
|
Fin type |
Flat, corrugated, louvered,Smooth tube |
Fin surface |
Epoxy (gold), Blue (hydrophilic), Powder paint, Bare |
|
Packing |
Wooden Case |
Liquid in tube |
Water, ammonia, glycol, Refrigerant |
|
Selling Units |
Single item |
Single package size |
77X112X138 cm |
|
Single gross weight |
238.000 kg |
Products Description

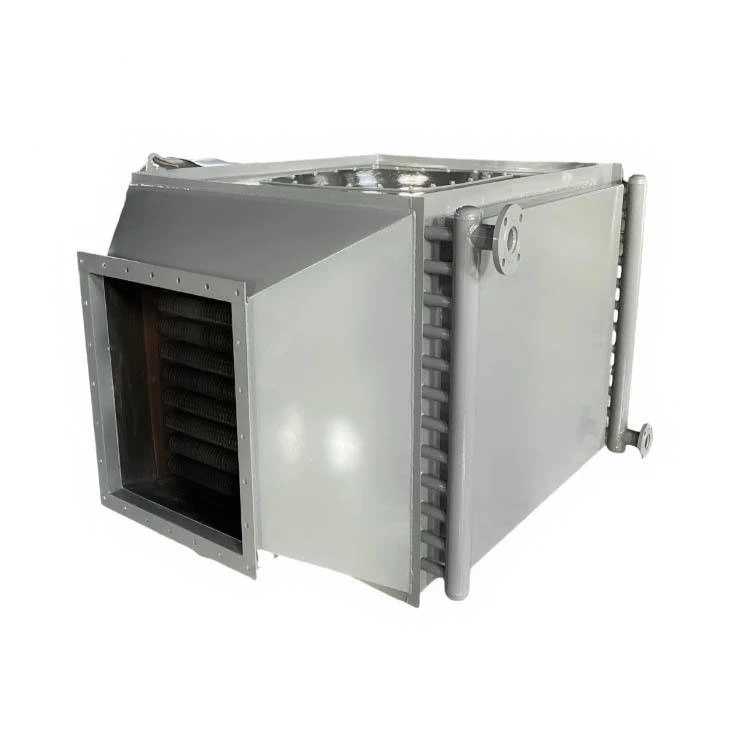

Maximize Energy Savings: Advanced Waste Heat Recovery Solutions
Our system utilizes advanced H-fin or Spiral fin tubes made from corrosion-resistant ND steel or Stainless Steel. This design maximizes heat transfer surface area while preventing ash accumulation. It is custom-engineered to withstand high temperatures and acidic flue gases in harsh industrial environments.
Core Advantages
Fuel Saving: Recovers waste heat to reduce boiler fuel usage by up to 10-15%.
Quick ROI: High efficiency ensures investment payback typically within 1 year.
Anti-Wear: H-fin design reduces flue gas abrasion, extending tube life.
Corrosion Safe: ND Steel (09CrCuSb) resists sulfuric acid dew point corrosion.
Less Ash: Optimized fin spacing prevents ash clogging and maintains flow.
High Transfer: Finned tubes offer 10x surface area vs plain tubes for cooling.
Custom Fit: Tailored dimensions to seamlessly retrofit existing boiler flues.
Leak Proof: High-frequency welding ensures 100% fusion rate between fins/tubes.
Pressure Ready: Designed and tested to withstand high operational pressures.
Eco Friendly: Lowers exhaust gas temperature to reduce environmental impact.
Technical Specifications

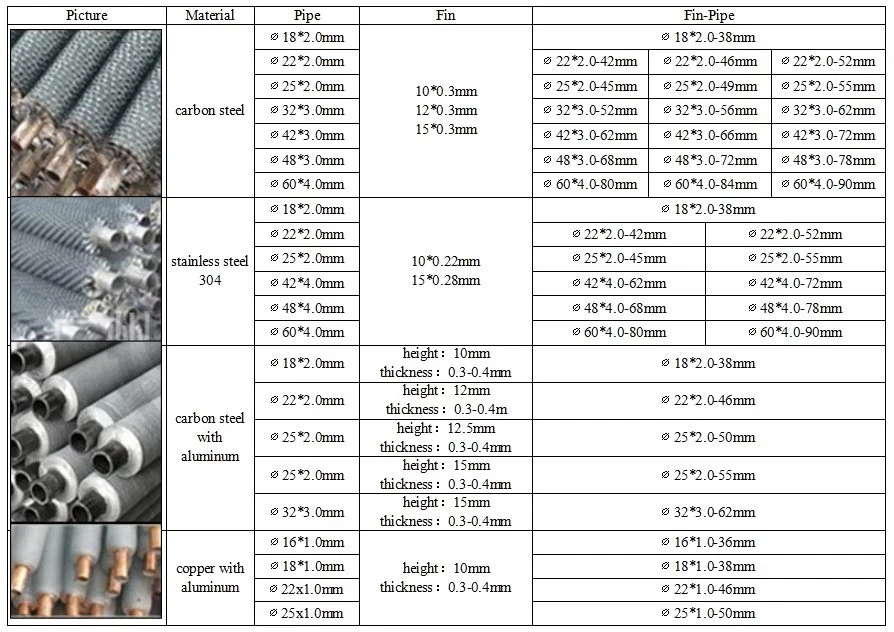

● Tube & Fin Material: Copper, CuNi, Stainless steel, Aluminium, Hot dip steel, Titanium
● Fin Technology: High-Frequency Welding / Laser Welding
● Thermal Efficiency: over 95%:
● Heat Transfer Area: 5–500 m² (customizable)
● Max Pressure: 0.5–4.0 MPa (72–580 psi)
● Airflow Capacity: 500–50,000 m³/h
● Max Operating Temp:Up to 800°C (Customizable)
● Pressure Drop (Air)50–300 Pa (0.2–1.2 inH₂O)
● Design Standard: ASME / GB / ISO 9001
● Heat Medium: Saturated Steam, Thermal Oil, Hot Water
Applications
● Coal Fired Power Plants
● Industrial Steam Boilers
● Natural Gas Heating Systems
● Textile Dyeing Factories
● Petrochemical Refineries
● Biomass Energy Plants
● Waste Incineration Facilities
● Waste Heat Recovery Ventilation
Key Features
2. High-frequency spiral fin welding for maximum thermal contact.
3. Modular design enables easy installation and maintenance.
4. Strict X-ray flaw detection on weld joints guarantees safety.
5.Customized thermal calculation support tailored to your boiler data.
Why Choose Us
Industry Coverage & Product Offerings
We supply a comprehensive portfolio of heat exchangers serving the industrial, food & beverage, HVAC, marine, air handling and cooling, petrochemical, power generation, and refrigeration sectors.
1) We offer full support from product design to manufacturing, working with your specifications or collaborating on custom designs.
2) Our products have been exported to multiple countries worldwide, including Israel, the USA, Germany, and Canada.
3) Ensure rapid response to your inquiries, typically replying within 24 hours. For urgent matters, please feel free to call us directly.
4) We are committed to delivering efficient service, reliable quality, and maintaining an excellent reputation.
5) OEM&ODM,We have heat exchanger design software which Guentner and Cabero are using, We offers tailor-made heating and cooling unit.
Engineering Design
We exclusively utilize HTRI and EDR design software from a renowned European software provider.
With 18 years of strategic partnership, we have successfully designed, manufactured, and exported heat exchangers to over 50 countries worldwide.
Customer feedback consistently confirms that actual cooling performance aligns precisely with theoretical design values.

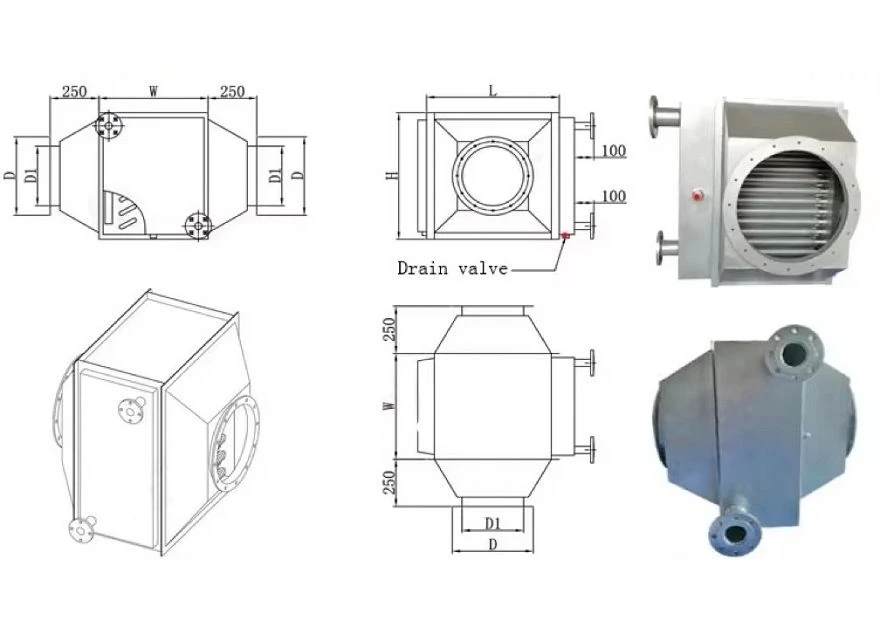

We can provide detailed drawing after your order. We can also provide Custom services .
|

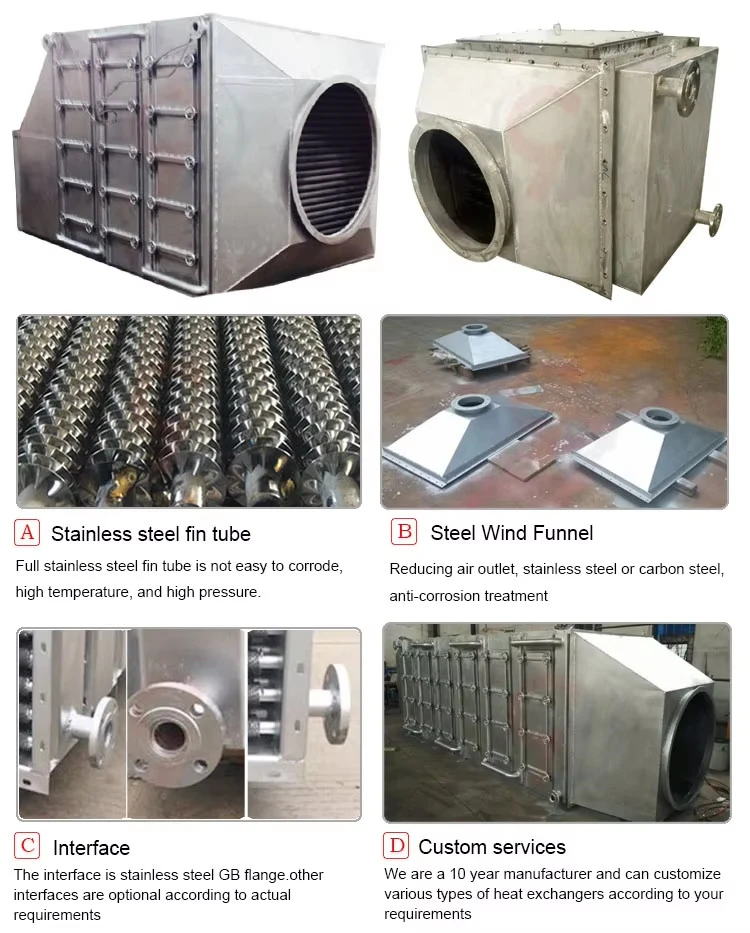

Our Boiler Economizer Features |
|
|
Performance Specifications |
● Heat Transfer Area: 5–500 m²(customizable) ● Max Steam Pressure: 0.5–4.0 MPa (72–580 psi) ● Steam Temperature: 100–500°C(212–932°F) ● Airflow Capacity: 500–50,000 m³/h ● Thermal Efficiency: over 95% ● Pressure Drop (Air): 50–300 Pa |
|
Heat Plates/Tubes |
● Material:：Copper, CuNi, Stainless steel, Aluminium, carbon steel, Titanium(customizable) ● Best For: Corrosive/High-Temp Steam |
|
Airside Fins |
● Material:：Aluminum, Corten Steel(customizable) ● Best For: Dusty/Acidic Airflows |
|
Gaskets/Seals |
● Material: EPDM, PTFE, Graphite ● Best For: Steam Leak Prevention |
|
Frame/Casing |
● Material: Carbon Steel (Painted),SS304 ● Best For: Structural Durability |
|
Testing |
Heat exchangers are supplied clean and tested at a pressure of 30 bars |
|
Customization Options |
● Explosion-Proof Design(ATEX/IECEx certified) ● Self-Cleaning Mechanisms(For dusty air applications) ● Hybrid MVR(Mechanical Vapor Recompression) Integration |
Customer Case Photos
Application: Marine Diesel Exhaust Heat Recovery
Material: Tube- Stainless Steel 304; Fin- Aluminum (with hydrophilic coating) Supply Power: 230V / 1P / 50Hz
Application: Hot Blast Stove Flue Gas Heat Recovery
Material: Tube & Fin- Corten Steel (ND Steel) Supply Power: 415V / 3P / 50Hz
Application: Chemical Process Gas Cooling & Steam Generation
Material: Tube- Stainless Steel 316L; Fin- 316L Supply Power: 400V / 3P / 50Hz
Application: Textile Tenter Frame Exhaust Heat Recovery
Material: Tube- Carbon Steel (galvanized); Fin- Aluminum Supply Power: 400V / 3P / 50Hz
Application: Food Sterilization Flash Steam Recovery
Material: Tube- Copper; Fin- Copper Supply Power: 480V / 3P / 60Hz
Application: Cement Kiln Exit Gas Heat Recovery
Material: Tube- Carbon Steel; Fin- Carbon Steel (Aluminized) Supply Power: 380V / 3P / 50Hz
Application: Sintering Furnace Exhaust Steam Recovery
Material: Tube- Alloy Steel (15CrMo); Fin- Stainless Steel 321 Supply Power: 380V / 3P / 60Hz
Application: Paper Dryer Condensate Cascade Heat Recovery
Material: Shell & Tube Heat Exchanger- Stainless Steel 304 Supply Power: 380V / 3P / 50Hz
Application: Gas Boiler Flue Gas Condensing Heat Recovery
Material: Tube- Stainless Steel 316L; Fin- Aluminum (with epoxy coating) Supply Power: 400V / 3P / 50Hz
Customer Feedback
Packing & Delivery
Standard packaging is wooden crates.
For exports to European countries, the wooden crates undergo fumigation treatment.
If container space is limited, we can switch to PE film packaging or accommodate special packaging requests from customers.
Our Manufacturing Plant
why choose our products
Shenzhen Hylita Heat Exchanger Co., Ltd.
Our headquarters is located in Shenzhen, with branch offices in Guangzhou, Tangshan, and Wuhan.
We supply a comprehensive portfolio of heat exchangers serving the industrial, food & beverage, HVAC, marine, air handling and cooling, petrochemical, power generation, and refrigeration sectors.
Heat recovery units( Boiler Economizers) are available in both direct-replacement models (100% compatible with OEM specifications) and fully customized configurations engineered to meet specific application requirements.
FAQ
1.Order Security & Online Transactions
Q: Can we order via Alibaba Trade Assurance for safety?
A: Yes, we highly encourage it! Trade Assurance secures your payment 100%. Combined with our 10-year manufacturing history , you can place your first order with total confidence.
2. Quality Control
Q: How do you ensure the quality before shipment?
A: Our reputation is built on 4 core quality pillars
✅ Experience: Specialized manufacturer since 2015 (10+ Years) .
✅ Certifications: ISO 9001:2015, CE, ROHS
✅ Assurance: 100% pressure testing on every unit before shipment
✅ Global Trust: Successfully serving clients in over 50+ countries .
3. Design & Calculation
Q: No drawing? Can you design for me?
A: Yes! We use HTRI software for precise sizing. Just share your operating data (Temp/Flow), and we will provide a professional design for your approval.
4. Minimum Order Quantity (MOQ)
Q: What is the MOQ? Can I place small order please ?
A: Small order is also welcome in our company.
5. Warranty Service
Q: How long is the warranty coverage?
A: We offer flexible warranty options to match your needs:
✅ Standard: 12-Month for all orders.
✅ Extended: Up to 24-Month for eligible customized orders (confirm with our team).
6. Customization
Q: Do you support OEM/ODM and custom branding?
A: Yes, full customization available . We support custom materials (Copper, SS304/316, Cu-Ni) and offer Laser Marking & Nameplates to feature your logo perfectly.
7. Service Commitment
Q: How do you keep me updated on my order?
A: We ensure 100% Process Transparency
✅ Double Confirmation: All specs verified before production starts..
✅ Visual Updates: We send photos/videos of the manufacturing progress.
✅ Document Review: Draft documents (B/L, Invoice) sent for your approval before final issuance to avoid errors.
8. Main Products
Q: What are your main products ?
A: We mainly produce air heat exchangers, surface coolers, evaporator coils, condenser coil, shell and tube heat exchangers, plate heat exchangers and other heat exchange equipment and all kind of finned tubes, heat exchange accessories, etc.
