Copper Brazed Plate Exchanger for HVAC & Industrial Use

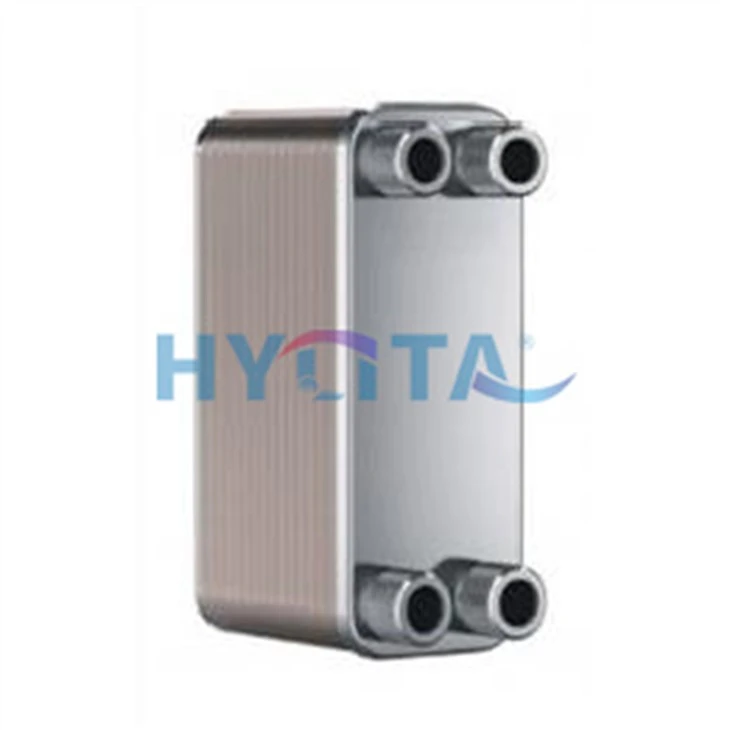

The titanium brazed plate exchanger excels in harsh chemical and marine applications, leveraging its corrosion - resistant titanium plates. Constructed using vacuum brazing technology, it achieves seamless joints between plates, eliminating the need for gaskets and ensuring leak - proof performance. The chevron - patterned plates create turbulent flow, enhancing heat transfer coefficients up to 10,000 W/m²K. With a working pressure of 25 bar and temperature range of - 200°C to 250°C, it handles aggressive fluids like seawater, brine, and acids. Ideal for desalination plants, offshore platforms, and chemical reactors, its compact design (50% smaller than shell - and - tube units) reduces installation space while maintaining high efficiency.
This copper brazed plate exchanger, designed for HVAC chillers, boasts high thermal conductivity and a compact build. Ideal for commercial buildings, it efficiently transfers heat in chilled water systems. It also excels in harsh chemical and marine applications, leveraging corrosion - resistant titanium plates and vacuum brazing for leak - proof, high - performance operation.
Product Details
Core Components & Materials
◆ Plates: Titanium plates (for chemical/marine) or copper - based (for HVAC). Titanium offers corrosion resistance; copper ensures high thermal conductivity.
◆ Brazing: Vacuum brazing technology creates a seamless, leak - proof joint between plates, eliminating gaskets and enhancing durability.
Performance Parameters
◆ HVAC Chillers: High thermal conductivity for efficient chilled water heat transfer in commercial buildings. Compact design saves installation space.
◆ Harsh Environments: Titanium plates resist aggressive fluids (seawater, brine, acids). Operates at pressures up to 25 bar, temperatures from - 200°C to 250°C, with heat transfer coefficients up to 10,000 W/(m²·K).
Application Scenarios
◆ Commercial HVAC: Chilled water systems in offices, malls, etc., for space cooling.
◆ Industrial & Marine: Desalination plants, offshore platforms, chemical reactors-handles corrosive fluids, compact (30% smaller than shell - and - tube) for tight spaces.
Key Advantages
◆ Dual - Use Efficiency: Works for HVAC chillers (copper - based) and harsh environments (titanium - plated), adapting to diverse thermal needs.
◆ Leak - Proof Reliability: Vacuum brazing removes gaskets, ensuring a seamless joint that withstands high pressure and prevents leaks.
◆ Corrosion Resistance: Titanium plates survive aggressive chemicals, seawater-ideal for marine/chemical applications.
◆ Space & Energy Savings: Compact design (30% smaller) reduces installation space; high thermal efficiency cuts energy use in HVAC and industrial processes.
Technical Compliance
◆ Meets HVAC industry standards for thermal efficiency and compactness. For marine/chemical, complies with corrosion - resistance and pressure - handling norms.
Packaging & Logistics
◆ Packaging: Protected with anti - corrosion materials (for titanium models) or cushioned wrapping (for HVAC models). Shipped in sturdy crates.
◆ Delivery: 7–18 days post - order. Freight options include specialized transport for industrial/marine units with titanium plates.
