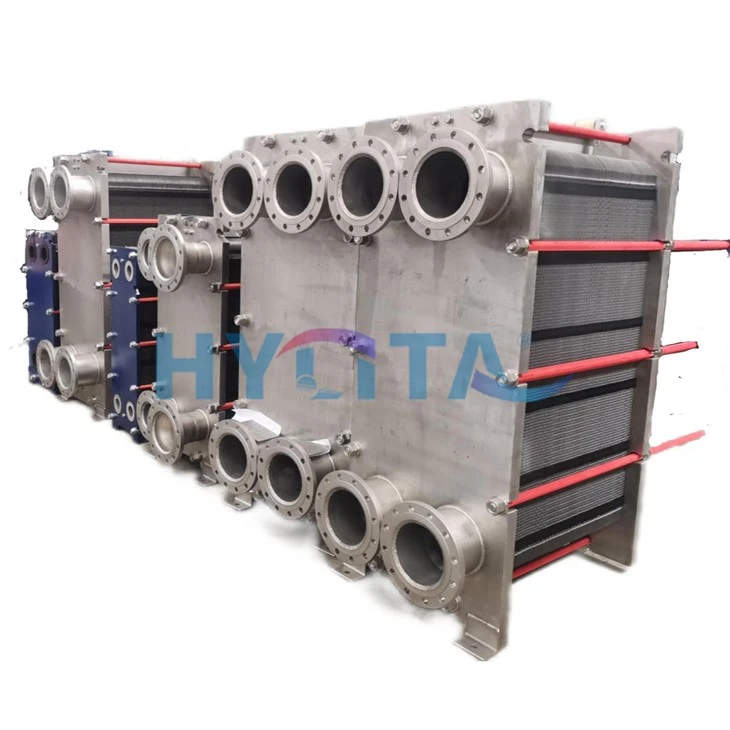

Plate Heat Exchanger with EPDM Gasket

Core Components & Materials

◆ Plates: 316L stainless steel corrugated plates. These precision - stamped plates increase the heat transfer surface area, leveraging the counterflow principle to maximize thermal exchange between steam and water.

◆ Gaskets: EPDM or NBR gaskets. Carefully bonded to the plates, they create a leak - proof seal, ensuring the integrity of the heat exchange process even under high - pressure conditions.

Performance Parameters

◆ Pressure Rating: Capable of withstanding pressures up to 2.5 MPa, making it suitable for industrial steam systems with high - pressure requirements.

◆ Temperature Range: Operates efficiently within a temperature range of - 20°C to 180°C, accommodating diverse industrial steam - to - water heat transfer needs.

◆ Heat Transfer Efficiency: The corrugated plate design and counterflow operation enhance thermal efficiency, enabling rapid heat transfer and minimizing energy waste in industrial processes.

Structural Design & Efficiency

◆ Counterflow Principle: Fluids flow through alternating channels between the plates in a counterflow pattern. This maximizes the temperature difference between the steam and water, resulting in highly efficient heat exchange.

◆ Compact & Serviceable: The compact design saves space in industrial setups, and the easy disassembly feature allows for convenient cleaning and maintenance, reducing downtime and ensuring continuous operation.

Application Scenarios

◆ Industrial Steam Systems: Ideal for use in factories to transfer heat from steam to water, supporting various industrial processes such as heating, cooling, and process temperature regulation.

◆ General Industrial Processes: Suitable for a wide range of industrial applications that require efficient steam - to - water heat transfer, contributing to energy - efficient operations.

Key Advantages

◆ High Thermal Efficiency: 316L stainless steel corrugated plates and counterflow design enable rapid heat transfer, minimizing energy loss in industrial steam systems.

◆ Durable & Leak - Proof: 316L stainless steel construction and carefully bonded EPDM/NBR gaskets ensure durability and a leak - proof seal, even under high pressure (up to 2.5 MPa).

◆ Wide Operating Range: Functions effectively within a temperature range of - 20°C to 180°C, adaptable to diverse industrial thermal management needs.

◆ Easy Maintenance: Compact design with easy disassembly allows for convenient cleaning and maintenance, ensuring long - term reliable operation.

Technical Compliance

◆ Complies with industrial standards for heat exchanger performance and safety. The 316L stainless steel plates and gasket materials meet requirements for durability, pressure resistance, and thermal efficiency in industrial steam - to - water applications.

Packaging & Logistics

◆ Packaging: Protected with industrial - grade anti - collision and corrosion - resistant materials. Shipped in sturdy crates to ensure the heat exchanger arrives in perfect condition for industrial installation.

◆ Delivery Time: Typically 8 - 18 working days after order confirmation, depending on order quantity. Shipping can be arranged via freight carriers experienced in transporting industrial equipment, ensuring timely delivery to factories and industrial facilities.
