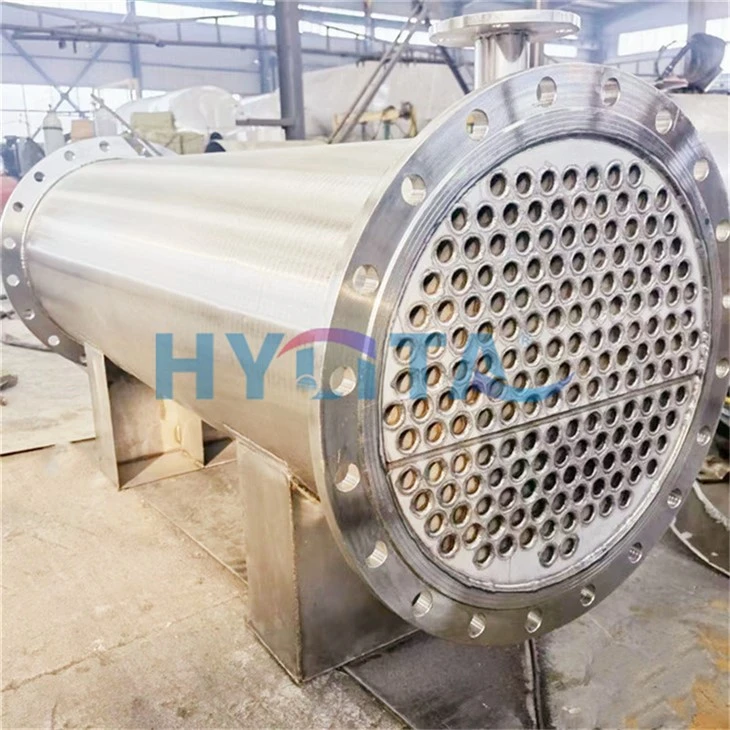

Pool Heat Exchange

Core Components & Materials

◆ Tube Material: 316L stainless steel tubes. These tubes are resistant to corrosive process fluids, ensuring durability and longevity in the harsh chemical environment.
◆ Shell Material: Carbon steel shell. It contains the cooling water and provides structural support for the tube bundle.

Performance Parameters

◆ Heat Transfer Coefficient: Ranges from 1000 - 1300 W/m²K. This enables efficient heat exchange between the process fluids and cooling water.
◆ Tube & Shell Dimensions: Tubes have lengths of 3 - 4 meters, and shell diameters range from 0.5 - 1.5 meters. This compact design makes it ideal for space - constrained chemical plant environments.

◆ Flow Rate & Temperature Control: Achieves a condensate flow design of 10 - 50 m³/h and maintains temperature control within ±1°C, ensuring precise operation in chemical processes.

Structural Design & Efficiency

◆ Tube Bundle Design: Utilizes a nested tube bundle configuration. This design is space - saving and allows for high thermal efficiency, making it suitable for critical chemical reactions where precise temperature control is essential.
◆ Operational Benefits: The compact shell - and - tube design ensures minimal fouling, reducing maintenance requirements. It provides high thermal efficiency, which is crucial for maintaining the integrity of chemical processes in reactors and distillation columns.

Application Scenarios

◆ Perfectly suited for chemical plants, especially in distillation columns and reactors. It condenses valuable solvents, facilitates heat transfer in chemical reactions, and ensures precise temperature control, which is vital for the quality and efficiency of chemical production processes.

Key Advantages

◆ Corrosion Resistance: 316L stainless steel tubes can handle corrosive process fluids, ensuring a long service life in harsh chemical environments.

◆ Space - Saving Design: The nested tube bundle configuration makes it ideal for space - constrained chemical plant settings, allowing for efficient use of available space.

◆ Precise Temperature Control: Maintains temperature control within ±1°C, ensuring the accuracy and reliability of chemical processes.

◆ High Thermal Efficiency: The design minimizes fouling and maximizes heat transfer, contributing to the overall efficiency of chemical production and reducing energy consumption.

Technical Compliance

◆ Complies with relevant industry standards for chemical process equipment. The use of 316L stainless steel tubes and carbon steel shells meets the requirements for corrosion resistance and structural integrity in chemical plant applications.

Packaging & Logistics

◆ Packaging: Protected with anti - corrosion and shock - resistant materials (e.g., plastic film, foam) to prevent damage during transportation. It is then placed in a suitable container, such as a wooden crate, for safe delivery.
◆ Delivery Time: Usually 8 - 18 working days after order confirmation, depending on the order quantity and customization needs. Shipping can be arranged via land, sea, or air freight as per customer requirements, with proper handling to ensure the product arrives in good condition.
