Compair Centrifugal Air Compressor Wb3000 Intercooler Aftercooler Air Cooler
Basic Info.
|
Production Capacity |
5000 |
|
Principle |
Partitioning Heat Exchanger |
|
Trademark |
Hylita Thermo |
|
Origin |
China |
|
Model NO. |
WB3000 |
|
Material |
Copper, Aluminum, Stainless Steel, Carbon Steel |
|
HS Code |
841990 |
|
Specification |
1.3m³/PC; |
|
Style |
Cast-In Type |
|
Maintanance Means |
Removable Tube Bundle |
|
Heat Exchanger Type |
Plate Finned Tube Type |
|

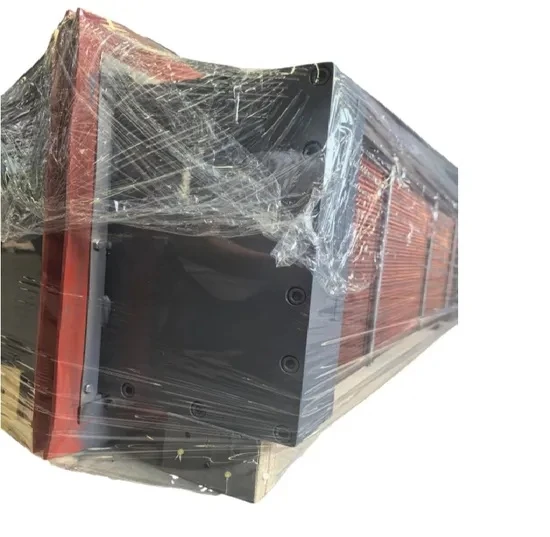

Transport Package |
Seaworthy Wooden Box |
|
Application |
Cooler |
|
Working Mediums |
Between Hot Air/Gas&Cold Water |
|
Certification |
CE, ISO, RoHS, ASME, Cutr |
|
Materials |
Copper Tubes, Aluminum Fins,Copper Tubesheet |
Product Description

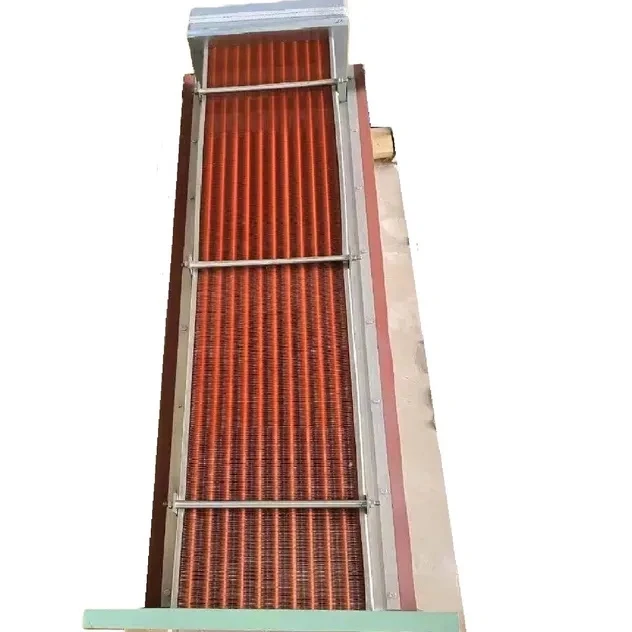

High-performance air compressor cooler(heat exchanger)
Our high-performance air compressor cooler(heat exchanger) is engineered for durability, efficiency, and versatility in air compressors,gas compressors,air expanders,air seperation equipments,air dryers,etc.Designed with advanced technology,testing data and robust materials, this cooler ensures superior cooling effection,and power efficiency. Suitable for different industry applications, it delivers exceptional performance in diverse working conditions.
Applications
1.Air/gas compressors: centrifugal air compressors,screw air compressors(use water to cool hot air)
2.Air seperation equipment:cooling down the hot air
3.Refrigeration dryer:cooling down the hot air
4.Air/gas expander:cooling down the hot air
5.Ship engines:cooling down the hot oil
6.Power plant:cooling down the hot air
Applicable senarioes: fuel gas boosting ,oil & gas, carbon capture, hydrogen, air separation, pneumatic tools, chemical/petrochemicals, iron & steel, power generation, mining, and RNG, general manufacturing, natural gas processing.
Many businesses rely on centrifugal compressors for their everyday production capacity. Their design is inherently robust and well-suited for continuous operation. It makes them a great choice for various industrial uses and applications, such as: fuel gas boosting ,oil & gas, carbon capture, hydrogen, air separation, pneumatic tools, chemical/petrochemicals, iron & steel, power generation, mining, and RNG, general manufacturing, natural gas processing. The most common gasses handled by centrifugal gas compressors are: natural gas, refrigerants, ethylene, propylene, CO, CO2, and nitrogen.
Key Configurations

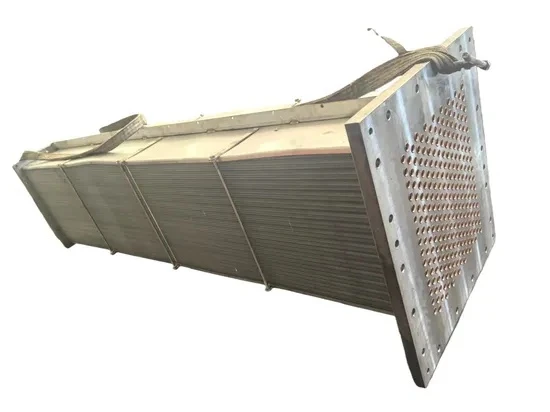

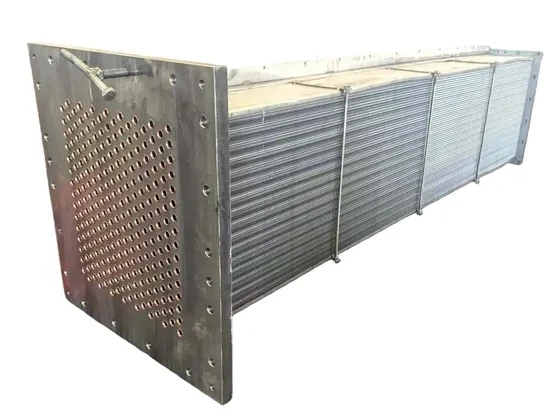

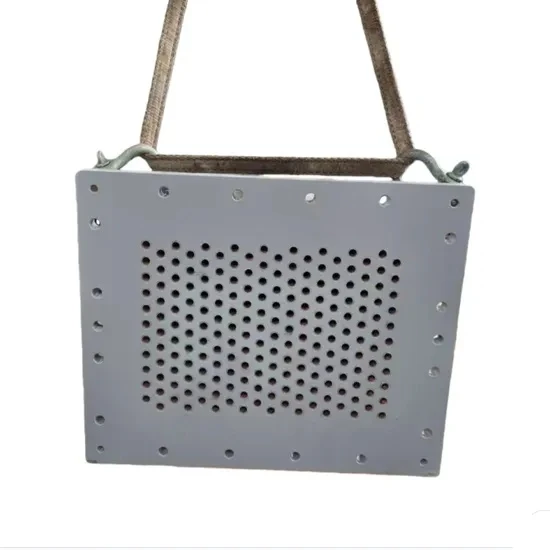

Tube sheets: front tube sheet and back tubesheet which passed through tubes, and strengthen the tube bundle in whole one part;
fins: the key element to enlarge heat transfer areas and improve heat transfer efficiency exponentially;
Tubes: contains flowing water which will take away heat from hot air or gas

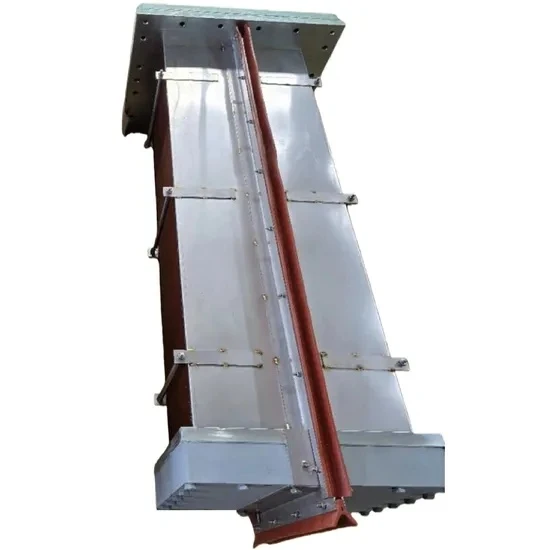

Shell: the key part for installing tube bundles, and seperate air passes and water passes.
Materials for choices:
tubesheets: carbon steel, SS, or copper
tubes: SS(stainless steel), copper, or alloy tubes
fins: copper, aluminium, SS or alloy fins;
shell: carbon steel or SS
Technical Specifications
(Custom configurations available upon request.)
|
Technical Specification |
WB300/600 |
WB700/1120 |
WB2000 |
WB3000 |
|
|
Suction Flow |
[m/hr) |
2,300~5,200 |
5,300~13,000 |
13,000~20,000 |
21,000-30,000 |
|
Pressure |
[kg/cm2.g) |
3~25 |
|||
|
Motor |
(kW) |
130~2.700 |
|||
|
Dimension |
(L)mm |
3,200 |
3,800 |
5,000 |
5,500 |
|
[W)mm |
2,200 |
2,200 |
2,600 |
3,000 |
|
|
[H]mm |
1,800 |
2,500 |
2,600 |
3,500 |
|
|
Weight (Kg) |
6,000~7.500 |
8,000~12.000 |
20.000~22.000 |
24,000~28.000 |
|
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for downloadhereor upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
- Standard Warranty:12 months since operating or 18 month after delivery (whichever comes first).
- Extended Warranty:Optional coverage up to 36 months.
- Global Support:24/7 technical assistance and spare parts supply.
- Training:On-site or remote operation/maintenance training.
Company Profile
Shenzhen Hylita Heat Exchanger Co.,Ltd
Shenzhen Hylita Heat Exchanger Co.,Ltd is a professional heat exchanger manufacturer, specialized in air coolers and oil coolers suitalble for big brand air compressors, such as Atlas Copco, Ingersoll Rand,Cameron, IHI-sullair, Samsung(Hanwha), FS-Elliott,CompAir, SeAH, Hitachi, kobelco,etc.
Besides, we can also design and fabricate specific heat exchangers basing on customer requests, providing with certificate such as PED, ASME, CU-TR, DOSH, IBR and MOM, backed by R&D innovation and strict quality control. Our products are widely applied in air compressors,air separation equipments, air/gas purification equipments and compressor waste heat recovery systems
Why Choose Us?
Standard Warranty: 12 months since operating or 18 month after delivery (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Service Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Other Products
Heat exchanger for process gas compressor
Water cooler for refrigerant dryer
Ship engine intercooler(air cooler, oil cooler)
Power plant air cooler,oil cooler
heat exchanger for waste heat recovery plant/system
