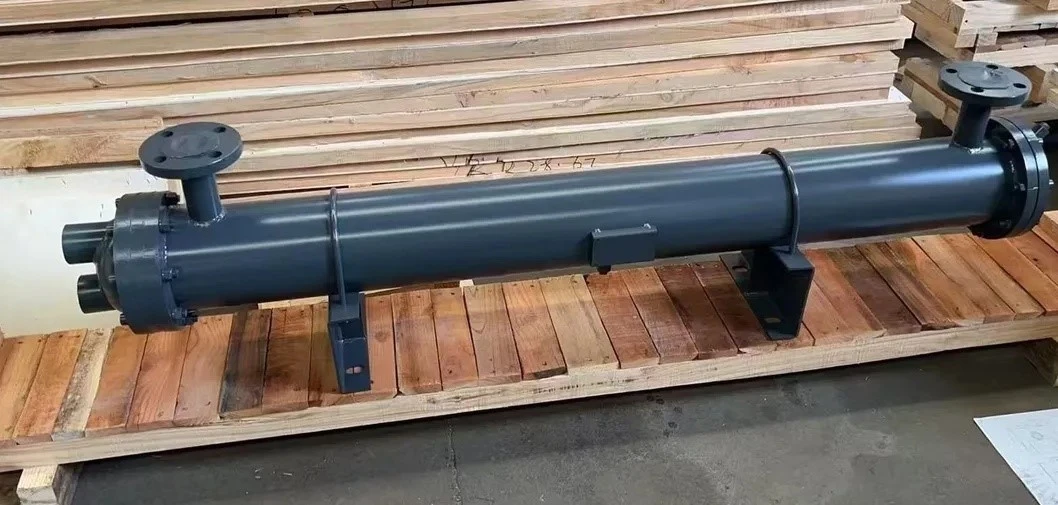

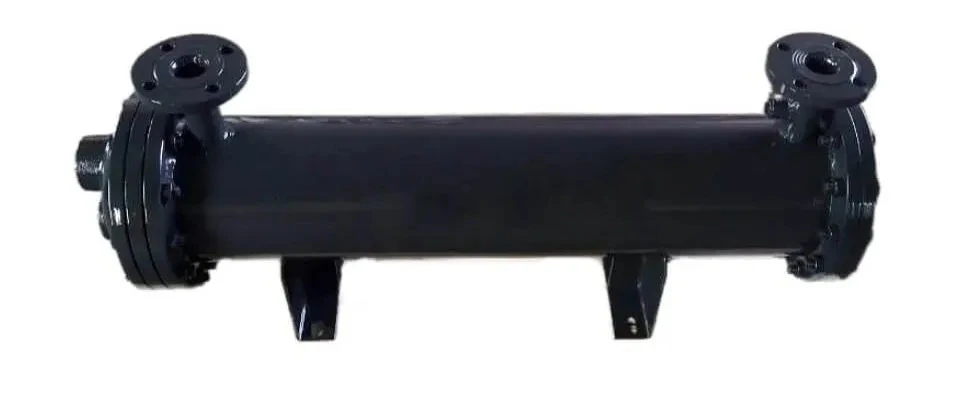

Seah Air Compressor Chorus Series Copper Tube Heat Exchanger Oil Cooler
Basic Info.
|
Trademark |
Hylita Thermo |
|
Origin |
China |
|
Model NO. |
CHORUS 60 /90/150/200/250/450/650/CHORUS1000 |
|
Materials |
Copper Tubes, Aluminum Fins or Copper Fi |
|
Specification |
0.3~0.6m³/PC; |
|
HS Code |
841990 |
|
Production Capacity |
10000 |
|
Heat Exchanger Type |
Shell and Tube Type |
|
Maintanance Means |
Removable Tube Bundle |
|
Transport Package |
Seaworthy Wooden Box |
|
Principle |
Use Cold Water to Cool Hot Oil |
|
Application |
Cooler |
|
Working Mediums |
Between Hot Oil and Cold Water |
|
Style |
Drum Type |
|
Certification |
CE, ISO, RoHS, ASME, Cutr |
|
Material |
Copper or Stainless Steel Tubes |
Product Description
Innovative Performance & Design
Featuring Inter & After cooler and Lub. Oil systemstructurally separated from compressor core unit,it also provides:
-Simple and compact design and noise minimizedoperation by adopting sound enclosure(option)
Featuring 100% oil free and contamination free compressed air, it also provides:
-Complete structural separation betweenlubricating and air compressing parts
Maximum efficiency and quality safety is achievedby:
-High efficiency aerodynamic design based onstage-of-the-art computer simulation methods
-Adoption of the best quality components
-Reliability verification by 115% over speed spin test
-Plug & play provides economic and quick installation
-By immediately available single packaging designintegrated with after cooler
Easy Maintenance
By adopting horizontal splittype gear cases, bearings,and air & oil seals;
Convenient and speedymaintenance by adoptingstraight type water in-tube bundles for inter& aftercooler;
Innovatively reduced hoursof maintenance by moduletype design applied forall major components.
Indefinite Durability
By implementing strict qualitycontrol and test for all themain components
Achieving impeccabledurability and stability byestablished strict qualityassurance system forcompression capabilityessential for stable operation.

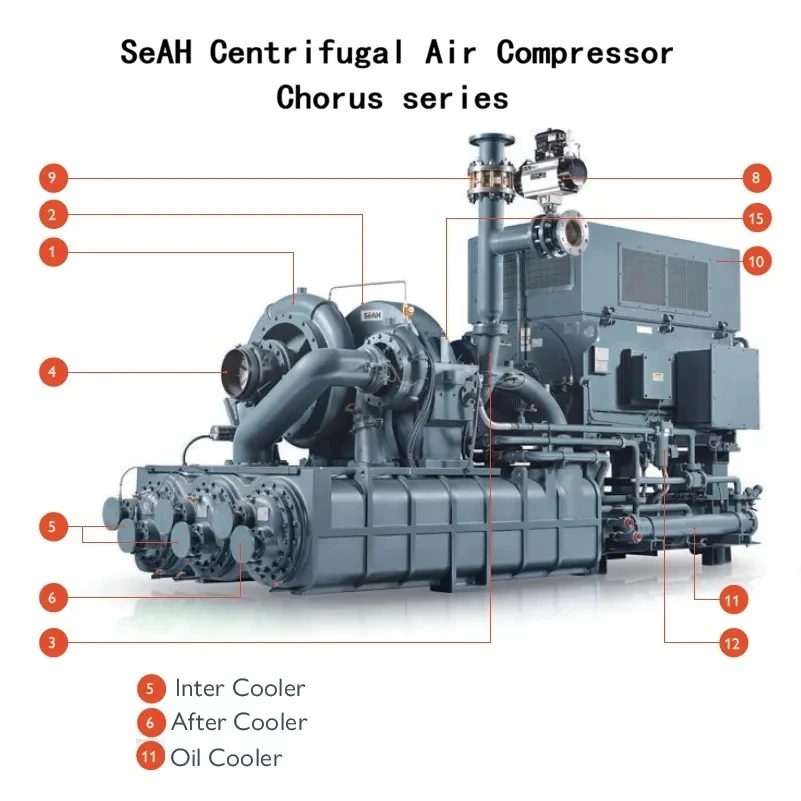

The oil cooler matches withSeAH Chorus series centrifugal air compressor.

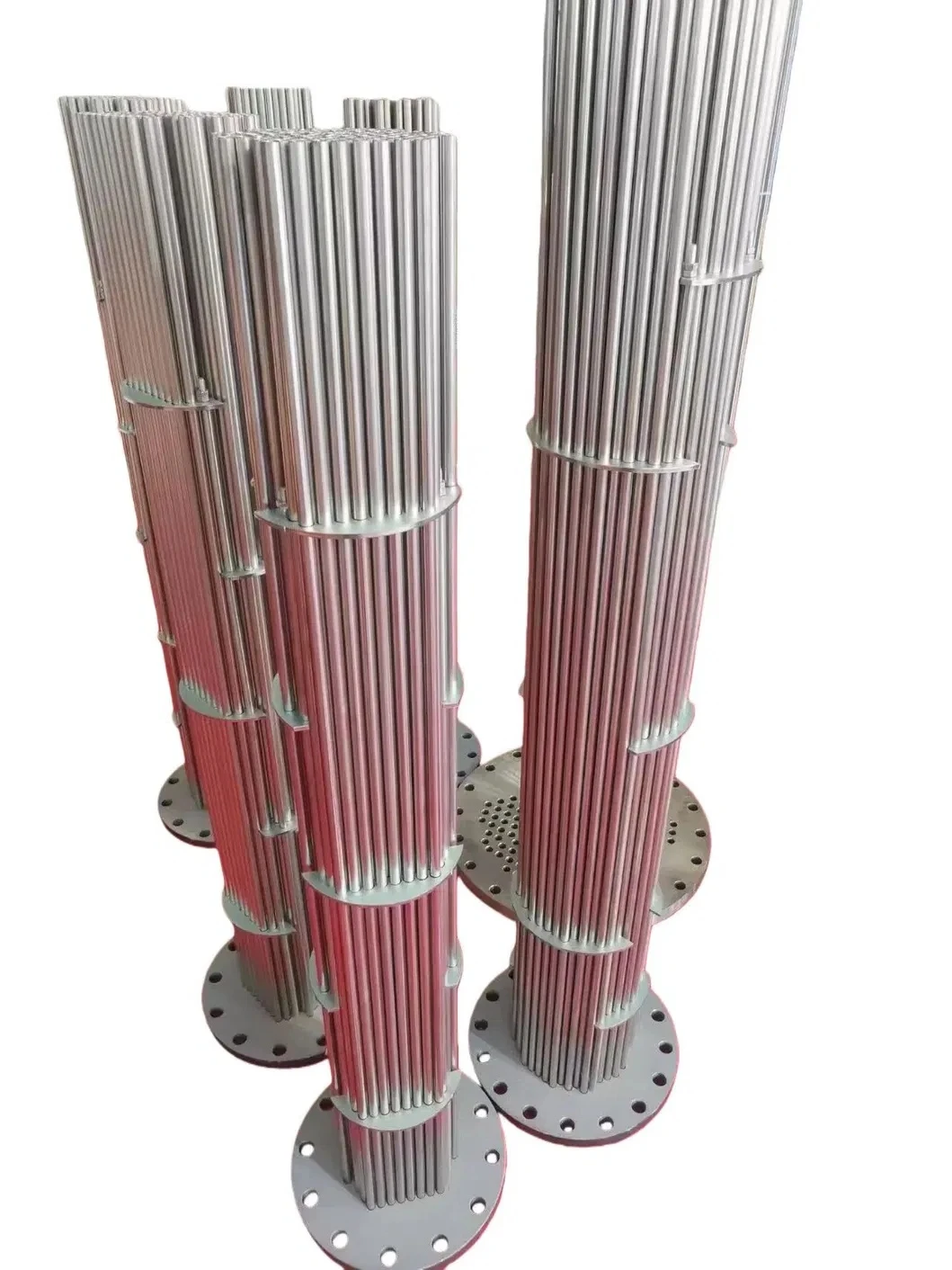

Materials: copper or stainless steel tubes with aluminum fins or copper fins. the fins can be pure aluminum/copper, or phenolic resin coated fins which is more durable.
Technical specification
|
Description |
CHORUS 60 |
CHORUS 90 |
CHORUS 150 |
CHORUS 200 |
CHORUS 250 |
CHORUS 450 |
CHORUS 650 |
CHORUS 1000 |
|
Capacity(lm/hr) |
2,300 |
5,500 |
8,500 |
15,000 |
20,000 |
25,000 |
41,000 |
50,000 |
|
Discharge Pressure |
3~ 25 |
3~40 |
3~80 |
|||||
|
Motor(Kw) |
150~6,000 |
TBD |
TBD |
|||||
|
W Dimension D (mm) |
3,600 |
4,000 |
4,600 |
4,900 |
5,000 |
5,300 |
7,500 |
TBD |
|
1,900 |
2,100 |
2,100 |
2,150 |
2,200 |
3,000 |
3,500 |
TBD |
|
|
2,000 |
2,200 |
2,500 |
2,550 |
2,600 |
3,200 |
4,000 |
TBD |
|
|
Weight(kg) |
7,200 |
8,000 |
10,000 |
19,000 |
22,000 |
24,000 |
29,000 |
TBD |
