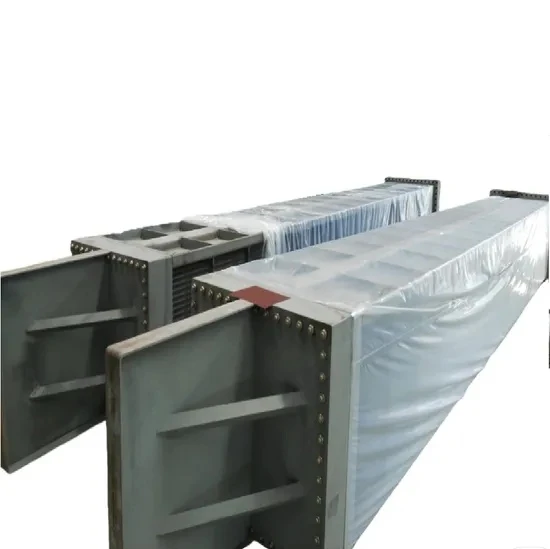

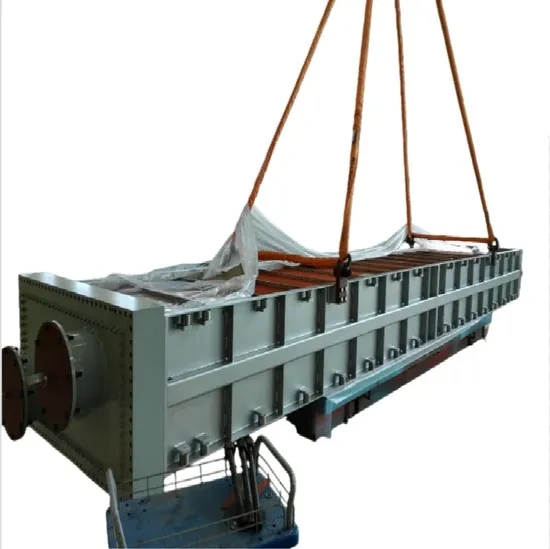

Siemens Centrifugal Air Compressor Cooler Heat Exchanger
Basic Info.
|
Principle |
Partioning Heat Exchanger |
|
New Application |
The Cooler Can Recover Waste Heat |
|
HS Code |
841990 |
|
Materials |
Copper Tubes, Aluminum Fins or Copper Fi |
|
Style |
Drum Type |
|
Maintainance Means |
Movable and Easy Cleaning |
|
Trademark |
Hylita Thermo |
|
Origin |
China |
|
Material |
Copper, Aluminum, Stainless Steel, Carbon Steel |
|
Application |
Cooler |
|
Working Mediums |
Between Hot Air/Gas&Cold Water |
|
Specification |
6M3 |
|
Heat Exchanger Type |
Plate Finned Tube Type; Shell&Tube Type |
|
Model NO. |
STC |
|
Certification |
CE, ISO, RoHS, ASME, Cutr |
|
Transport Package |
Seaworthy Wooden Box |
|
Maintanance Means |
Removable Tube Bundle |
|
Production Capacity |
5000 |
Product Description
We can make Siemens centrifugal air compressor coolers with your provided drawings of exact models.
Several process stages and side streams can be included in each casing depending on process requirements, including intercooling. All compressor internals are arranged as a bundle that can be pulled horizontally out of the casing to allow easy access for inspection and maintenance. This configuration eliminates the need to remove gas piping. Depending on process specifics, optional adjustable inlet guide vanes in front of the first impeller can optimize energy efficiency under part load conditions.
Evolving from our world class DATUM and STC centrifugal compressors, meet the STC-SVm. The STC-SVm platform incorporates the best of the best technologies from our existing compressor portfolio combining well proven components with cutting edge features.
Vertically split single-shaft compressors (barrel type) cover a wide performance range in terms of volume flow and pressure ratio with up to 1,000 bar / 14,500 psi discharge pressure. They allow for ultra-low suction temperatures (down to -160 °C / -256 °F) required for LNG boil-off gas service.

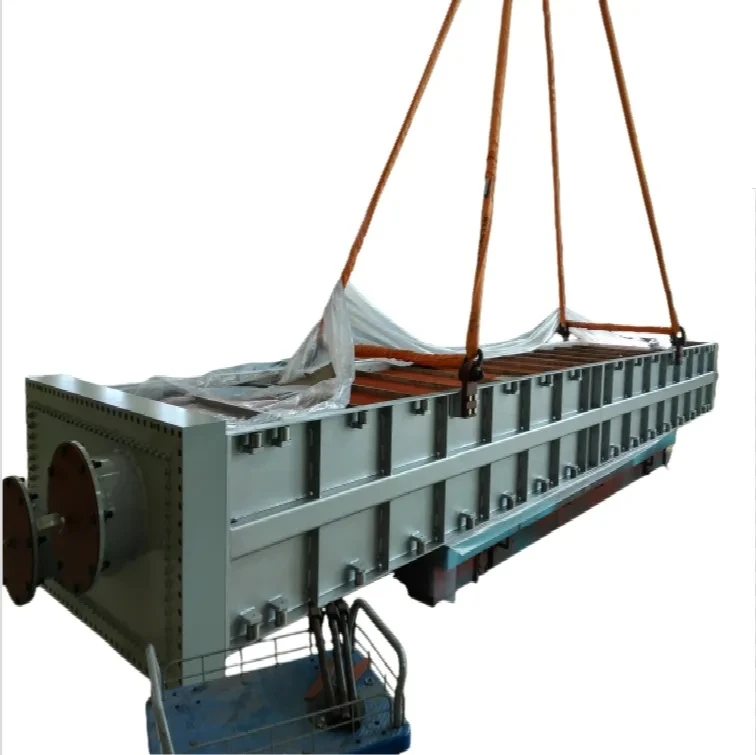

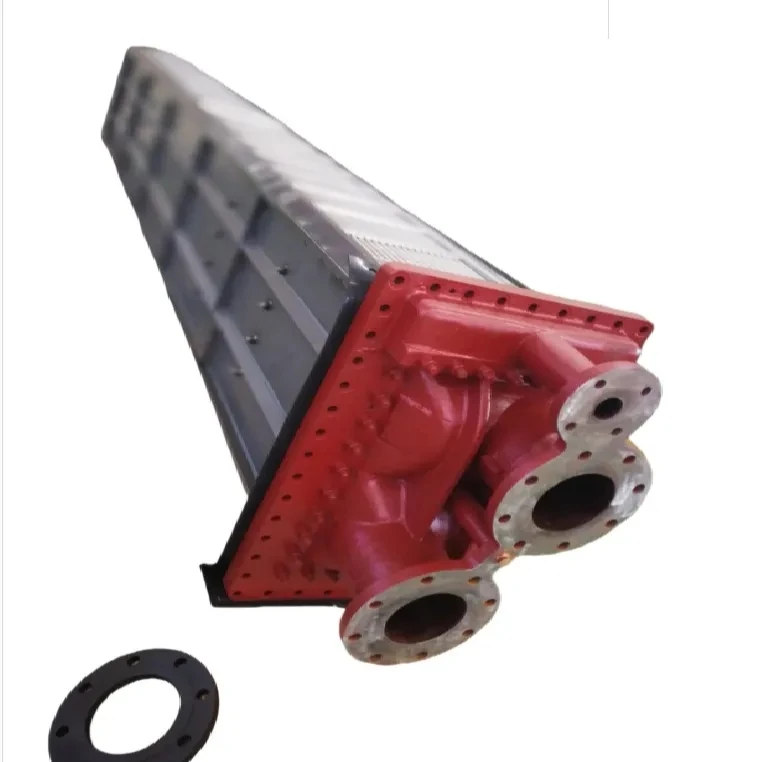

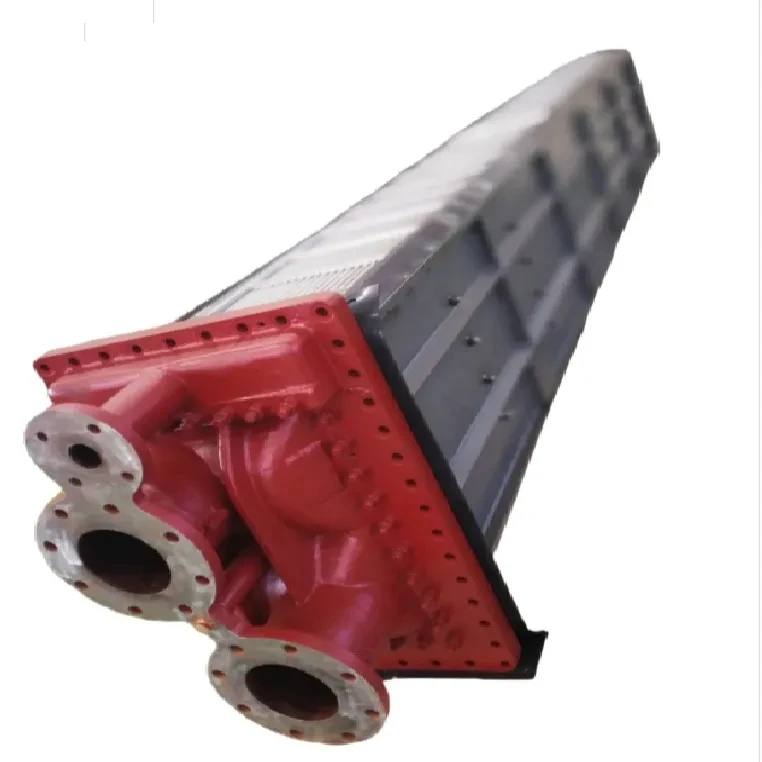

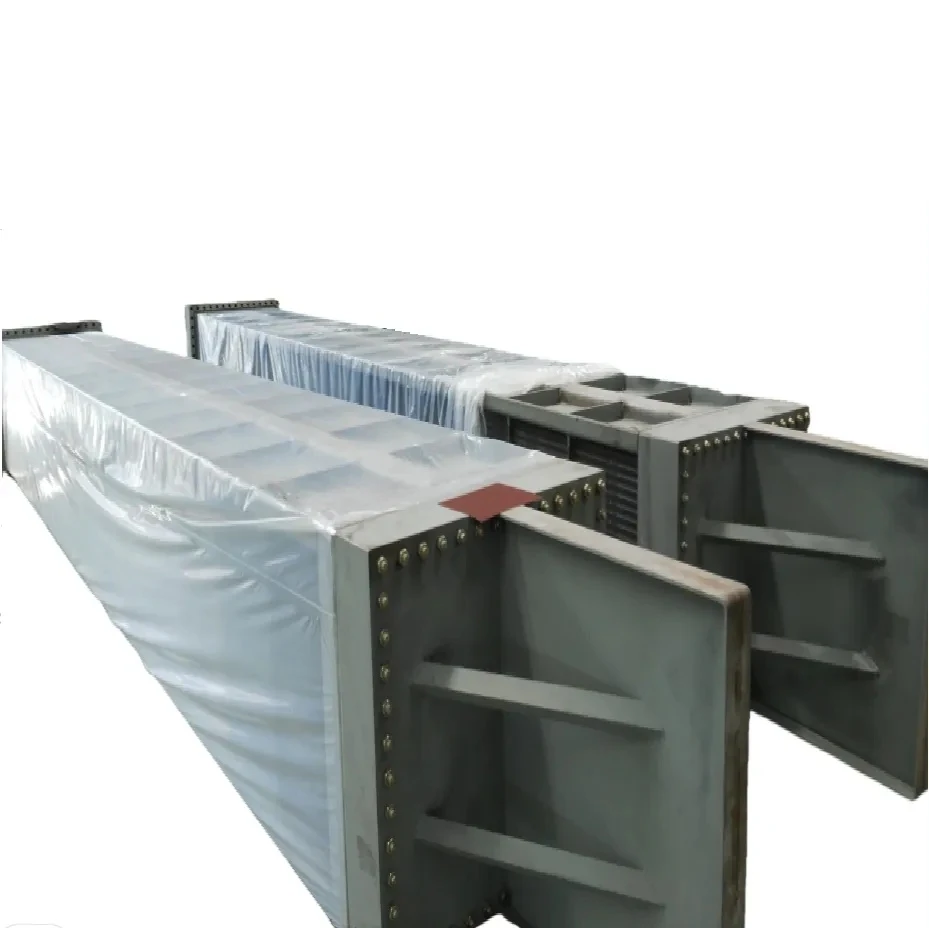

Siemens centrifugal air stage coolers from stage 1 to the last stage of all series centrifugal air compressor.

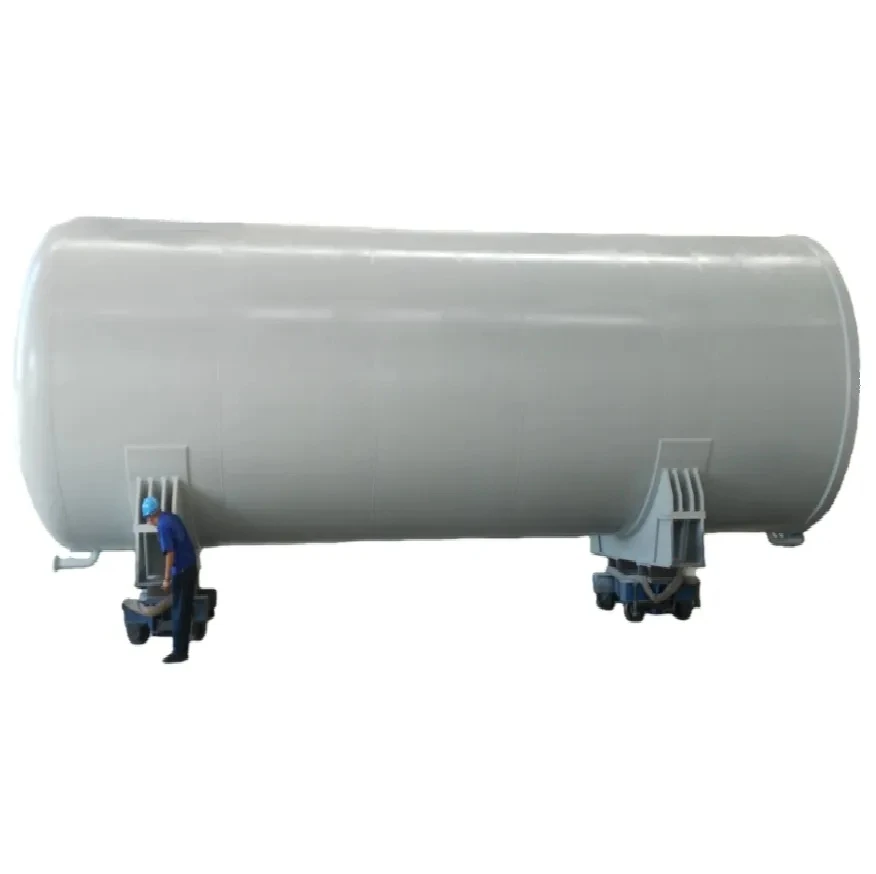

Materials: copper tubes, copper fins, copper tubesheets. the fins can be pure copper, or phenolic resin coated copper fins which is more durable.If with shell, the shell is carbon steel of ASME CODE.
