Mainly use for:
General hydraulic system, lubricating system, gearbox (large reduction box) and so on in indoor environment.

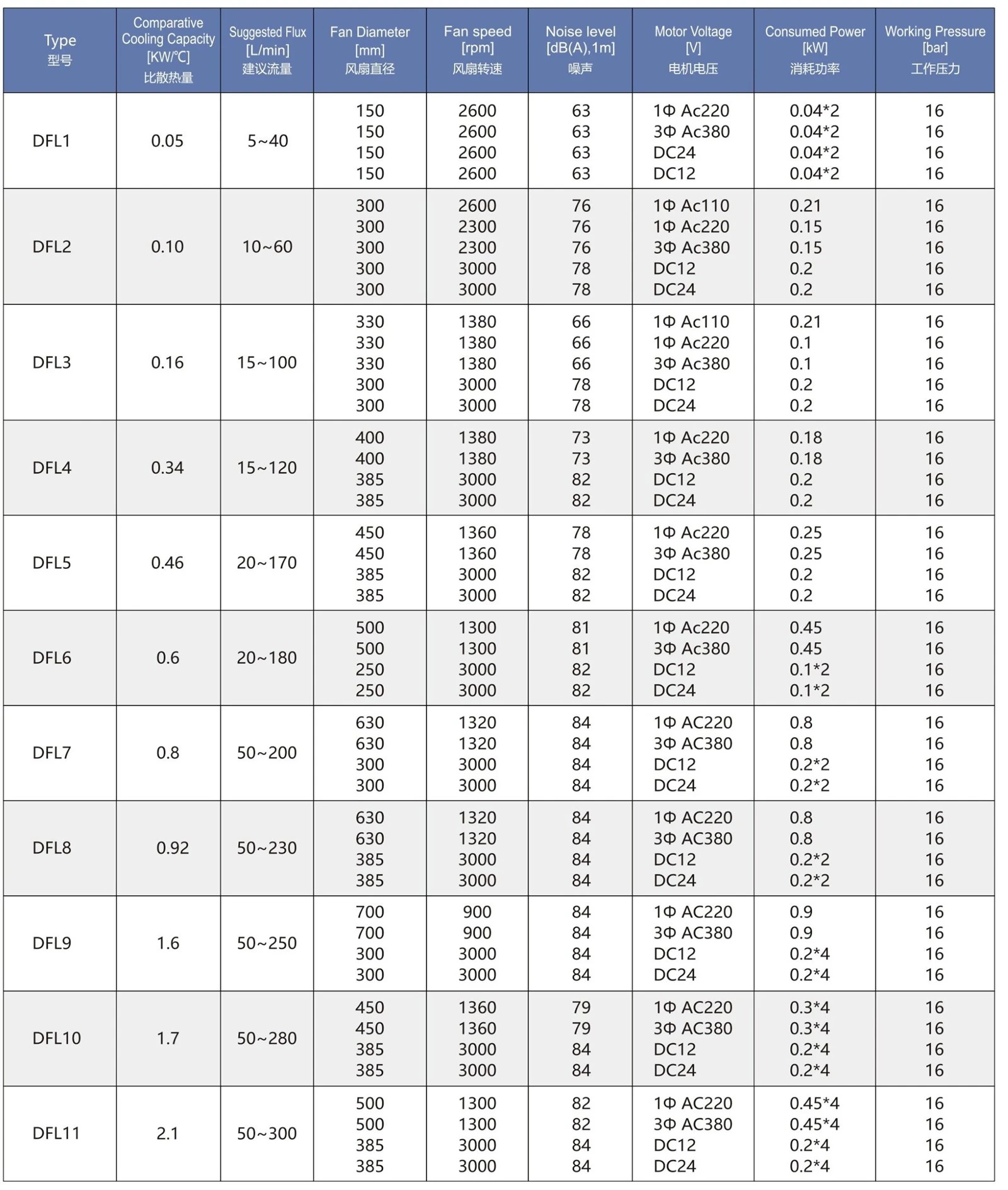

Technical data:
- Maximum static pressure:16 Bar (ones of higher pressure can be custom made)
- Rated inlet tempreture:70℃ (below 300℃ can be custom made)
Radiator material:
Copper, stainless steel can be custom made

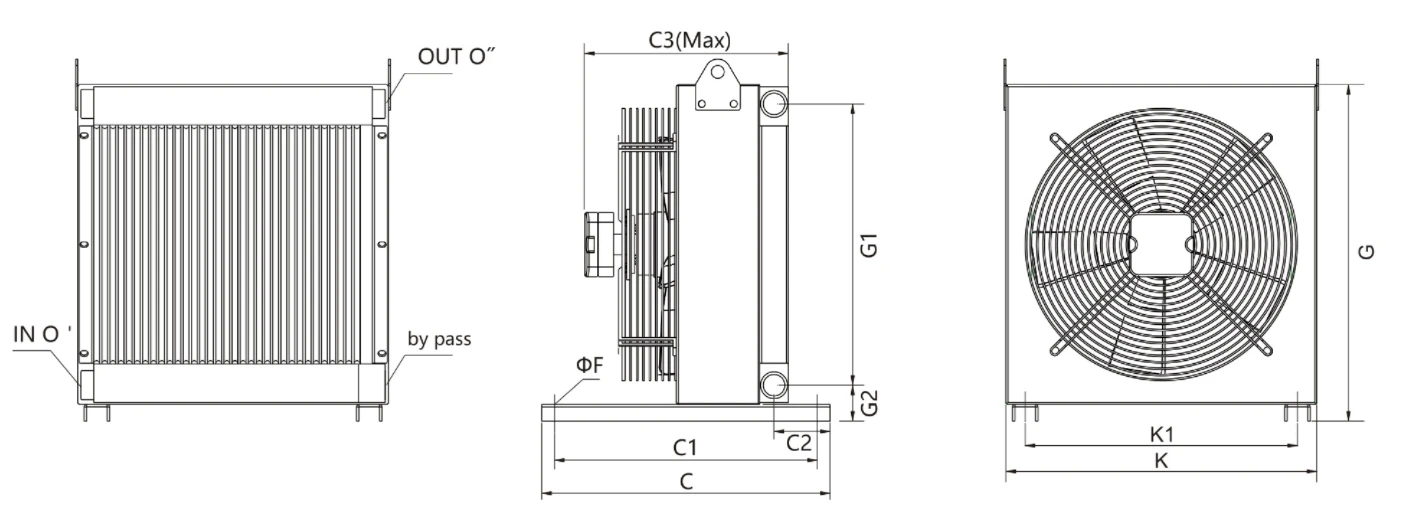

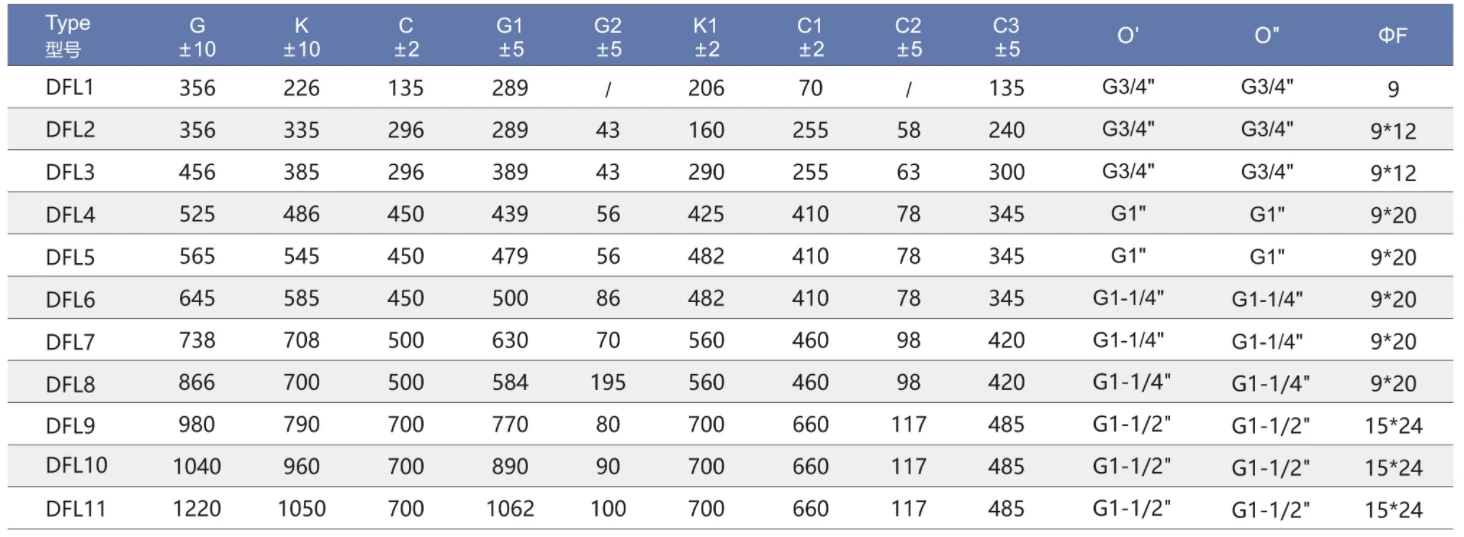

Dimensions:
Make sure you can select the right cooler, please contact us
Technical Data:
In order to avoid cracking , when a cooler is installed in the return oil circuit, a bypass unloading valve must be parallely connected. And make sure the unloading valve can be opened preferentially when the decompression valve reaches the pressure peak. If there is a pulse in the return oil of system or the oil flow is very big, suggest to choose the self-circulating cooling system from Shenzhen Hylita, so that you can keep the whole system stable and reliable.
