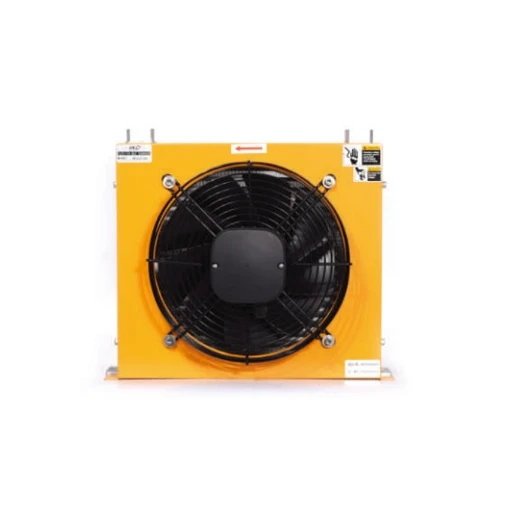

Oil Cooler air Compressor Oil Cooler Heat Exchangerwith 24v Fan
Highlights at a glance:
Air-Cooled Aluminum Hydraulic Oil Radiator Heat Exchanger Hydraulic Air Oil Cooler with Fan This oil cooler radiators are made of aluminum alloy material with light weight, good seismic intensity, high heat transfer efficiency. In the structure, channel, adopt efficient fin, the maximum increase the heat transfer area, increase the total heat transfer coefficient.
- All aluminum build core
- German seamless welding process
- Pure copper high-power waterproof motor
- Perfect Electrostatic spraying surface
- Direct Manufacturer
Mainly use for:
General hydraulic and lubricating systems, gearbox (large reduction box), and so on, which work in indoor environment.

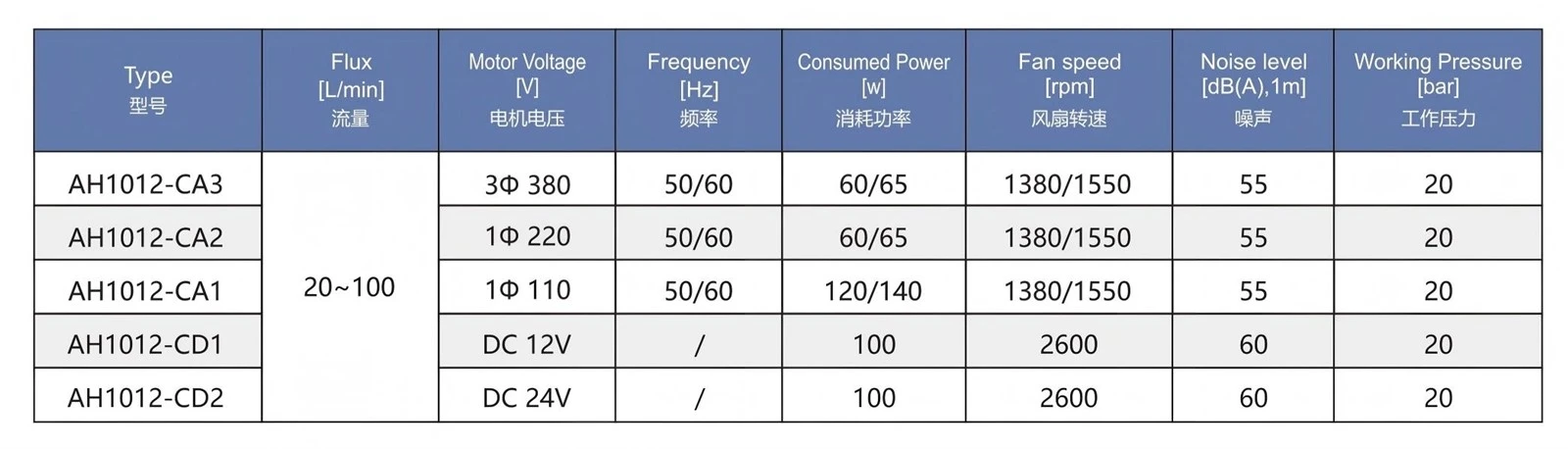

Technical data:
- Maximum static pressure:16 Bar (higher pressure options can be custom made)
- Rated inlet tempreture:70℃ (below 300℃ can be custom made)
Features:
- Meet the requirements of explosion-proof grade EXdI,EXdII;
- Meet the MA explosion-proof requirements;
- Motor selection Nanyang Wete or the same class brand;
- Experience in nuclear power plant lubrication cooling application;
- Standard with built-in pressure bypass valve.
Radiator material:
Copper, stainless steel can be custom made

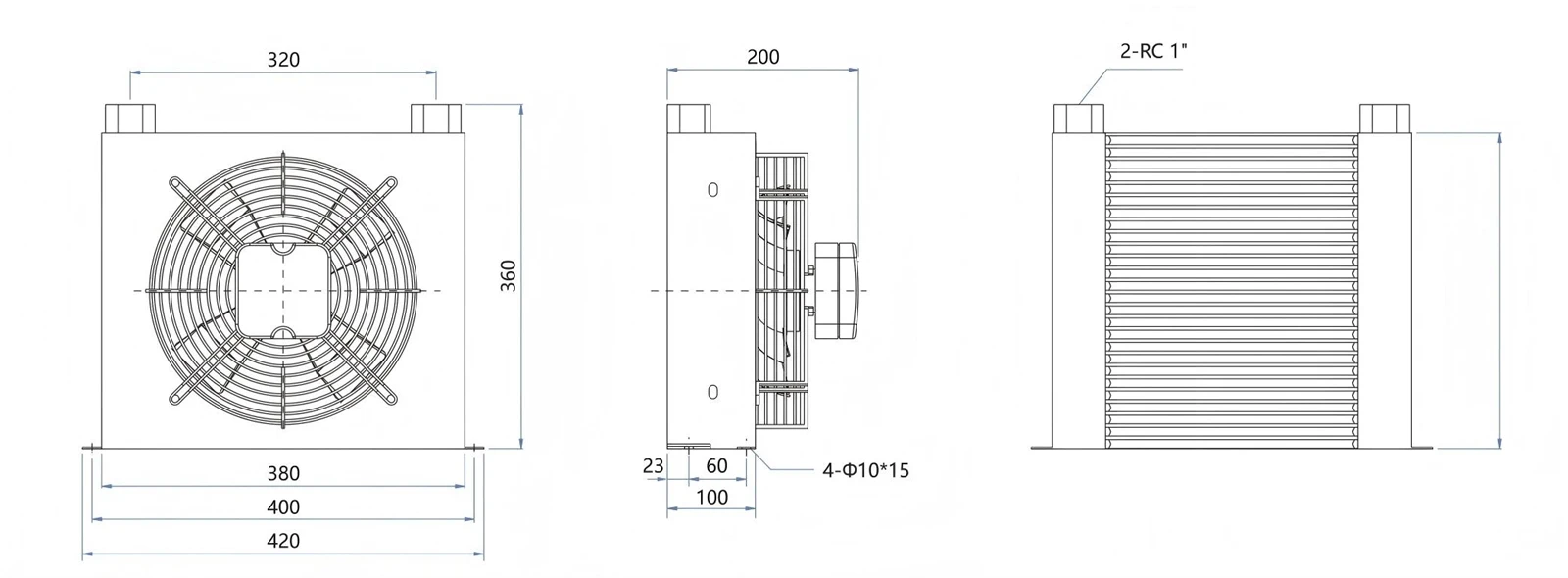

Dimensions:
Make sure you can select the right cooler, please contact us

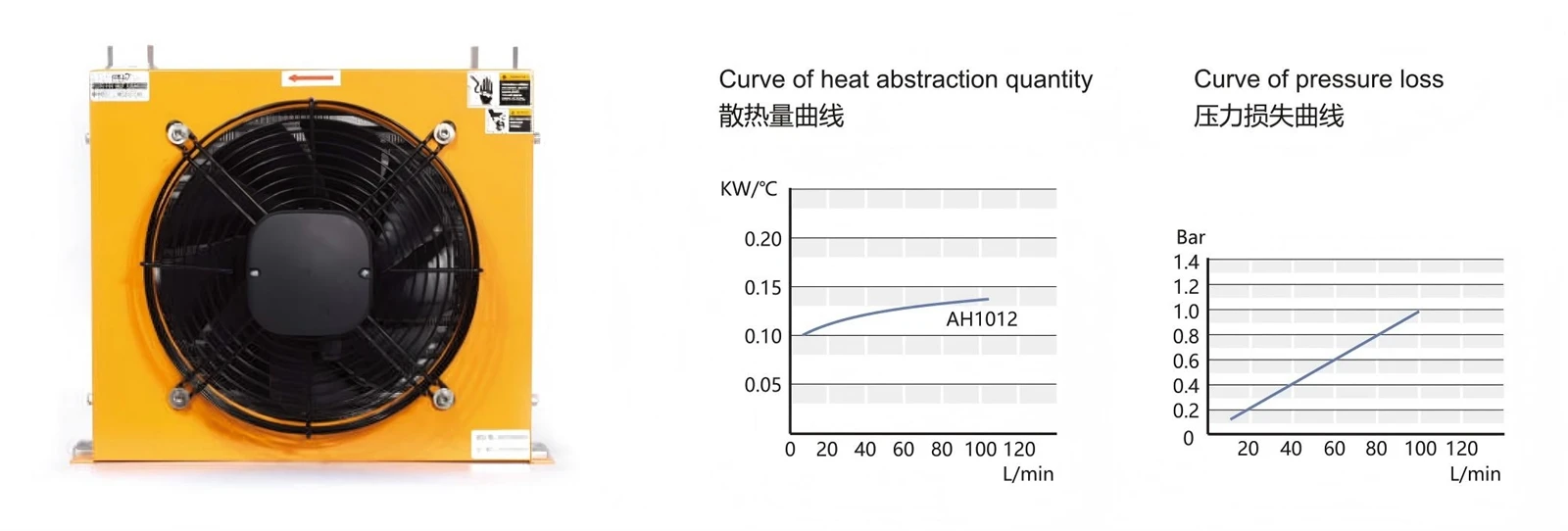

Technical Data:
In order to avoid cracking , when a cooler is installed in the return oil circuit, a bypass unloading valve must be parallely connected. And make sure the unloading valve can be opened preferentially when the decompression valve reaches the pressure peak. If there is a pulse in the return oil of system or the oil flow is very big, suggest to choose the self-circulating cooling system from Shenzhen Hylita, so that you can keep the whole system stable and reliable.
