Heat Energy Recovery

Basic Information

◆ Place of Origin: China
◆ Brand Name: [Customizable, e.g., EcoTherm]

◆ Certifications: ASME BPVC, ISO 9001, GB/T 151 (National Standard for Heat Exchangers)
◆ Model Number: EHE - B2025 (Exhaust Heat Exchanger - Boiler 2025 Series)

Product Overview

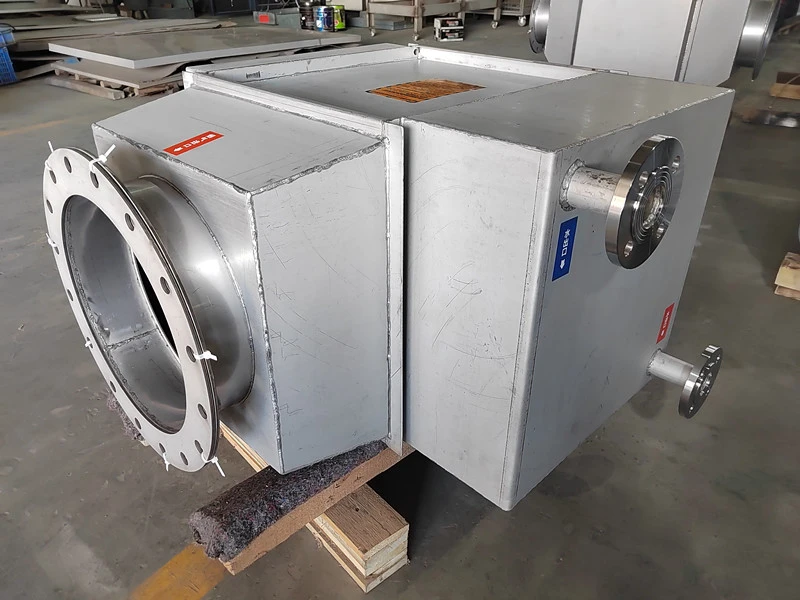

◆ This exhaust heat exchanger, integrated with a vapour economizer for boilers, recovers heat from 400°C flue gases to preheat combustion air. Designed for refinery furnaces and power plants (coal - fired, gas, biomass), it optimizes energy use, reduces fuel consumption, and enhances overall plant efficiency.

Key Specifications

◆ Construction Materials
Tubes: Corrosion - resistant stainless steel (SS 310S/316L). Withstands aggressive condensates and acidic environments from flue gases.
Shell: High - strength carbon steel (optional: alloy steel for extreme temps). Ensures structural integrity under high - pressure operations.
◆ Performance Parameters
Pressure & Flow: Operates at pressures up to 10 MPa, handling high - volume steam flows with minimal pressure drop.
Heat Recovery & Efficiency: Preheats feedwater by 50–80°C, improving plant efficiency by 3–5%. Reduces boiler fuel requirements, extending equipment lifespan.

Design & Functionality

◆ Vapour Economizer Integration
The exchanger recovers waste heat from 400°C flue gases, using it to preheat combustion air/feedwater. This reduces the boiler's fuel demand, cutting energy costs and carbon emissions.

◆ Corrosion Resistance & Durability
Stainless - steel tubes resist corrosion from acidic flue gas condensates, ensuring long - term operation in harsh refinery and power plant environments. The robust design minimizes maintenance and extends service life to 15+ years.

Application Areas

◆ Power Generation
Coal - Fired, Gas, Biomass Plants: Improves thermal efficiency in steam cycles, reducing fuel consumption and greenhouse gas emissions.
Refinery Furnaces: Optimizes energy use by preheating combustion air, enhancing furnace efficiency and product output.

◆ Industrial Boilers
Large - Scale Heating Systems: Recovers waste heat from boiler flue gases, preheating feedwater to reduce fuel use in manufacturing, chemical, and textile industries.

Commercial Terms

◆ Order Details
Minimum Order Quantity (MOQ): 1 unit (supports pilot projects and plant retrofits; bulk orders ≥3 units get 7% discount).
Price: $18,000–$28,000/unit (varies by material: alloy steel adds 15% cost vs. carbon steel).

◆ Shipping & Delivery
Packaging: Anti - corrosion VCI film + steel crates (ASME - compliant for high - pressure transport).
Delivery Time: 16–24 days (standard); 28–35 days (custom alloy steel models for extreme temps).
◆ Payment & Supply
Payment Terms: T/T (30% deposit), L/C at sight.
Supply Ability: 350 units/month (dedicated lines for power plant and refinery variants).
