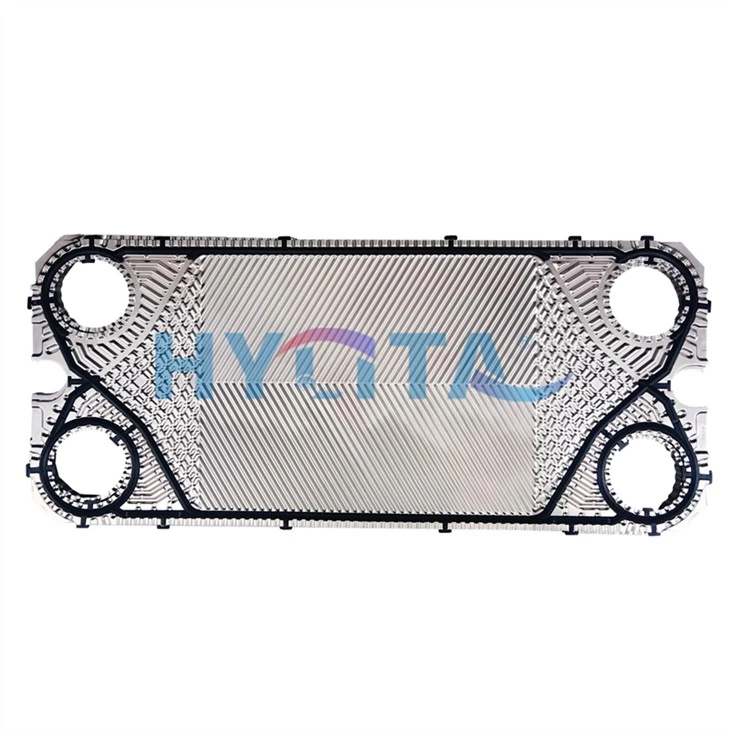

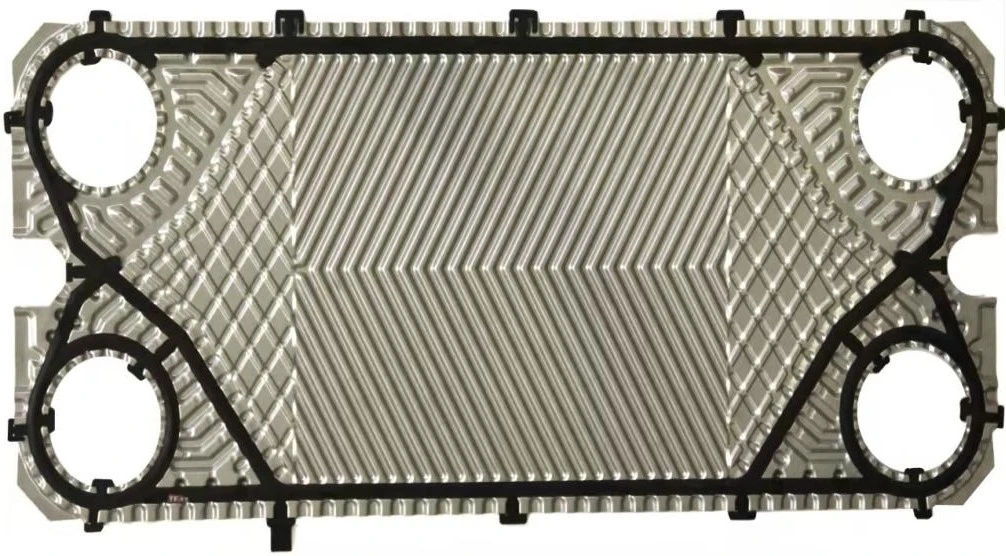

316L Stainless Steel Plates with Chevron Corrugation
This 316L stainless steel plates featuring chevron corrugation, stands out for its exceptional performance. The chevron pattern on the plates creates intense turbulence, boosting heat transfer efficiency by up to 50% as fluids flow through the alternating channels. This design ensures optimal heat exchange whether used as a steam to water heat exchanger or in other thermal transfer applications.
During production, each plate undergoes precision stamping and polishing to achieve a smooth, mirror - like finish, reducing the risk of residue accumulation. The 316L stainless steel material offers outstanding corrosion resistance, making it suitable for both chemical processing, where it withstands aggressive chemicals, and food and beverage industries, meeting stringent hygiene standards. Paired with FDA - compliant EPDM gaskets, it forms a leak - proof, hygienic system. In food grade applications like juice pasteurization or in chemical plants for cooling reaction mixtures, its durability and high - efficiency heat transfer ensure reliable, long - term operation.
These 316L stainless steel plates, featuring chevron corrugation, enhance turbulence for efficient heat transfer. Resistant to corrosion in chemical and food processing, they ensure durability and compliance with hygiene standards.
Product Details
Core Features
◆ Chevron Corrugation: The chevron pattern on 316L stainless steel plates generates intense turbulence, boosting heat transfer efficiency by up to 50% as fluids flow through alternating channels. This design ensures optimal heat exchange in applications like steam - to - water heat exchangers.
◆ Surface Finish: Undergo precision stamping and polishing, resulting in a smooth, mirror - like finish. This reduces residue accumulation, maintaining hygiene and facilitating easy cleaning.
◆ Corrosion Resistance: 316L stainless steel offers outstanding resistance to aggressive chemicals in chemical processing and meets hygiene standards for food and beverage industries.
Performance & Application
◆ Diverse Thermal Transfer: Suitable for steam - to - water heat exchange and other thermal transfer applications. Effective in food grade uses (e.g., juice pasteurization) and chemical plants (e.g., cooling reaction mixtures).
◆ Hygienic & Leak - Proof: Paired with FDA - compliant EPDM gaskets, it forms a leak - proof, hygienic system. Ensures product safety in food processing and prevents chemical leaks in industrial settings.
Key Advantages
◆ Enhanced Heat Transfer: Chevron corrugation creates turbulence, increasing heat transfer efficiency by up to 50% for faster, more effective thermal processing.
◆ Hygiene & Cleanability: Mirror - like polished surface minimizes residue buildup, complying with food and beverage industry hygiene standards and simplifying maintenance.
◆ Corrosion Resistance: 316L stainless steel withstands aggressive chemicals and corrosive environments, ensuring durability in chemical and food processing applications.
◆ Leak - Proof Reliability: FDA - compliant EPDM gaskets provide a secure seal, preventing leaks and maintaining system integrity in critical applications.
Technical Compliance
◆ Complies with food and beverage industry hygiene standards (via FDA - compliant gaskets and 316L stainless steel). Suitable for chemical processing applications requiring corrosion resistance.
Packaging & Logistics
◆ Packaging: Protected with anti - corrosion materials to maintain the mirror - like finish. Shipped in sturdy crates to prevent damage during transit.
◆ Delivery Time: Typically 7 - 17 working days after order confirmation, depending on order quantity. Shipped via freight carriers suitable for industrial metal components.
