High-Efficiency Shell and Tube Heat Exchanger (Evaporator & Condenser)

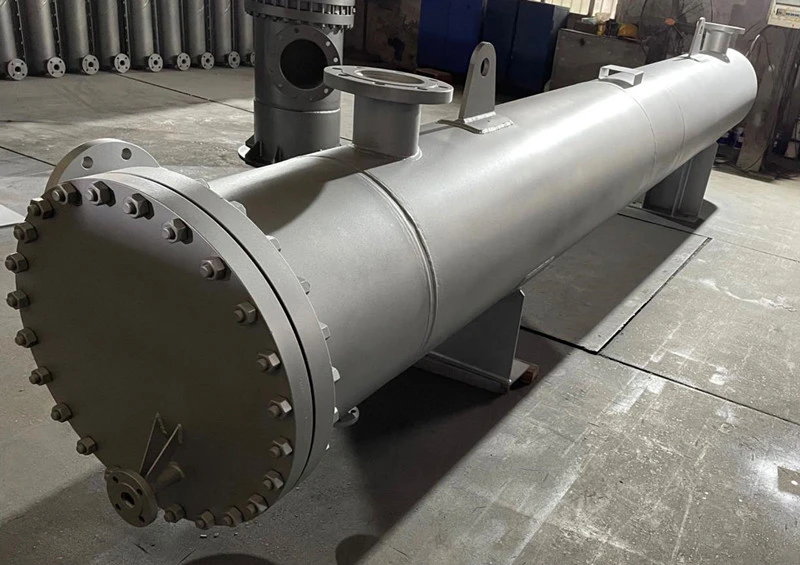

High-Efficiency Shell and Tube Condenser for Power Generation.The shell and tube condenser, a key component in power plants, adopts a tubular heat exchanger design with vertically arranged tubes to optimize condensation efficiency. Constructed from admiralty brass tubes (70/30 copper-nickel) and a carbon steel shell, it withstands pressures up to 2.5 MPa and temperatures reaching 150°C. The tube bundle features 19mm OD tubes spaced at 25.4mm centers, providing a heat transfer surface area of 500–2000 m². In steam power cycles, it condenses exhaust steam at 50–200 kg/s, reducing turbine backpressure and boosting efficiency by 3–5%. Its vertical layout minimizes floor space while maximizing heat exchange performance for continuous power generation.
Our shell and tube heat exchangers are engineered for critical industrial applications, featuring robust designs and premium materials. The shell and tube evaporator excels in low-temperature environments, equipped with a carbon steel shell and titanium tubes, making it ideal for ammonia-based refrigeration systems. The shell and tube condenser, a key component in power plants, utilizes admiralty brass tubes (70/30 copper-nickel alloy) and a carbon steel shell to optimize condensation efficiency in steam power cycles.
Product Details
Evaporator Features
◆ Material: Carbon steel shell + titanium tubes
◆ Application: Low-temperature refrigeration (ammonia-based setups)
◆ Performance: Reliable evaporation for industrial cooling processes
Condenser Features
◆ Material: Carbon steel shell + admiralty brass tubes (70/30 copper-nickel)
◆ Pressure Rating: Up to 2.5 MPa
◆ Temperature Range: Up to 150°C
◆ Tube Bundle: 19mm OD tubes, 25.4mm center spacing
◆ Heat Transfer Surface Area: 500–2000 m²
◆ Steam Condensation Capacity: 50–200 kg/s
◆ Efficiency Improvement: Reduces turbine backpressure, boosts power generation efficiency by 3–5%
◆ Layout: Vertical design for minimal floor space and maximum heat exchange performance
Specification
|
Parameter |
Evaporator |
Condenser |
|
Shell Material |
Carbon steel |
Carbon steel |
|
Tube Material |
Titanium |
Admiralty brass (70/30 Cu-Ni) |
|
Design Pressure |
N/A (dependent on application) |
2.5 MPa |
|
Design Temperature |
N/A (low-temperature focus) |
150°C |
|
Tube Outer Diameter |
N/A |
19 mm |
|
Tube Spacing |
N/A |
25.4 mm |
|
Heat Transfer Area |
N/A |
500–2000 m² |
|
Steam Handling |
N/A |
50–200 kg/s (exhaust steam) |
Application Scenarios
◆ Evaporator: Refrigeration systems in food processing, chemical plants, and cold storage facilities, especially those using ammonia as a refrigerant.
◆ Condenser: Power generation plants (steam cycles), petrochemical industries, and industrial facilities requiring efficient steam condensation to optimize energy use.
Key Advantages
◆ Durable Construction:
Carbon steel shells ensure structural integrity under high pressure/temperature.
Titanium tubes (evaporator) offer corrosion resistance in low-temperature, aggressive environments.
Copper-nickel tubes (condenser) provide excellent heat transfer and resistance to scaling.
◆ Efficiency Optimization:
Vertical tube arrangement maximizes heat transfer while minimizing footprint.
Reduces energy consumption by 3–5% in power generation cycles through improved condensation.
◆ Reliability:
Suitable for continuous operation in heavy-duty industrial settings.
Engineered to withstand harsh conditions (e.g., high pressure, corrosive media).
Technical Compliance
◆ Materials comply with industry standards for heat exchangers in refrigeration and power sectors.
◆ Design ensures optimal performance as per ASME or equivalent engineering codes (upon request).
Packaging & Logistics
◆ Standard packaging: PE bags + protective padding + wooden carton for sea/air transport.
◆ Delivery time: 10–20 days (negotiable based on order quantity).
