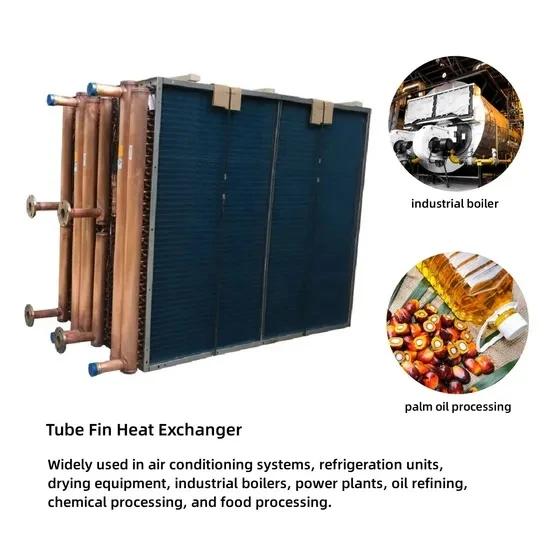

Copper Tube Aluminum Fin Air Cooled Chiller Heat Exchanger Evaporator Condenser Coil For Replacement

Shenzhen Hylita condenser coils and evaporator coils are used in a wide variety of HVAC heat recovery and condensing applications.

Our condenser coils come with a huge selection of tube, fin and material options including 5/16" OD copper tubing.

Standard and custom designs are available for new and retrofit installations.

Carrier, Trane, McQuay, York/JCI, and Heatcraft are all manufacturers that we can easily duplicate often at a fraction of the cost of a new coil from the OEM and twice as fast.

Our sales engineers will walk you through matching existing coil dimensions & construction to create a condenser coil that you can slide out the old one and slide the new one right in.

Application: gas compression, HVAC, transit cooling, refrigerated display cases, data center & electronics cooling, and ground support.

FINS

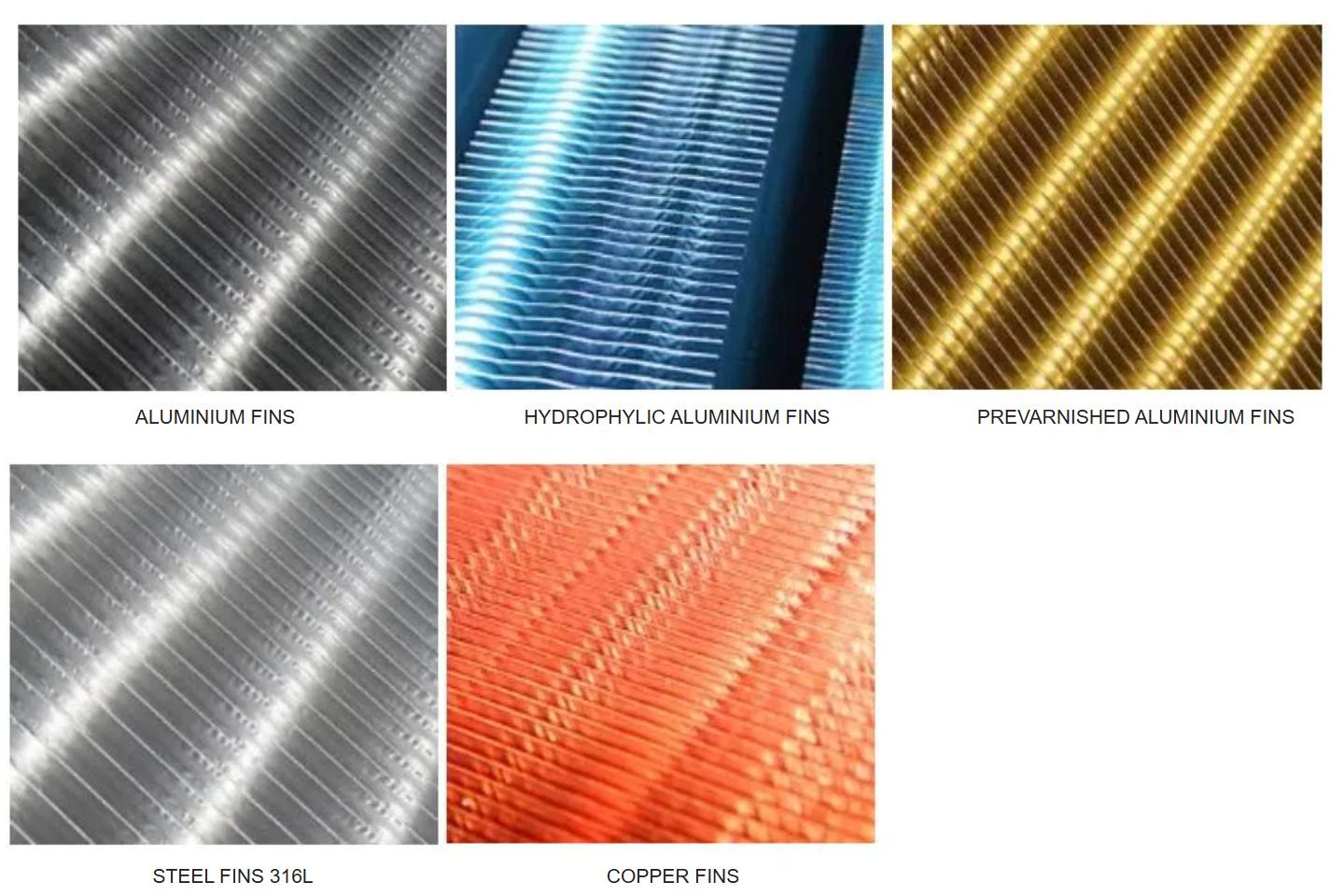

The fins, made of aluminium, prevarnished aluminium or copper, are pressed by means of a particular ondulation that increases the thermal exchange between the air and the fin reducing the load losses on the air side and encouraging at the same time the flow of condensation or defrosting water. The fins can also be made from 316L stainless steel for installations where the thermal exchange is in aggressive environments such as the food sector or exchangers used in salty environments. The main geometries, achievable according to the chosen material, are reported following below; besides, according to the application chosen by the customer and to the thickness of the requested strap, it will be possible to make a major or minor pitch between the fins.

TUBES

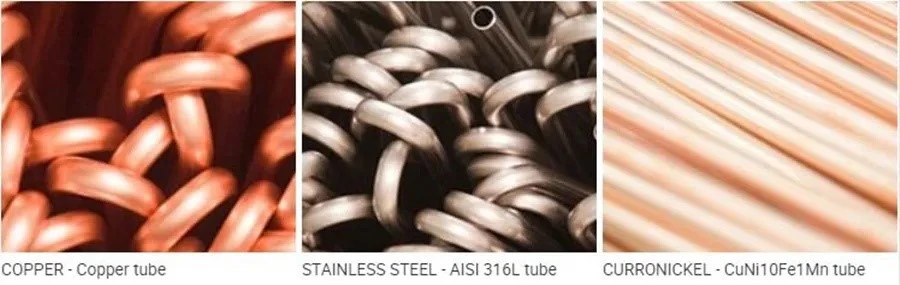

We make tubes of different diameters, with a greater number of thicknesses and different materials such as copper, stainless steel and cupronickel. The tube expansion, during the flaring phase, allows a perfect contact between the tubes and the fins and as a consequence it assures efficient thermal exchange.

PLATES

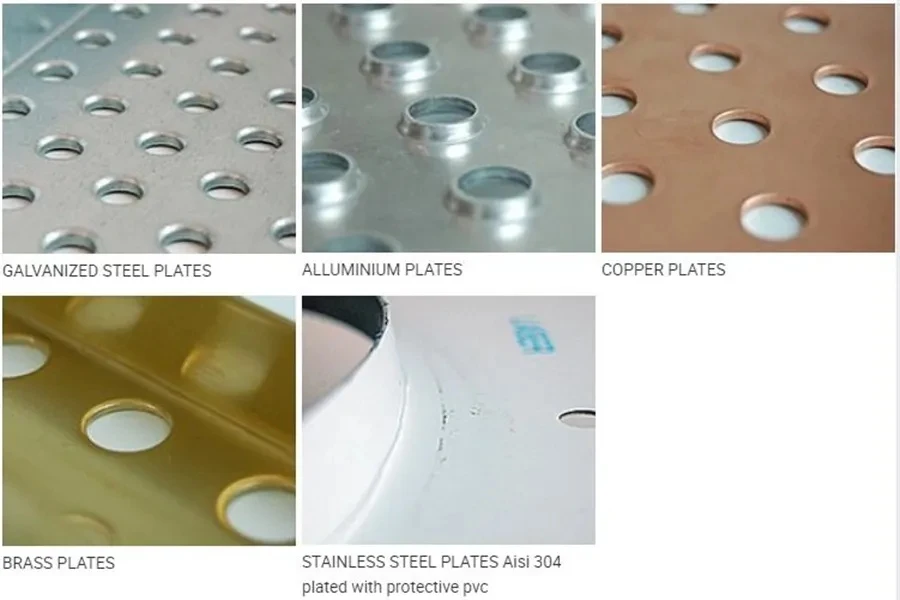

Thanks to its accurate three-dimensional design and to modern punchers and numerical control bending machines, it is possible to make carpentry and structures of different sizes that can be adapted to any construction requirement of the customer.

Since 2015, Shenzhen Hylita have been a dedicated manufacturer and global exporter of industrial heat transfer equipment, including Evaporators, Condensers, Air coolers,Finned tube heat exchanger,Dry cooler,economizers and other heat transfer equipments

Shenzhen Hylita is a company specialized in R&Dand production of various heat exchangers, is a high-tech production and service in heat exchangersystem design and complete set of equipment solutions.Shenzhen Hylita provide high quality products and energy efficient industrial solutions for HVAC, power,metallurgy, chemicals, power machinery and food etc.

Shenzhen Hylitahas developed the capability to manufacturecoils with a wide range of materials including copper, brassCu-nickel, aluminum, carbon steel, hot-dip galvanized steelTitanium and stainless steel.
