Basic Info
|
Material |
Stainless steel, Copper, Aluminum |
Key selling points |
Long Service Life, Eco-Friendly |
|
Voltage |
220 V, 380 V |
Heat Exchanger Type |
Fin Tube Heat Exchanger |
|
Maximum operating temperature |
-10-300c |
Flow Capacity |
customize |
|
Fluid Compatibility |
steam, hot oil, hot water |
Core components |
Fin, Tube |
|
Warranty |
1 Year |
Machinery test report |
Provided |
|
Video outgoing-inspection |
Provided |
Place of origin |
Guangdong, China |
|
Weight (KG) |
300 |
Brand name |
Hylita |
|
Liquid Flow Rate |
0.1~10 M/s |
Maximum Pressure Rating |
4.5Mpa |
|
Dimension(l*w*h) |
customize |
Heat Exchanger Type |
Tube Fin Heat Exchanger |
|
Application |
HVAC System,Boiler |
Name |
air to water heat exchanger |
|
Tube material |
Copper |
Fin material |
Aluminium |
|
Tube type |
Smooth |
Fin type |
Corrugated |
|
Connection type |
thread, Welded |
Frame material |
Galvanized steel |
|
Fin surface |
Epoxy (gold), Blue (hydrophilic), Powder paint, Bare |
Selling Units |
Single item |
|
Single package size |
200X50X200 cm |
Single gross weight |
200.000 kg |
Products Description

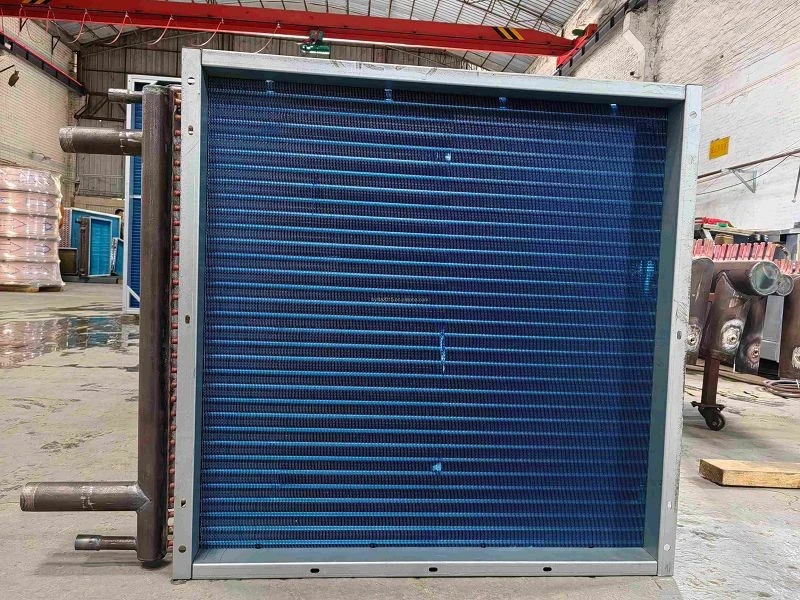

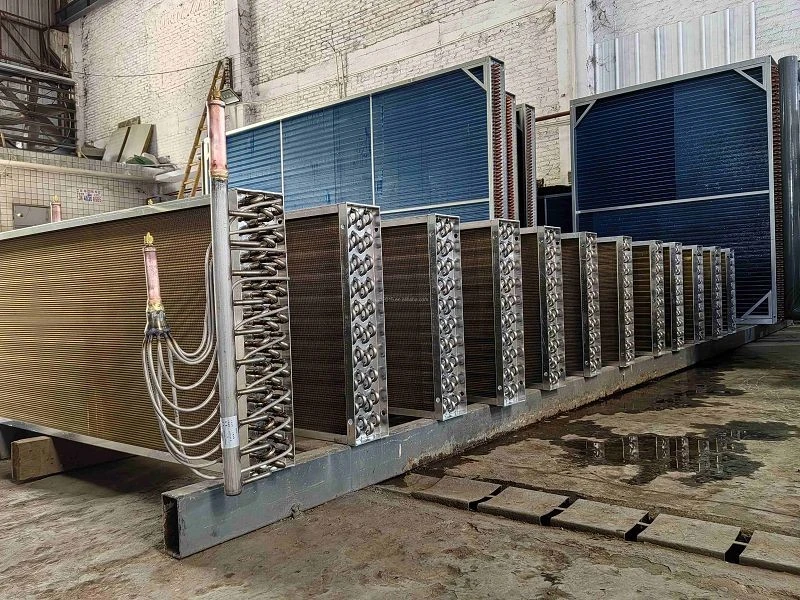

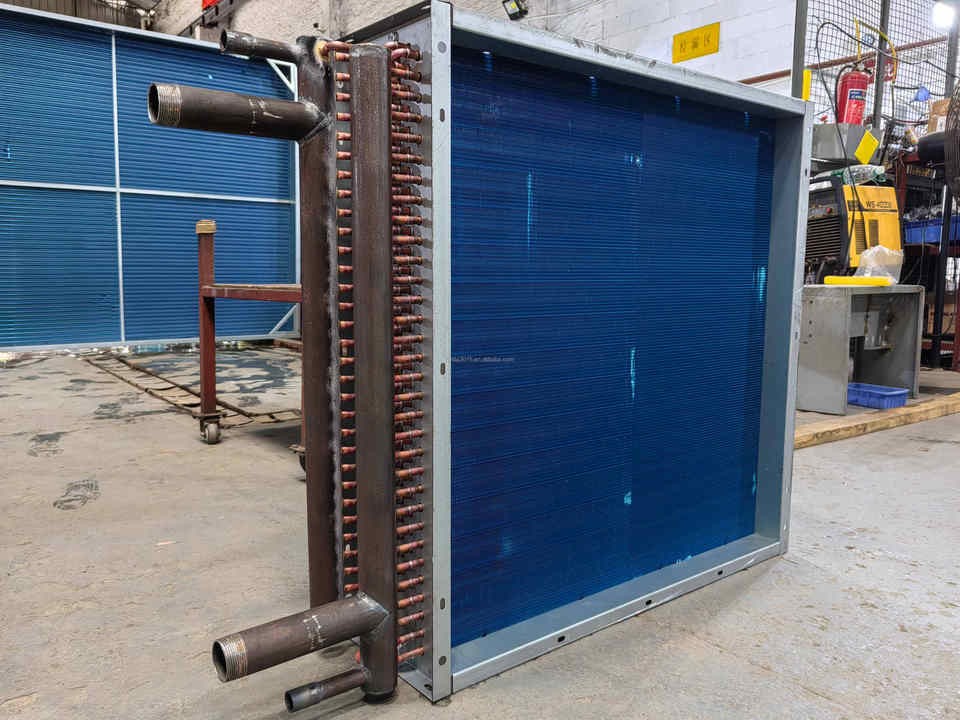

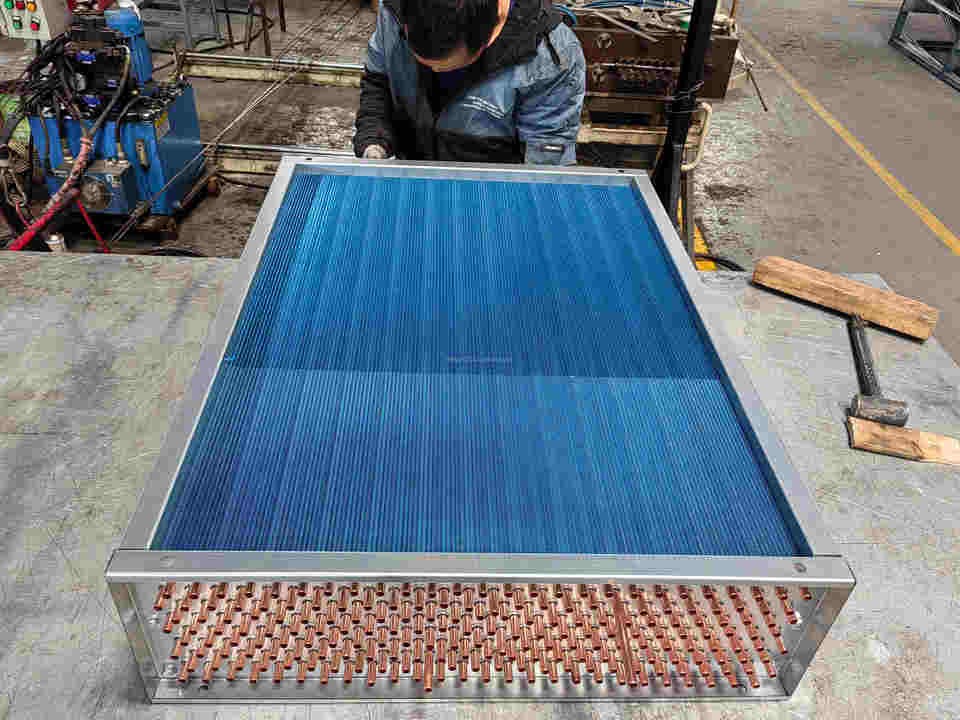

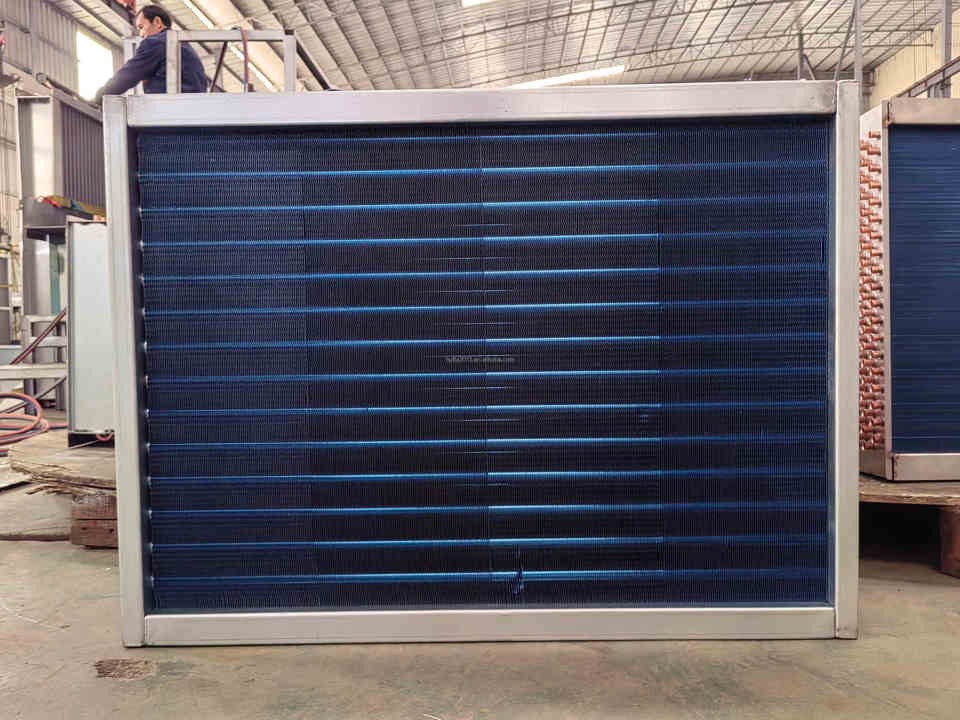

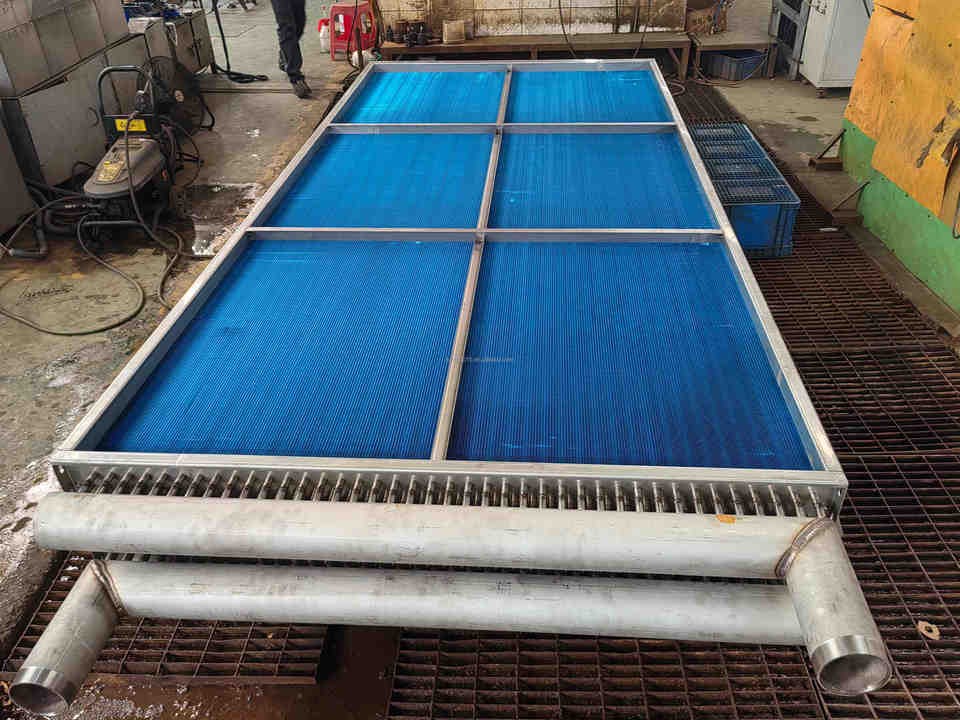

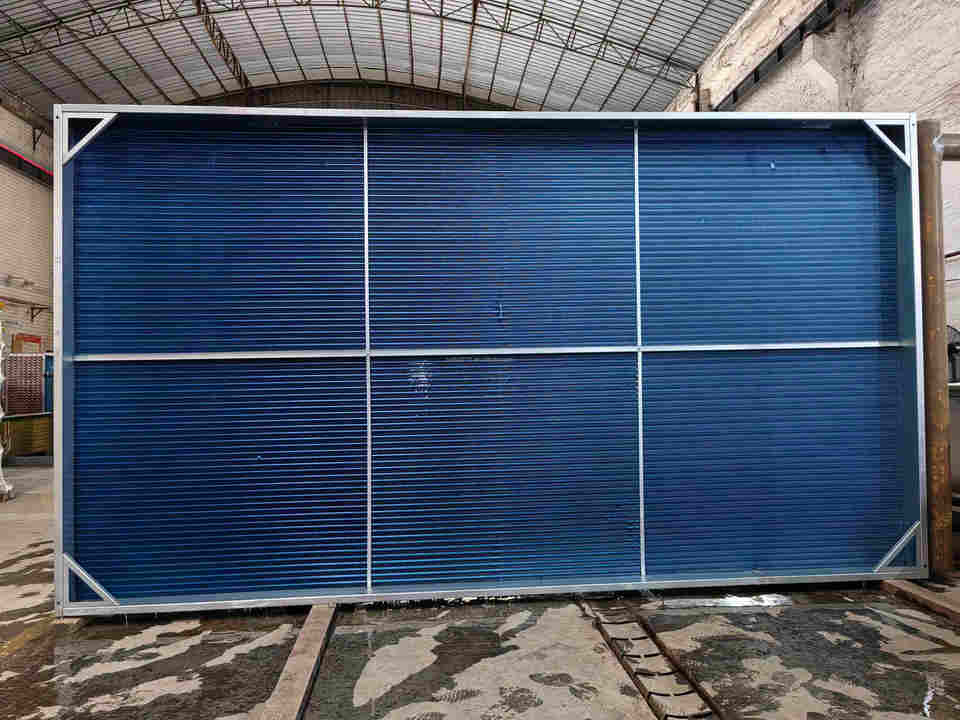

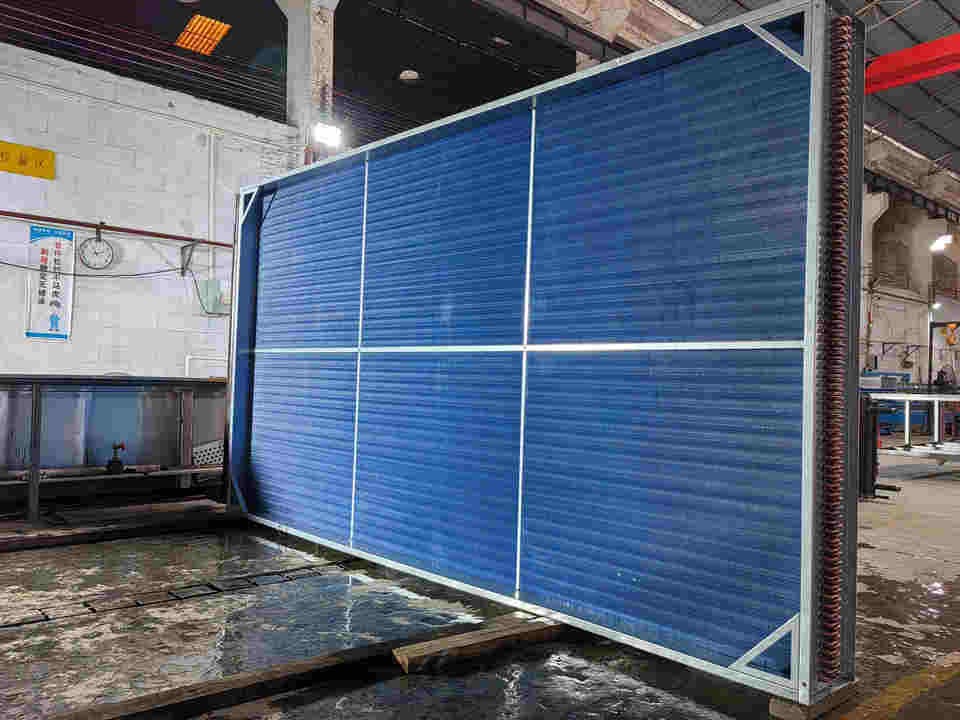

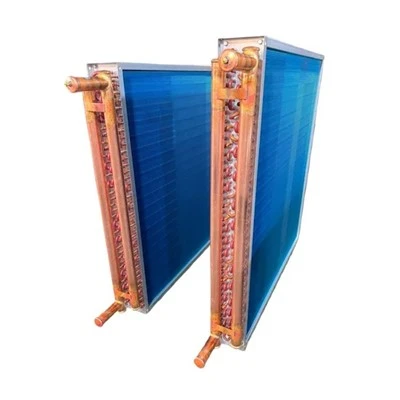

Heavy Duty Custom DX Evaporator And Condenser Coil For HVAC Systems
High-Performance Evaporator Coil: The Ultimate Refrigeration Solution

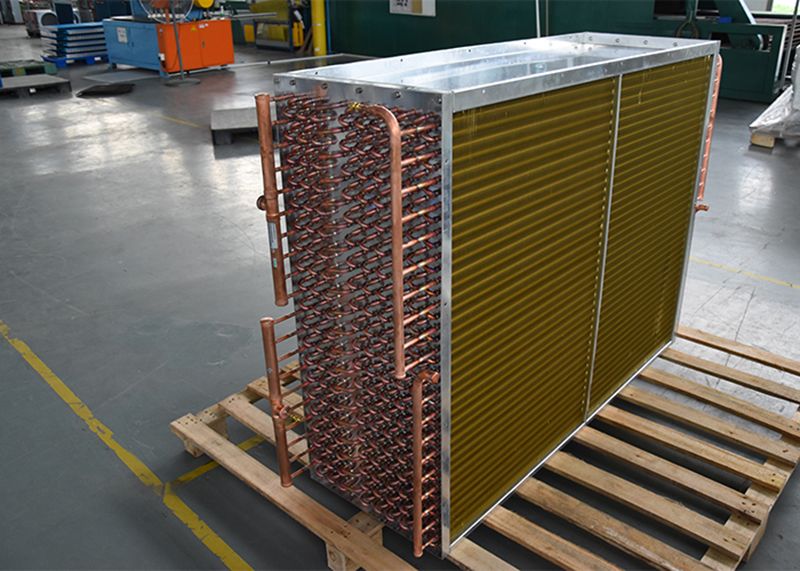

Our water to air coils utilize high-grade 3/8" copper tubing mechanically expanded into corrugated aluminum fins for maximum thermal transfer. Available in custom geometries, including chilled water, hot water, and DX types. Each unit undergoes rigorous leak testing to ensure durability.
Advantages of Hylita Industrial Condenser
Efficient Heat Transfer: Corrugated fin design increases turbulence, boosting heat exchange efficiency by 25%.
Heat Transfer Area: High-density fin arrangement maximizes surface area for optimal cooling in compact spaces.
Leak-Proof: Precision brazed U-bends tested at 3.0 Mpa nitrogen pressure ensure zero leakage reliability.
Application: Ideal for industrial AHU, walk-in freezers, dryer steam systems, and Carrier unit replacements.
Stable Installation: Designed with galvanized steel casing and exact mounting holes for quick, secure fit.
Custom Design: We offer OEM services to replicate any coil dimensions, materials, and fin spacing accurately.
1-Year Warranty: ISO 9001 certified quality backed by a comprehensive 1-year warranty against defects.
Energy Saving: Optimized circuitry reduces pressure drop, lowering fan and pump energy consumption significantly.
Fast Delivery: Streamlined manufacturing allows for quick turnaround on replacement coils to minimize downtime.
Wide Compatibility: Compatible with chilled water, hot water, steam, brine, and DX refrigerant systems.
Durable Coating: Optional epoxy or nano-coating available for enhanced protection in marine environments.
Tech Support: Professional engineering team provides free thermal calculation and drawing confirmation services.
Technical Specifications
| Tube Material | Copper, Stainless Steel 304/316L |
| Fin Material | Aluminum (Hydrophilic/Epoxy), Copper |
| Tube Diameter | 3/8", 1/2", 5/8" (7mm, 9.52mm, 15.88mm) |
| Fin Spacing | 4 FPI to 16 FPI (Adjustable) |
| Test Pressure | 2.5 - 3.0 Mpa (Nitrogen) |
| Frame Material | Galvanized Sheet or Stainless Steel |
| Rows | 2 to 12 Rows Deep |
| Certifications | CE, ISO 9001, RoHS |
| Medium | Water, Glycol, Freon, Steam, Oil |
| MOQ | 1 Piece (Custom Replacement Accepted) |
Applications
● HVAC Air Handling Units (AHU)
● Industrial Process Cooling Systems
● Walk-in Freezers and Cold Storage
● Textile Drying Steam Heater Systems
● Data Center Precision Cooling
● Food and Beverage Processing Plants
● Chemical Plant Heat Recovery
● Marine Offshore Platform HVAC
● Supermarket Refrigeration Cases
● Greenhouse Temperature Control
Key Features
Direct Replacement: Perfect dimensional match for Carrier 38AP series, no modification needed.
Thicker Tube Wall: We use 0.41mm+ wall thickness vs competitors' 0.28mm for longer lifespan.
High Pressure Test: 100% helium leak detection ensures zero defects before shipment.
Advanced Software: VRV/VRF selection software ensures precise thermal performance calculation.
Corrosion Defense: Optional Gold fin or Blygold coating for extreme coastal environments.
Details of Materials
|
Material |
Key Properties |
Typical Applications & Standards |
|
Carbon Steel |
High mechanical strength, cost-effective |
Widely adopted for shells in industrial systems (e.g., ASME SA-516 Gr. 70), suitable for non-corrosive environments and moderate temperatures (<300°C). |
|
Stainless Steel |
Excellent corrosion resistance (e.g., SS304/316), good thermal performance |
Ideal for chemical, food processing, and HVAC systems (ASTM A240),resistant to chloride-containing fluids (e.g.,< 1000 ppm Cl⁻). |
|
Nickel Alloys |
Superior resistance to extreme corrosion (e.g., Inconel 600/625, Hastelloy C-276) |
Selected for high-temperature (>800°C) or aggressive environments (e.g., sulfuric acid, seawater desalination), compliant with NACE MR0175/ISO 15156. |
|
Copper Alloys |
High thermal conductivity (e.g., CuNi 70/30, Brass) |
Common in condensers and cooling systems with non-corrosive water (ASTM B111), limited to < 150°C and non-ammonia environments. |
|
Titanium |
Exceptional corrosion resistance (e.g., Grade 2/Grade 7) |
Critical for seawater applications (e.g., marine, offshore platforms), resistant to chlorides, acids, and biofouling (ASTM B338 Gr.2). |

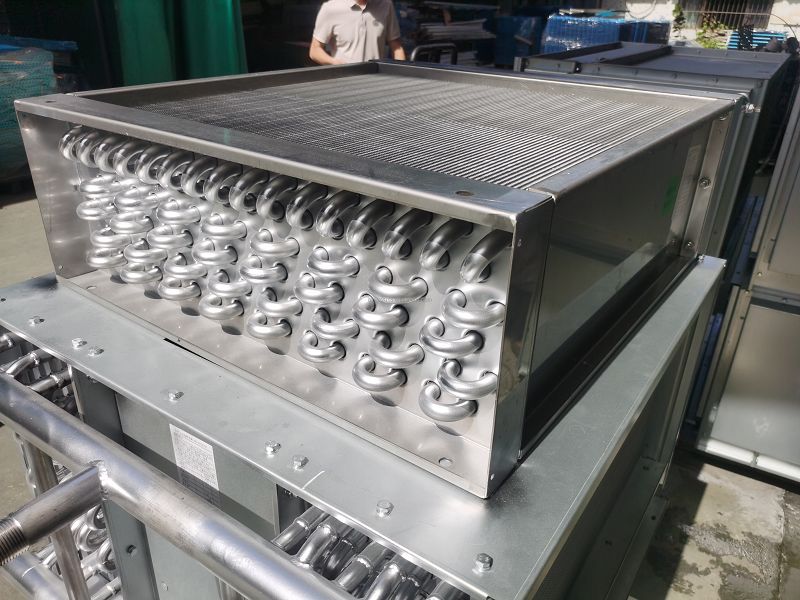

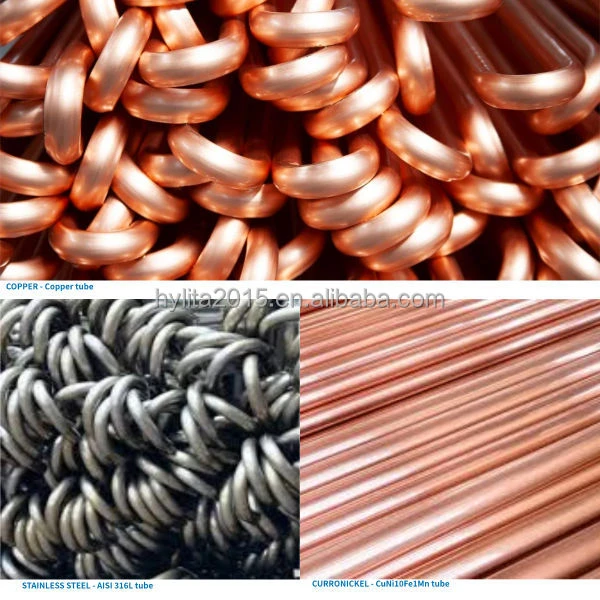

Main Part - Tube:
• Standard tubes are 5/8", 1/2" ,5/8", 20, 1" OD.
• 304, 316 stainless steel, copper, titanium, hot dip galvanized steel or aluminum.
• Tubes are arranged inline in the direction of airflow for maximum heat transfer with minimum air side pressure drop.
The tube expansion, during the flaring phase, allows a perfect contact between the tubes and the fins and as a consequence it assures efficient thermal exchange.

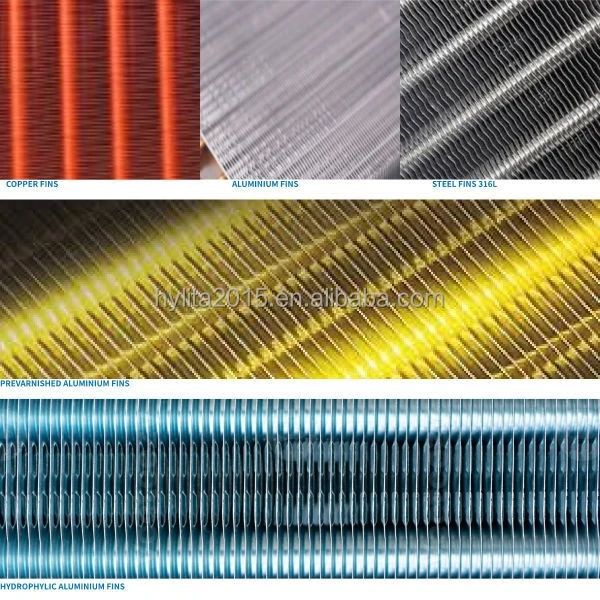

Main Part - Fin:
• Standard fin material is aluminum, copper, stainless steel, titanium
• Fins are die-formed into a corrugated (waffle) configuration to encourage turbulent airflow and improve heat transfer
efficiency.
• Fins do have varied types of space.
The fins, made of aluminium, prevarnished aluminium or copper, are pressed by means of a particular ondulation that increases the
thermal exchange between the air and the fin reducing the load losses on the air side and encouraging at the same time the flow of
condensation or defrosting water.

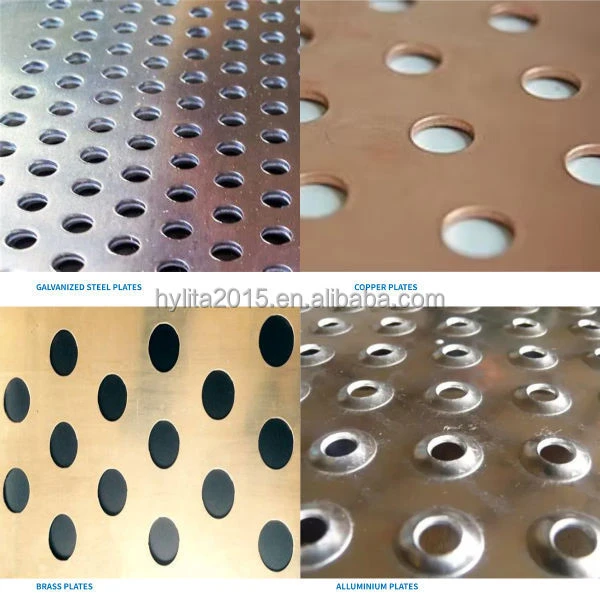

Main Part - Plate & Frame:
• Standard cabinet/casing material is corrosion resistant galvanized steel.
• We also supply aluminum, stainless steel cabinet and casing
Engineering Design
We exclusively utilize HTRI and EDR design software from a renowned European software provider.
With 18 years of strategic partnership , we have successfully designed, manufactured, and exported heat exchangers to over 50 countries worldwide.
Customer feedback consistently confirms that actual cooling performance aligns precisely with theoretical design values.

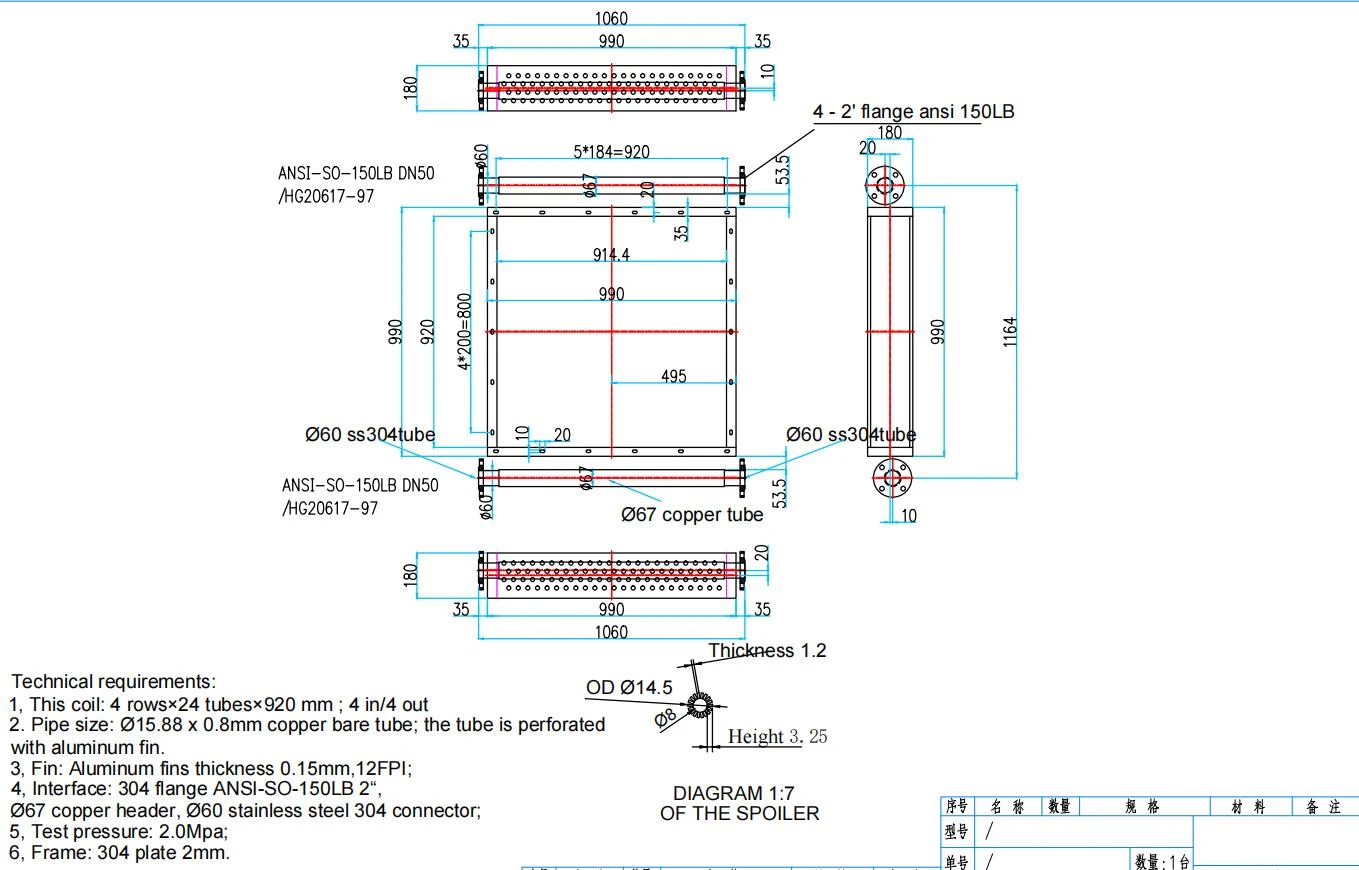

We can provide detailed drawing after your order. We can also provide Custom services .

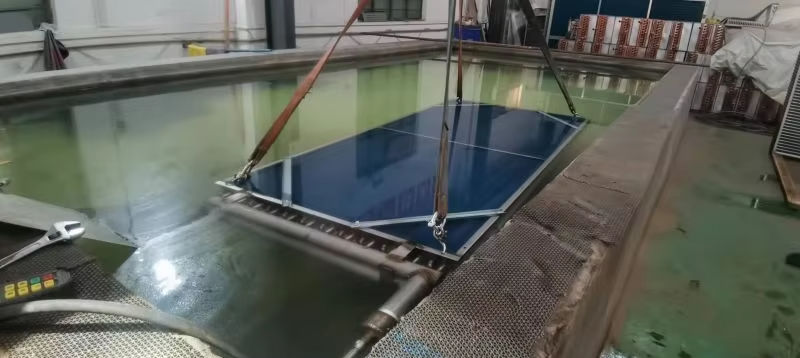

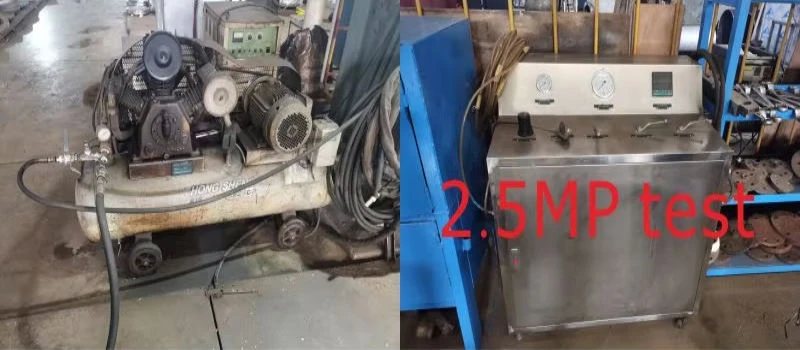

All heat exchangers undergo a rigorous pressure test: each unit is tested twice at 2.5 MPa and must hold the pressure for at least 15 minutes to verify pressure resistance and ensure no leakage.

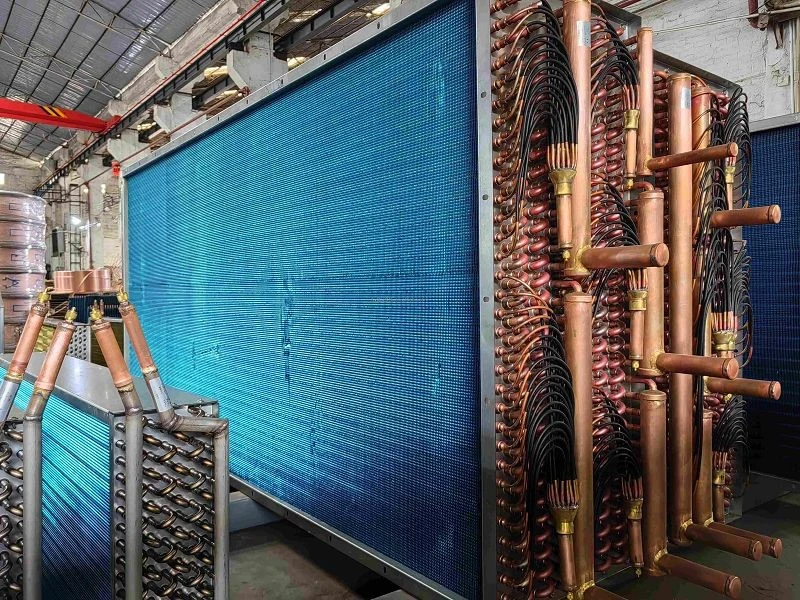

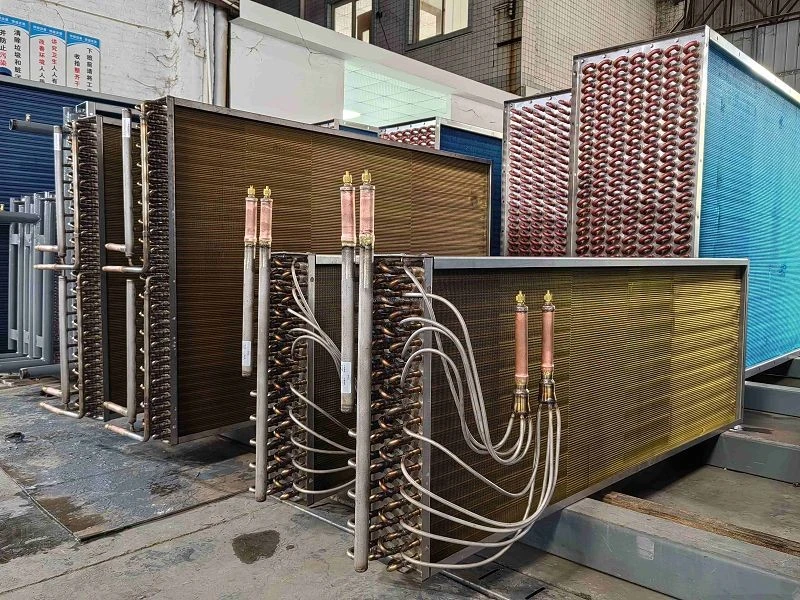

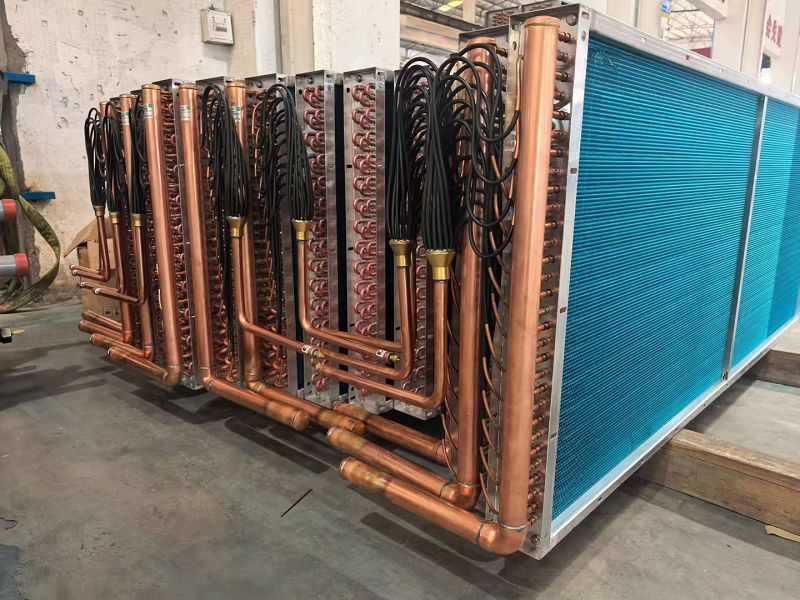

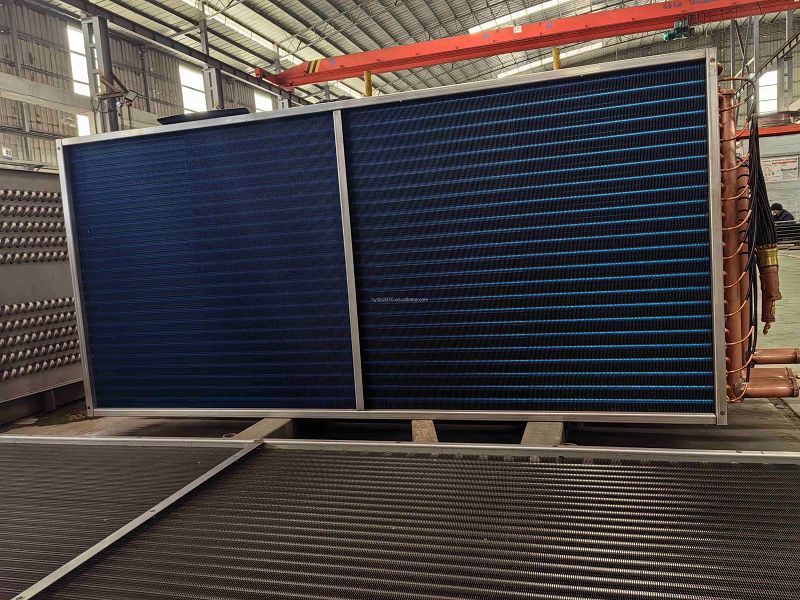

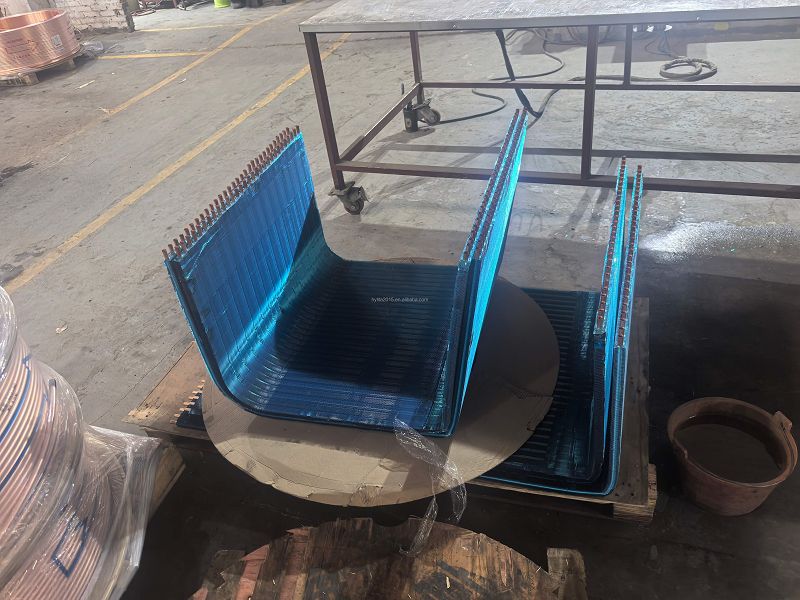

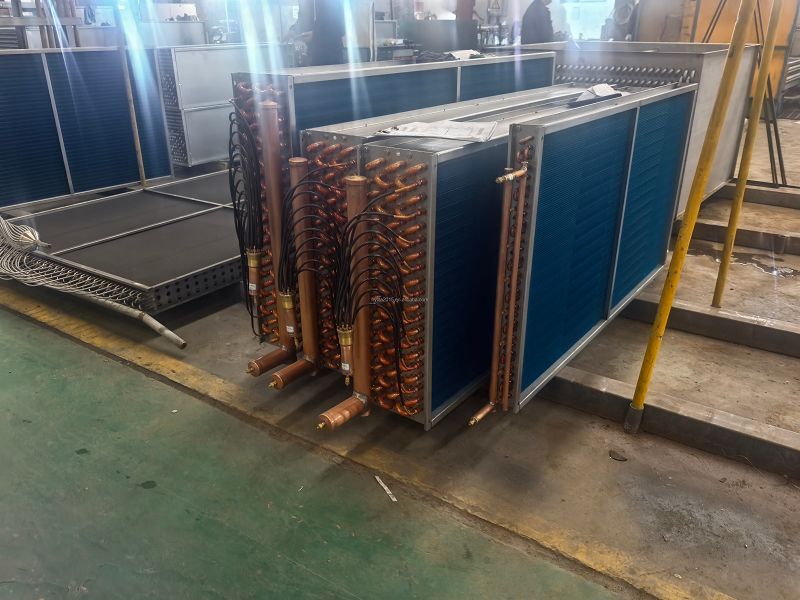

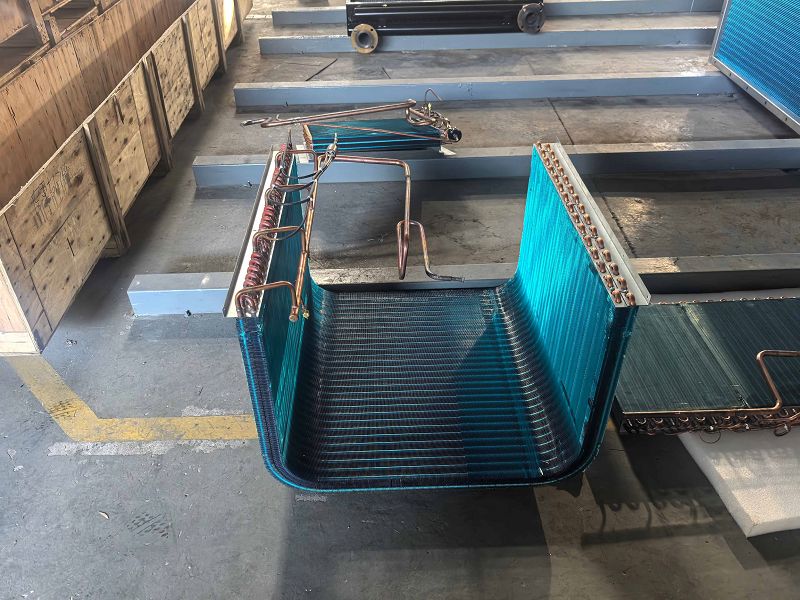

Customer Case Photos
Country: UAE
Application: Central air conditioning units for commercial shopping malls
Material: Copper Tube with Hydrophilic Aluminum Fin
Application: Seawater cooling system for offshore fishing vessels
Material: Titanium
Application: Steam condensation for fruit juice sterilization process
Material: Stainless Steel 316L
Application: Hydraulic oil cooling for plastic injection molding machines
Material: Carbon Steel Shell with Copper Tubes

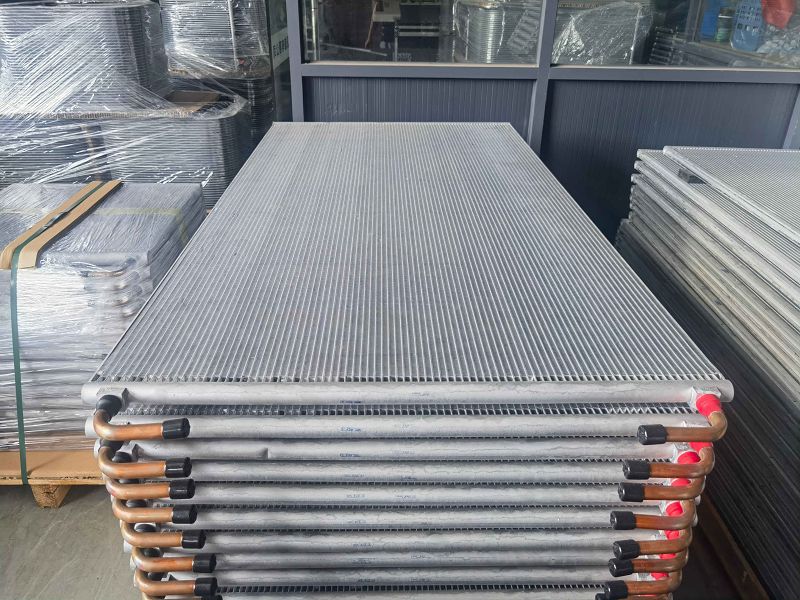

Application: Condensing unit for refrigerated transport trucks
Material: Aluminum (Parallel Flow Microchannel)
Application: Organic solvent vapor condensation for chemical plants
Material: Stainless Steel 316L (Fully Welded Block)

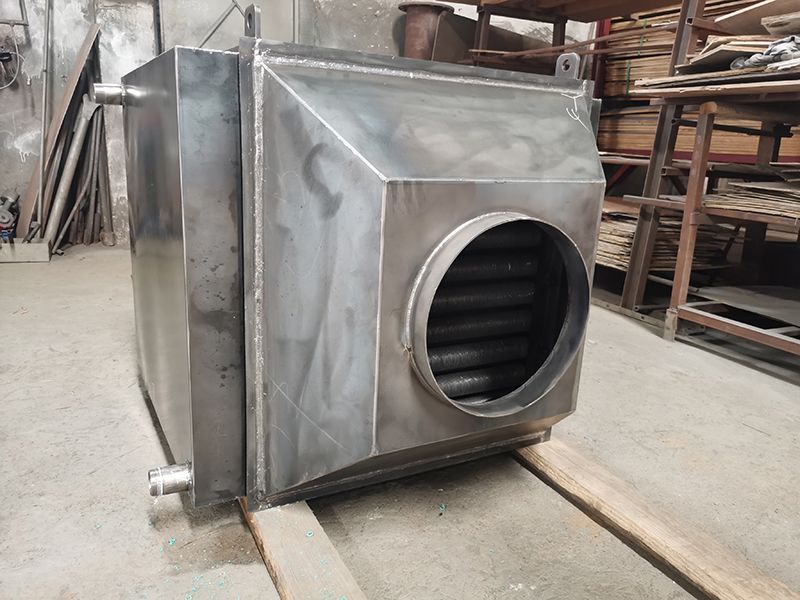

Application: Gas Boiler Flue Gas Condensing Heat Recovery
Material: Tube- Stainless Steel 316L; Fin- Aluminum (with epoxy coating) Supply Power: 400V / 3P / 50Hz

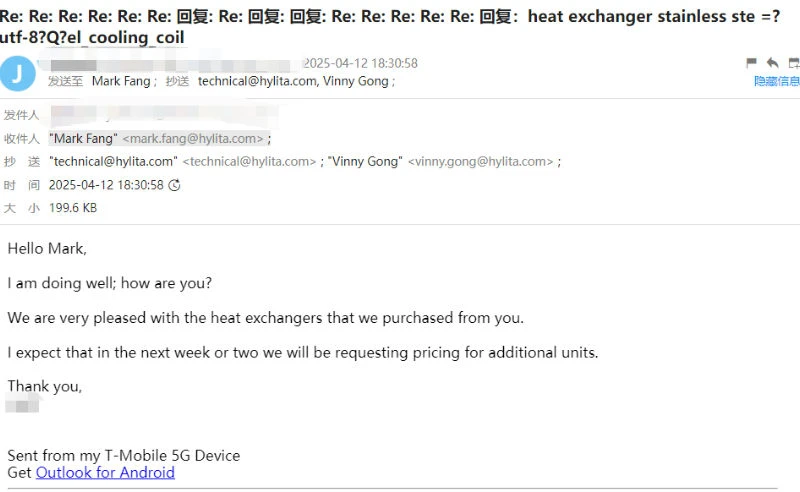

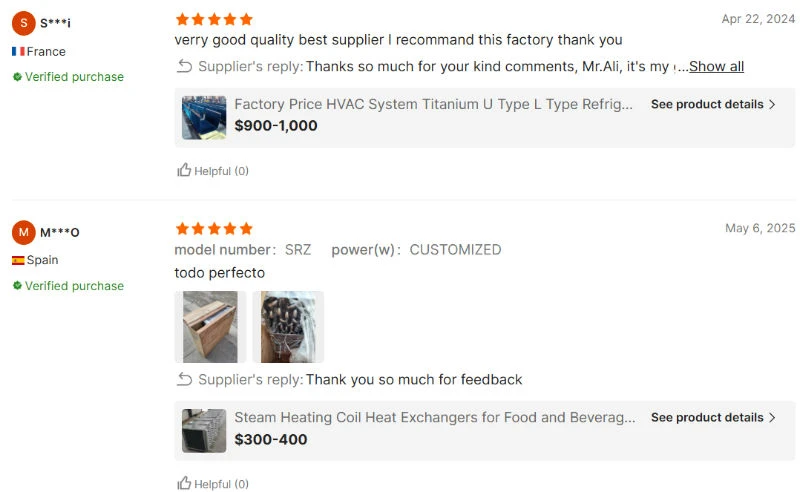

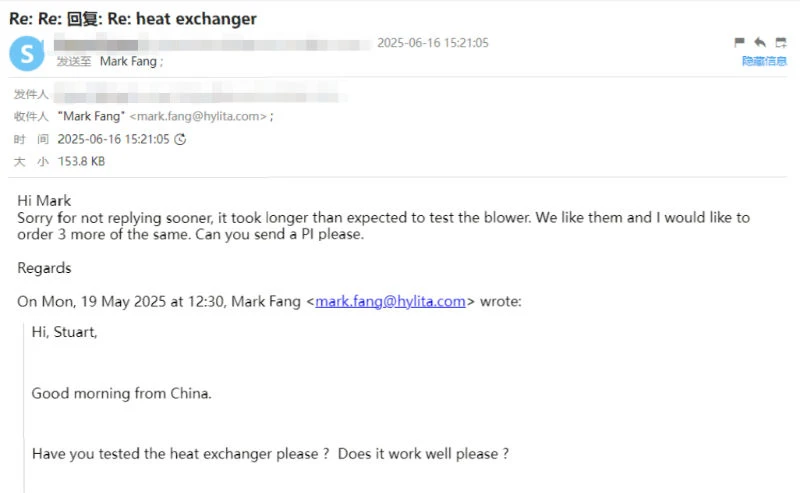

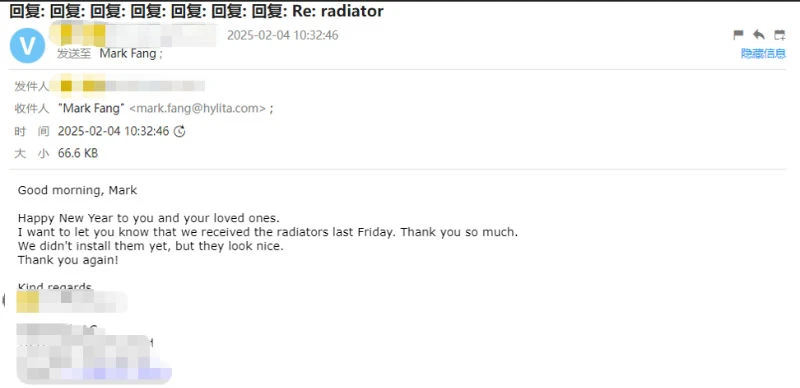

Customer Feedback

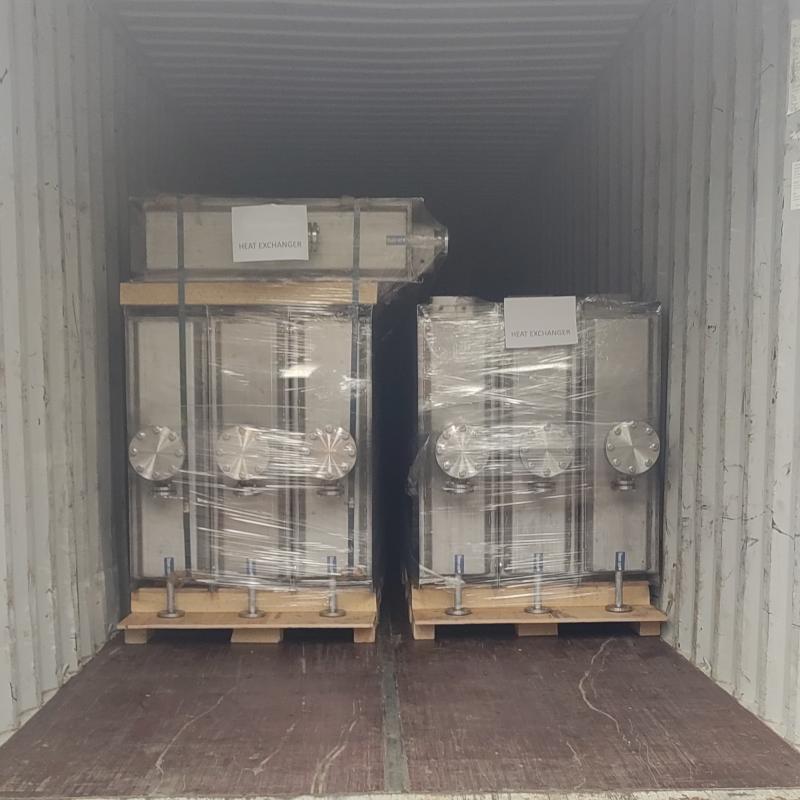

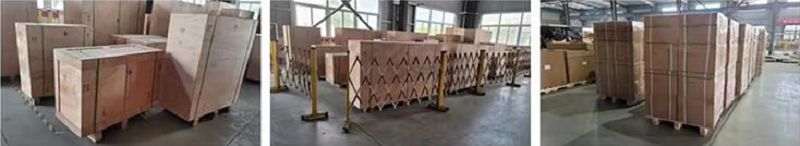

Packing & Delivery

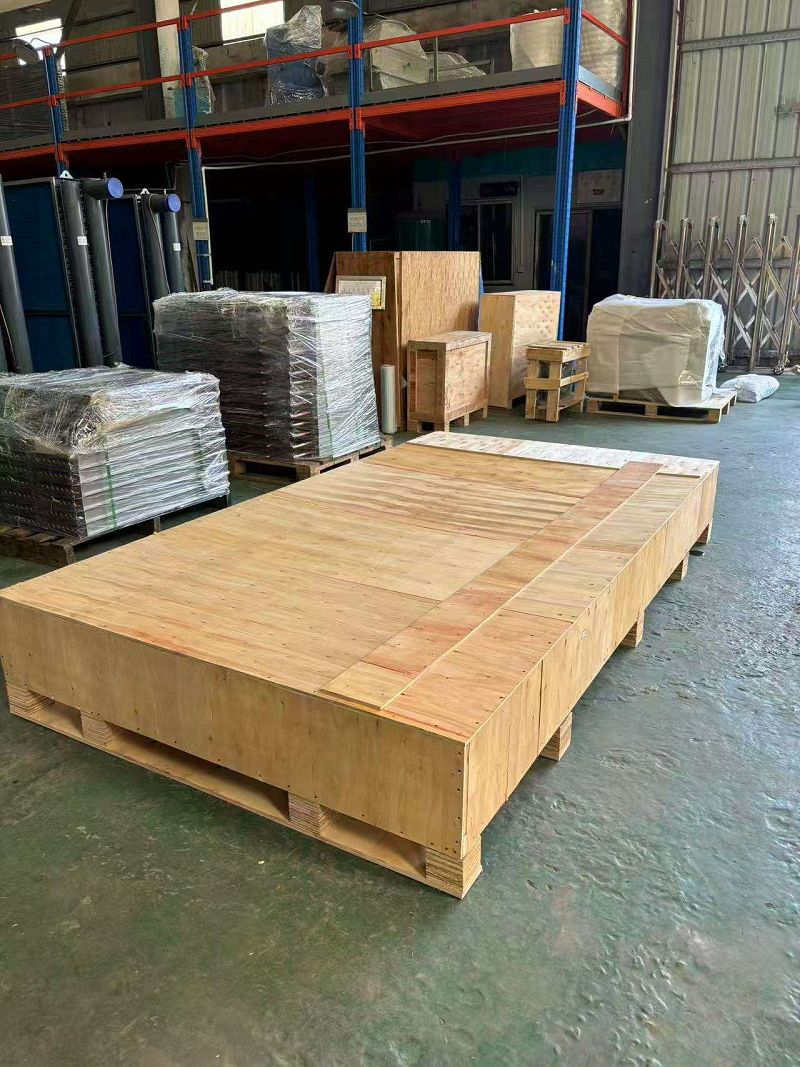

Standard packaging is wooden crates.
For exports to European countries, the wooden crates undergo fumigation treatment.
If container space is limited, we can switch to PE film packaging or accommodate special packaging requests from customers.
Company Profile
why choose our products
Shenzhen Hylita Heat Exchanger Co., Ltd.
Our headquarters is located in Shenzhen, with branch offices in Guangzhou, Tangshan, and Wuhan.
We supply a comprehensive portfolio of heat exchangers serving the industrial, food & beverage, HVAC, marine, air handling and cooling, petrochemical, power generation, and refrigeration sectors.
Hylita Industrial Condenser units are available in both direct-replacement models (100% compatible with OEM specifications) and fully customized configurations engineered to meet specific application requirements.
FAQ
1.Order Security & Online Transactions
Q: Can we order via Alibaba Trade Assurance for safety?
A: Yes, we highly encourage it! Trade Assurance secures your payment 100%. Combined with our 10-year manufacturing history , youcan place your first order with total confidence.
2. Quality Control
Q: How do you ensure the quality before shipment?
A: Our reputation is built on 4 core quality pillars
✅ Experience: Specialized manufacturer since 2015 (10+ Years).

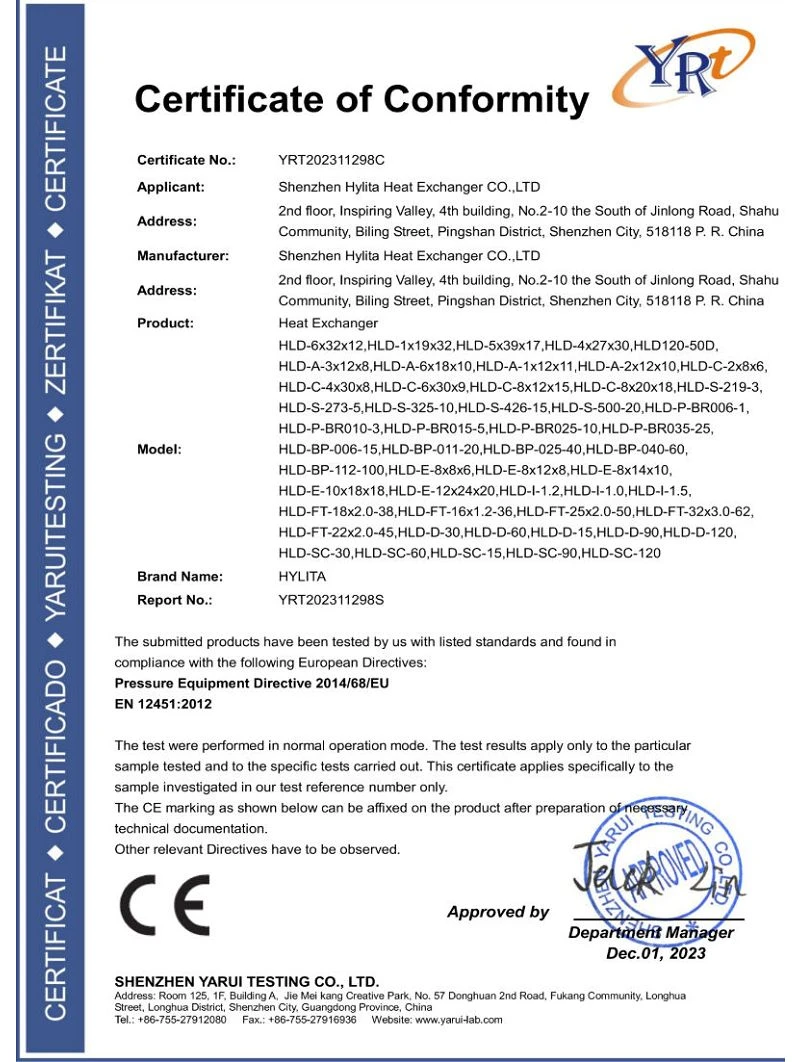

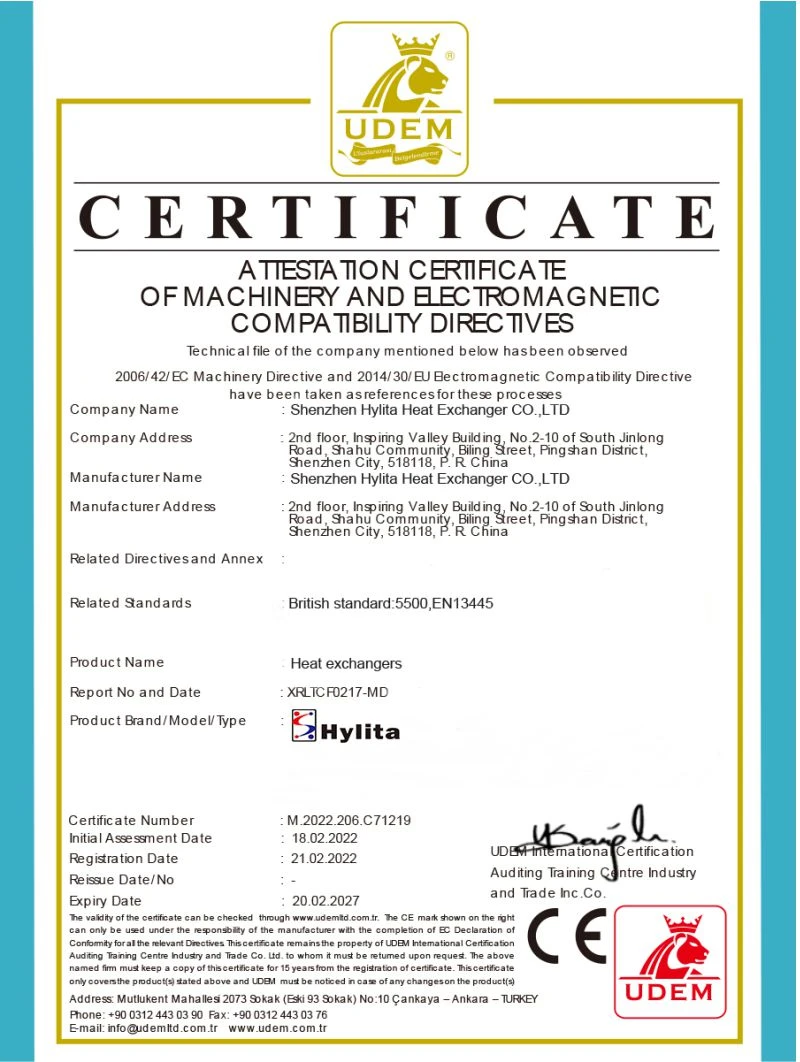

✅ Certifications: ISO 9001:2015, CE, ROHS
✅ Assurance: 100% pressure testing on every unit before shipment
✅ Global Trust: Successfully serving clients in over 50+ countries.
3. Design & Calculation
Q: No drawing? Can you design for me?
A: Yes! We use HTRI software for precise sizing. Just share your operating data (Temp/Flow), and we will provide a professional design for your approval.
4. Minimum Order Quantity (MOQ)
Q: What is the MOQ? Can I place small order please ?
A: Small order is also welcome in our company.
5. Warranty Service
Q: How long is the warranty coverage?
A: We offer flexible warranty options to match your needs:
✅ Standard: 12-Month for all orders.
✅ Extended: Up to 24-Month for eligible customized orders (confirm with our team).
6. Customization
Q: Do you support OEM/ODM and custom branding?
A: Yes, full customization available . We support custom materials (Copper, SS304/316, Cu-Ni) and offer Laser Marking & Nameplates
to feature your logo perfectly.
7. Service Commitment
Q: How do you keep me updated on my order?
A: We ensure 100% Process Transparency
✅ Double Confirmation: All specs verified before production starts..
✅ Visual Updates: We send photos/videos of the manufacturing progress.
✅ Document Review: Draft documents (B/L, Invoice) sent for your approval before final issuance to avoid errors.
8. Main Products
Q: What are your main products ?
A: We mainly produce air heat exchangers, surface coolers, evaporator coils, condenser coil, shell and tube heat exchangers, plate
heat exchangers and other heat exchange equipment and all kind of finned tubes, heat exchange accessories, etc.
