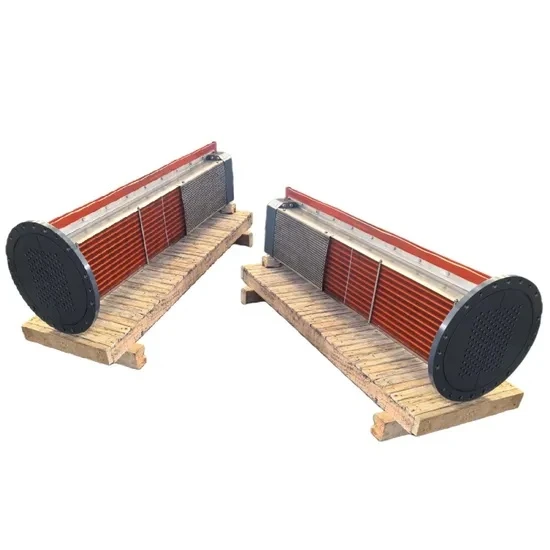

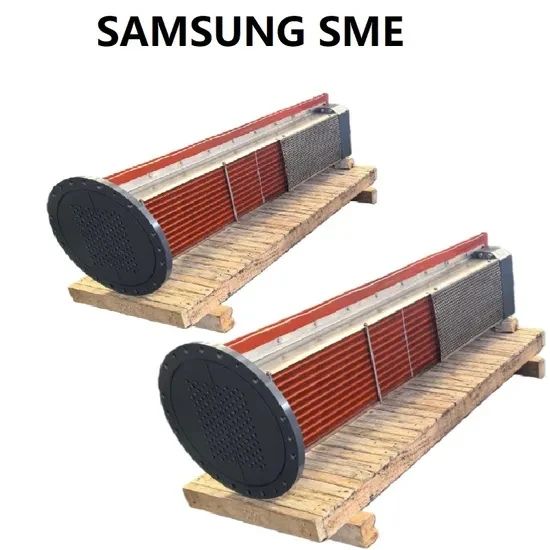

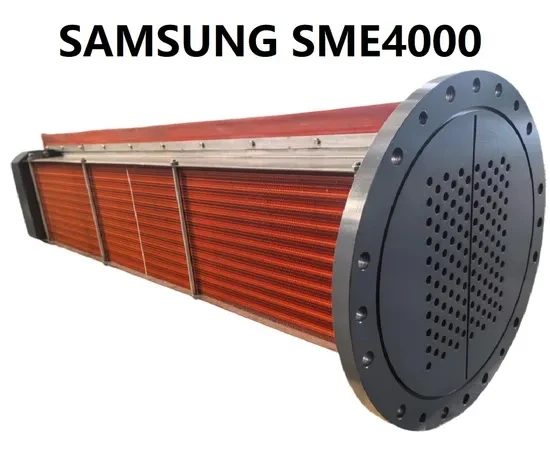

Hanwha Samsung Air Cooler Aftercooler For Air Compressor Sme4000

Hanwha Samsung Air Cooler Aftercooler For Air Compressor Sme4000

Model NO.: SME4000
HS Code: 841990
Specification: 0.4cubic meters
Materials: Copper Tubes, Aluminum Fins or Copper Fins
Application: Cooler, Used for Samsung Centrifugal Air Compressor Sm5000

Product Introduction

Hanwha Samsung Air Cooler Aftercooler for Air Compressor Sme4000

Product Description



High-performance air compressor cooler(heat exchanger)

Our high-performance air compressor cooler(heat exchanger) is engineered for durability, efficiency, and versatility in air compressors,gas compressors,air expanders,air seperation equipments,air dryers,etc.Designed with advanced technology,testing data and robust materials, this cooler ensures superior cooling effection,and power efficiency. Suitable for different industry applications, it delivers exceptional performance in diverse working conditions.



Images reference

Hanwha Samsung Air Cooler Tube Bundle For Air Compressor Sm3000
Hanwha Samsung Air Cooler Tube Bundle For Air Compressor Sm3000

116desc5

Basic Info.



Package Size

0.4cubic Meters

Production Capacity

5000

Principle

Cold Water to Cooler Hot Air

Material

Copper Tubes and Aluminum or Copper Fins

Trademark

Hylita Thermo

Origin

China

Style

Plate Finned Tube Type

Model NO.

SME4000

HS Code

841990

Specification

0.4cubic meters

Materials

Copper Tubes, Aluminum Fins or Copper Fins

Application

Cooler, Used for Samsung Centrifugal Air Compressor Sm5000

Maintanance Means

Removable Tube Bundle

Weight

230kg

Transport Package

Seaworthy Wooden Box

Working Mediums

Between Hot Air/Gas&Cold Water

Certification

CE, ISO, RoHS, ASME, Cutr



Specification



Applications

1.Air/gas compressors: centrifugal air compressors,screw air compressors(use water to cool hot air)

2.Air seperation equipment:cooling down the hot air

3.Refrigeration dryer:cooling down the hot air

4.Air/gas expander:cooling down the hot air

5.Ship engines:cooling down the hot oil

6.Power plant:cooling down the hot air



Applicable senarioes: fuel gas boosting ,oil & gas, carbon capture, hydrogen, air separation, pneumatic tools, chemical/petrochemicals, iron & steel, power generation, mining, and RNG, general manufacturing, natural gas processing.



Key Configurations

Tube sheets: front and rear tube sheets hold all tubes together and reinforce the whole tube bundle assembly

Fins: critical component to expand heat exchange surface and greatly boost heat transfer performance

Top side plate: forms the base for upper and lower sealing while strengthening tube bundle rigidity

Top sealing: guides hot gas to flow in a single direction for efficient heat dissipation

Impingement plate: protects fins from high air pressure while maintaining smooth gas flow

Partition groove: supports partition plates to divide water flow into 2 or more loops

Tubes: internal channel for cooling water to absorb heat from hot air or gas

Shell: main housing for tube bundle installation; separates air passage and water passage

118desc1
Key Configurations

Partition groove:make the base for partition which water passes into two or more;

Tubes:contains flowing water which will take away heat from hot air or gas

Shell: the key part for installing tube bundles, and seperate air passes and water passes.



Materials for choices:

tubesheets: carbon steel, SS, or copper

tubes: SS(stainless steel), copper, or alloy tubes

fins: copper, aluminium, SS or alloy fins;

shell: carbon steel or SS

116zhutu5
116desc3

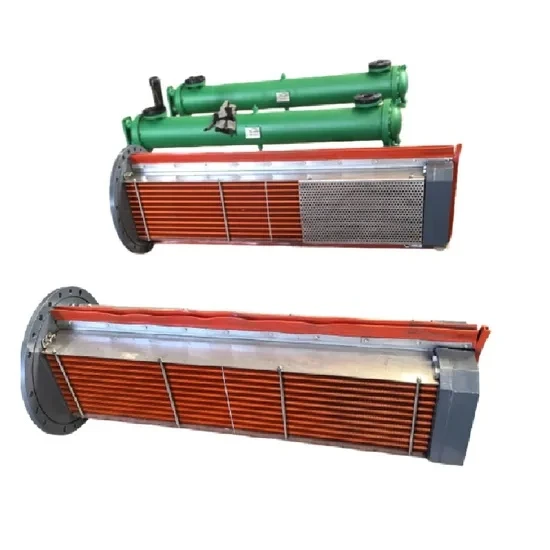

whole view of air cooler bundle
106desc4
side view of coper fins
116desc5

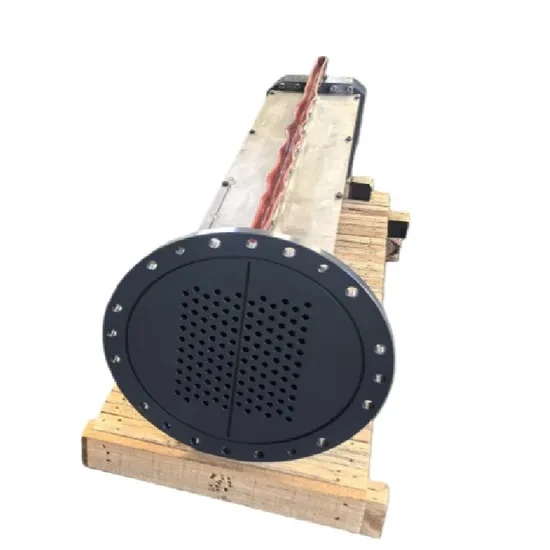

view of back side

Technical Specifications



(Custom configurations available upon request.)

Model

SME3000

SME4000

SME5000

SME6000

Flow Rate

m/hr

3,300~5,300

4,800~8,400

7,500~13,000

13,000~21,000

CFM

1,950~3,100

2,830~5,000

4,800~8,800

7,650~12,100

Power

kW

210~550

310~850

490~1,540

780~2,000

HP

282~740

410~1,140

660~1,800

1,050~2,700

Discharge Pressure

Bar A

3.5~11.4

Psi A

50~165

Dimension(LXWxH)

mm

3,370x1,850x1,800

3,620x2,000x1,800

3,810x2,100x2,000

4,420x2,150x2,000

inch

133x73x71

143x79x71

150x83x79

173x85x79

Weigth

Kg

7,400

10,100

12,100

15,500



Drawings & Dimensions



Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.



116desc6



After Sales Service



  • Standard Warranty: 12 months from operation date or 18 months after shipment, whichever comes first
  • Extended Warranty: Optional extended warranty up to 36 months
  • Technical Support: 24/7 technical support & spare parts supply
  • Training: On-site or remote training for equipment operation and maintenance



Company Profile



106desc7



106desc8
Shenzhen Hylita Heat Exchanger Co.,Ltd.

Shenzhen Hylita Heat Exchanger Co. Ltd. is a professional heat exchanger manufacturer, specialized in air coolers and oil coolers suitalble for big brand air compressors, such as Atlas Copco, Ingersoll Rand,Cameron, IHI-sullair, Samsung(Hanwha), FS-Elliott,CompAir, SeAH, Hitachi, kobelco,etc.

Besides, we can also design and fabricate specific heat exchangers basing on customer requests, providing with certificate such as PED, ASME, CU-TR, DOSH, IBR and MOM, backed by R&D innovation and strict quality control. Our products are widely applied in air compressors,air separation equipments, air/gas purification equipments and compressor waste heat recovery systems.



106desc9

Why Choose Us?

Full OEM & ODM manufacturing capability

Competitive factory price and bulk order discount

Fast feedback, quotation and customized solution delivery

Complete certification portfolio: ASME, CE, CU-TR, DOSH and more
