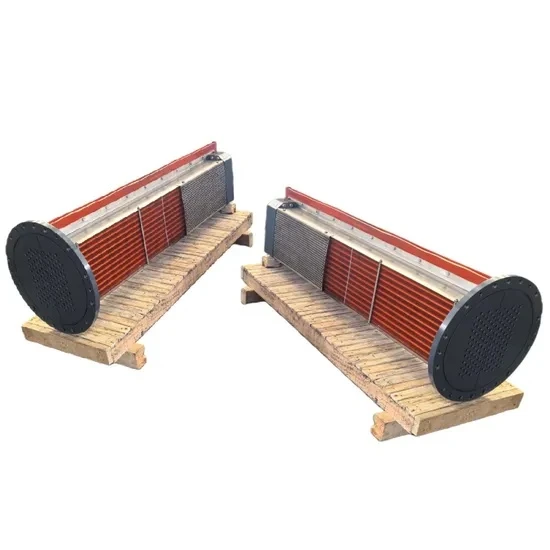

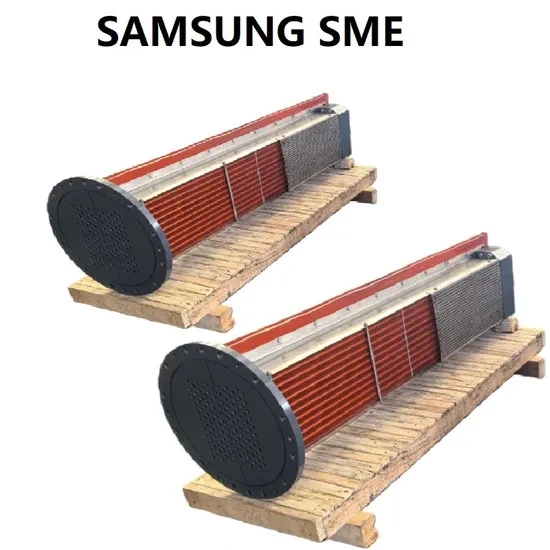

Hanwha Samsung Air Cooler Intercooler for Air Compressor Sme3000
Basic Info.
|
Production Capacity |
5000 |
|
Principle |
Cold Water to Cooler Hot Air |
|
Material |
Copper Tubes and Aluminum or Copper Fins |
|
Specification |
0.45cubic meters |
|
Package Size |
0.35cubic Meters |
|
Style |
Plate Finned Tube Type |
|
Trademark |
Hylita Thermo |
|
Origin |
China |
|
HS Code |
841990 |
|
Materials |
Copper Tubes, Aluminum Fins or Copper Fins |
|
Application |
Cooler, Used for Samsung Centrifugal Air Compressor Sm5000 |
|
Model NO. |
SME3000 |
|
Weight |
230kg |
|
Maintanance Means |
Removable Tube Bundle |
|
Transport Package |
Seaworthy Wooden Box |
|
Working Mediums |
Between Hot Air/Gas&Cold Water |
|
Certification |
CE, ISO, RoHS, ASME, Cutr |
Product Description
High-performance air compressor cooler(heat exchanger)
For use in air compressors, gas air expanders, separation equipment, dryers, and other applications, our high-performance air compressor cooler (heat exchanger) is designed for robustness, efficiency, and adaptability.This cooler guaranties excellent cooling effectiveness and power efficiency thanks to its design, which incorporates cutting-edge technology, testing data, and sturdy materials. It provides outstanding performance under a variety of working circumstances and is appropriate for various industry applications.
Specification
Applications

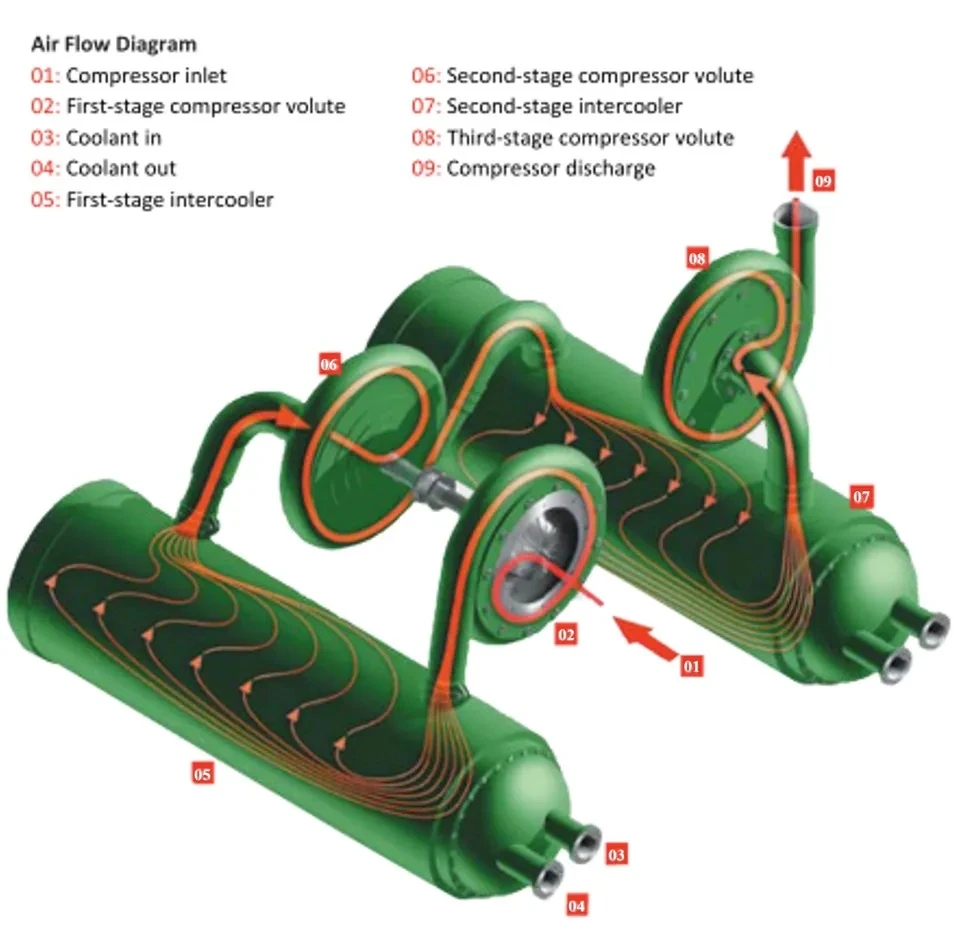

1.Air/gas compressors: centrifugal air compressors,screw air compressors(use water to cool hot air)
2.Air seperation equipment:cooling down the hot air
3.Refrigeration dryer:cooling down the hot air
4.Air/gas expander:cooling down the hot air
5.Ship engines:cooling down the hot oil
6.Power plant:cooling down the hot air
Applicable senarioes: fuel gas boosting ,oil & gas, carbon capture, hydrogen, air separation, pneumatic tools, chemical/petrochemicals, iron & steel, power generation, mining, and RNG, general manufacturing, natural gas processing.
Key Configurations

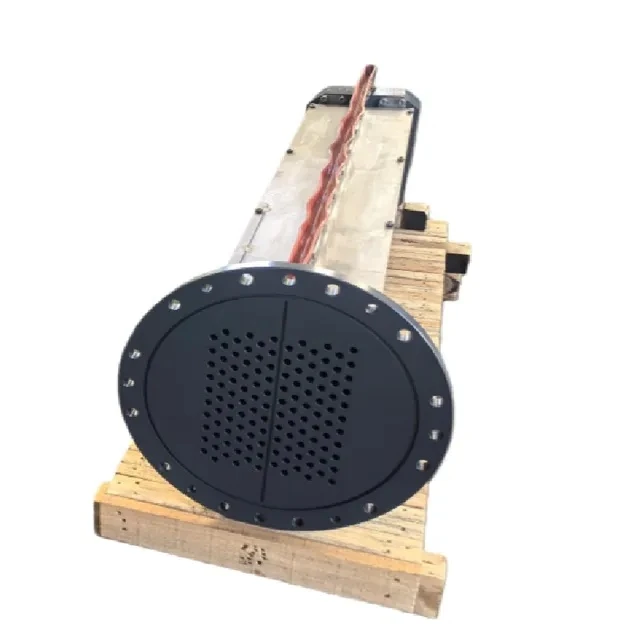

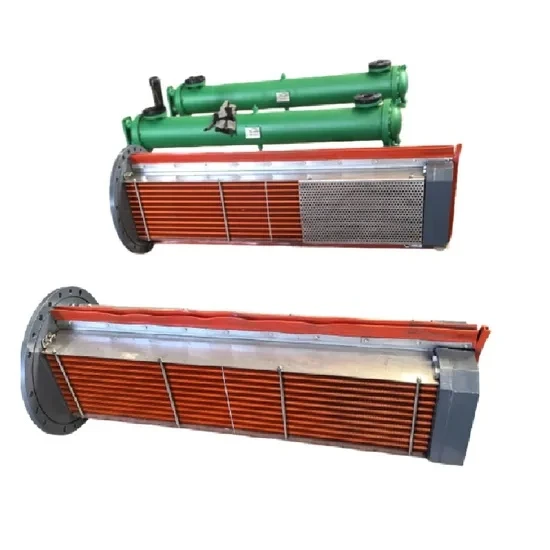

Tube sheets:front tube sheet and back tubesheet which passed through tubes, and strengthen the tube bundle in whole one part;
fins:the key element to enlarge heat transfer areas and improve heat transfer efficiency exponentially;
(top) side plate:make the base for top and down sealings andincrease the tube bundle strength;
(top)sealing:make sure hot air/gas goes smongthly in one way, ensuring hot air cool down effiently;
Impingement plate:protecting the fins from strong air pressure and meanwhile hot air/gas passes smoothly

Key Configurations

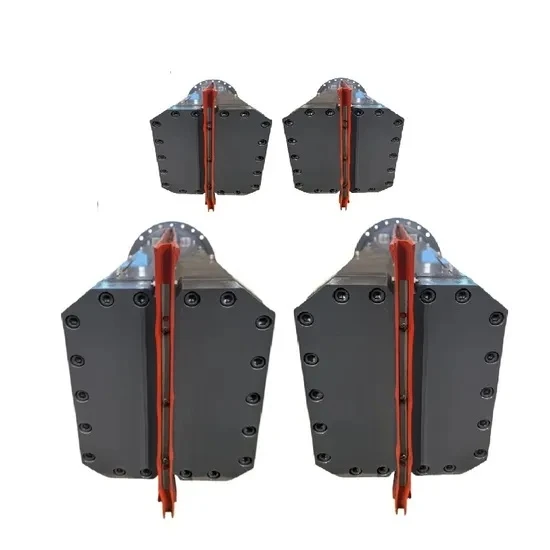

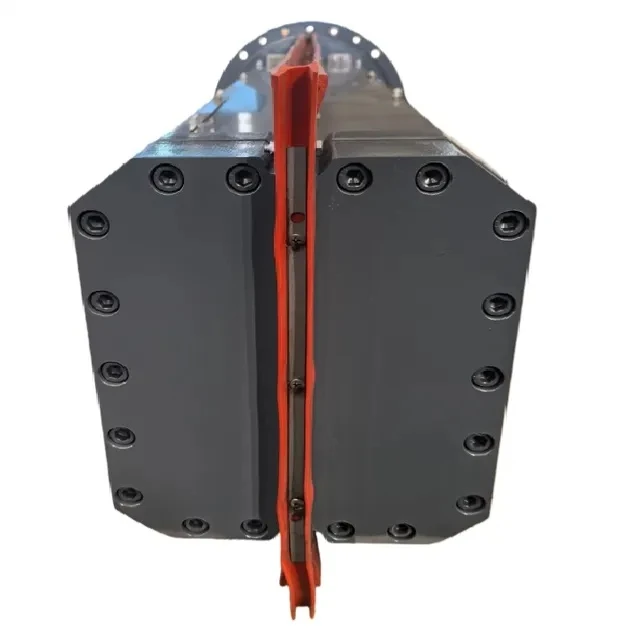

Partition groove:make the base for partition which water passes into two or more;
Tubes:contains flowing water which will take away heat from hot air or gas
Shell: the key part for installing tube bundles, and seperate air passes and water passes.
Materials for choices:
tubesheets: carbon steel, SS, or copper
tubes: SS(stainless steel), copper, or alloy tubes
fins: copper, aluminium, SS or alloy fins;
shell: carbon steel or SS




Technical Specifications
(Custom configurations available upon request.)
|
Model |
SME3000 |
SME4000 |
SME5000 |
SME6000 |
|
|
Flow Rate |
m/hr |
3,300~5,300 |
4,800~8,400 |
7,500~13,000 |
13,000~21,000 |
|
CFM |
1,950~3,100 |
2,830~5,000 |
4,800~8,800 |
7,650~12,100 |
|
|
Power |
kW |
210~550 |
310~850 |
490~1,540 |
780~2,000 |
|
HP |
282~740 |
410~1,140 |
660~1,800 |
1,050~2,700 |
|
|
Discharge Pressure |
Bar A |
3.5~11.4 |
|||
|
Psi A |
50~165 |
||||
|
Dimension(LXWxH) |
mm |
3,370x1,850x1,800 |
3,620x2,000x1,800 |
3,810x2,100x2,000 |
4,420x2,150x2,000 |
|
inch |
133x73x71 |
143x79x71 |
150x83x79 |
173x85x79 |
|
|
Weigth |
Kg |
7,400 |
10,100 |
12,100 |
15,500 |
Drawings & Dimensions
Dimensional diagrams and detailed CAD drawings can be downloaded here or upon request. To satisfy certain project requirements, our technical team can provide customized designs.

After Sales Service
- Standard Warranty: 12 months from the date of operation or 18 months from delivery, whichever occurs first.
- Extended Warranty: An optional 36-month coverage period.
- Service support includes a supply of spare parts and round-the-clock technical help.
- Training: Remote or on-site instruction on operations and maintenance.
Company Profile


Shenzhen Hylita Heat Exchanger Co.,Ltd.
Shenzhen Hylita Thermal Equipment Co. Ltd. is a professional heat exchanger manufacturer, specialized in air coolers and oil coolers suitalble for big brand air compressors, such as Atlas Copco, Ingersoll Rand,Cameron, IHI-sullair, Samsung(Hanwha), FS-Elliott,CompAir, SeAH, Hitachi, kobelco,etc.
In addition, we can design and manufacture certain heat exchangers in response to customer needs, including certifications like PED, ASME, CU-TR, DOSH, IBR, and MOM, supported by rigorous quality control and R&D innovation. Our products are widely used in compressor waste heat recovery systems, air separation equipment, air/gas purification equipment, and air compressors.

Why Choose Us?
OEM/ODM capabilities
Competitive pricing & bulk discounts
Faster feedback, quotation, solution than competitor
Certified with full Certificates such as ASME, CE, CU-TR, DOSH, etc.
Other Products
heat exchanger for process gas compressor
Water cooler for refrigerant dryer
Ship engine intercooler(air cooler, oil cooler)
Power plant air cooler,oil cooler
heat exchanger for waste heat recovery plant/system
