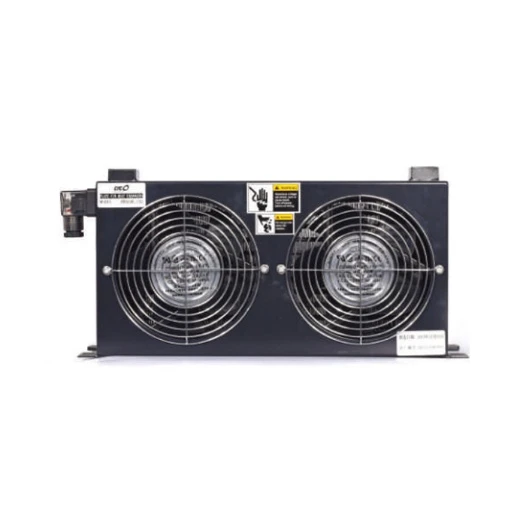

Hydraulic Air Cooled Oil Cooler Double Dc Fan Aluminum Plate-fin Heat Exchanger
Highlights at a glance:
The cooler core uses aluminum fin fins, and the spoiler design slows down the flow rate of the fluid to optimize the heat dissipation efficiency Used in the oil return circuit of the oil pressure system, but the best way is to install a bypass pressure relief circuit or an
explosion-proof device and use an independent circulating cooling circuit.
1.Be made up of aluminum alloy material with light weight, good seismic intensity, high heat transfer efficiency
2. Safety. the water and oil of system will not be mixed and fatally damage system even though cooler burst.
3. Energy-saving and low cost.
4. Compact structure, small volume, convenient installation.
5. Longer service life and high working pressure.low failure rate.
6.Appropriate fluid temperature: 10℃~180℃, appropriate for ambient temperature: -40℃ ~100℃.
Mainly use for:
General hydraulic and lubricating systems, gearbox (large reduction box), and so on, which work in indoor environment.

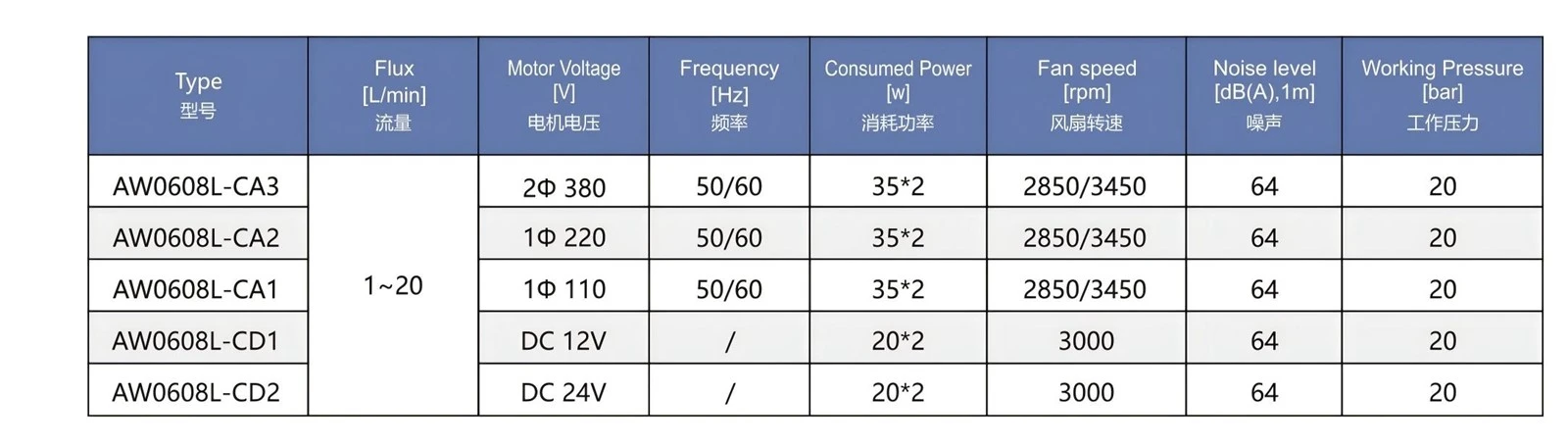

Technical data:
- Maximum static pressure:16 Bar (higher pressure options can be custom made)
- Rated inlet tempreture:70℃ (below 300℃ can be custom made)
Features:
- Meet the requirements of explosion-proof grade EXdI,EXdII;
- Meet the MA explosion-proof requirements;
- Motor selection Nanyang Wete or the same class brand;
- Experience in nuclear power plant lubrication cooling application;
- Standard with built-in pressure bypass valve.
Radiator material:
Copper, stainless steel can be custom made

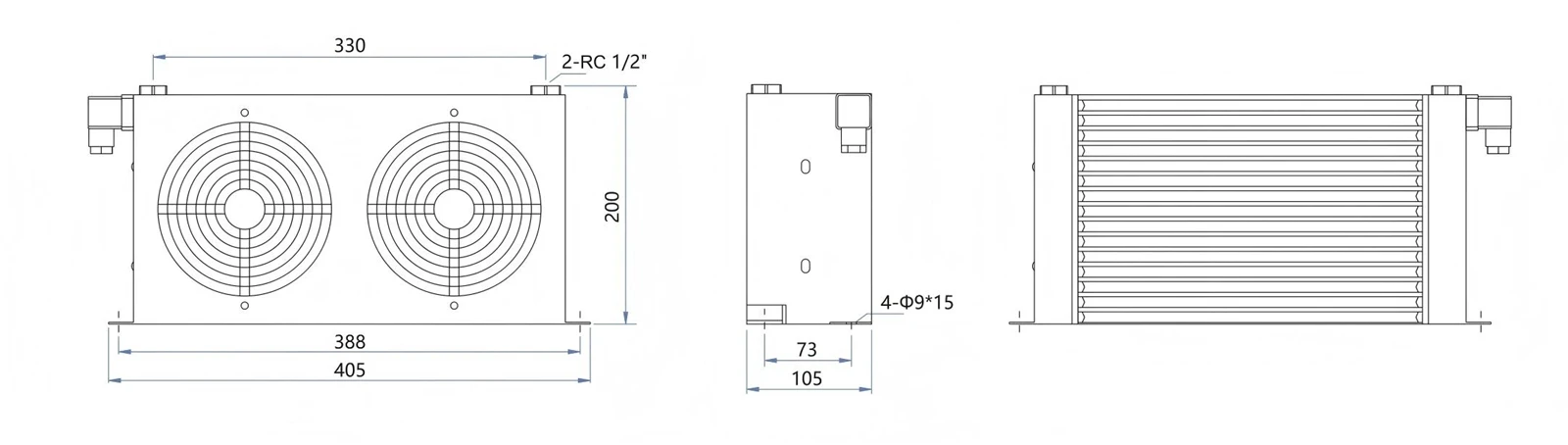

Dimensions:
Make sure you can select the right cooler, please contact us
